Understanding the correct method for connecting servo motor OEM pinouts and connectors is essential to ensure a reliable cable design that provides accurate power transmission, feedback, and performance in industrial automation applications. The challenge for cable designers is to interpret the often complex specifications from the OEM and convert them into motionable, signal integrity, electromagnetic compatibility (EMC) and mechanically durable assemblies.
With 20+ years of manufacturing high-flex servo and motor cables, Hulk Electric has been able to help countless OEM machine builders and machine integrators ensure that every pin, shield, and conductor fit flawlessly with the motor and drive specs. This guide provides some practical tips to help cable designers determine how to get the best assembly from the Pinout tables, connector types and best practices.
Why OEM Pinouts and Connector Specs Are Non-Negotiable
Servo motor cables perform multiple critical functions: three-phase power for torque and speed, brake control, encoder or resolver feedback for position accuracy, and possibly temperature sensors or communication lines. If the pin mapping is incorrect, it can cause drive faults, erratic motion or damage to equipment.
There are OEM pinouts to ensure full compatibility between particular families of motors and matching motor drives. Failure to service them could negatively affect the entire motion control system. In robotics, CNC machines and automated production lines, where downtime can be expensive, proper handling guarantees reliable operation.
Understanding OEM Servo Motor Connector Types

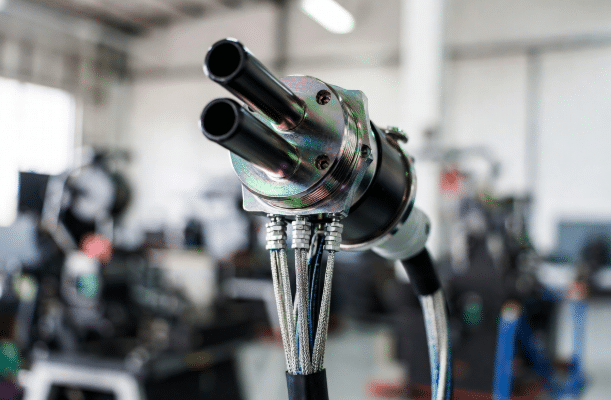

Power Connectors on Servo Motors
Power connectors on servo motors are usually heavy duty, circular or rectangular in shape and adequate to carry high current for a three phase supply plus protective earth. Many also feature brake or auxiliary connections in the same housing. These connectors should be able to handle the necessary load, ensure electrical insulation, and meet safety and performance standards regarding the creepage distance between the different parts.
Feedback Connectors (Encoders and Resolvers)
Feedback connectors are used to carry critical signals like Hall commutation signals (U/V/W), incremental/absolute encoder channels (A/B/Z), sine/cosine pairs and data lines. The most common variations include 9 pin or 15 pin types with the pin function depending on the motor series and the type of encoder (incremental or absolute). Preserving differential pairing is a must for cable designers in order to ensure signal integrity and noise immunity.
Hybrid and Multi-Function Connectors
Hybrid connectors, such as the M23 or M40 designs, are becoming more common today and pack power, signal and data connectors into a single, smaller connector. These allow for efficient wiring in a distributed drive architecture with the capability to carry three-phase power along with communication lines. In this context, pinouts are crucial for ensuring power delivery and data transmission at high speeds.
Reading OEM Pinout Tables and Wiring Diagrams
OEM documentation offers comprehensive tables with signal names, pin numbers, signal functions and wire colour recommendations. Important groups are power phases, differential feedback pairs, brake lines, supply voltages and commons.
Signal Names, Functions and Groups
Differential pairs (A+/A-, B+/B-, data+/data-) must be grouped together and twisted and shielded in the same manner. Reserved pins should be left unconnected unless otherwise specified by the OEM for future expansion.
Wire Color References and Internal Wiring
Internal motor wiring can be in colour, but external servo cables should be in a consistent colour for easier troubleshooting. These mappings can be documented to help in field service and manufacturing repeatability.
Translating OEM Pinouts into Cable Design

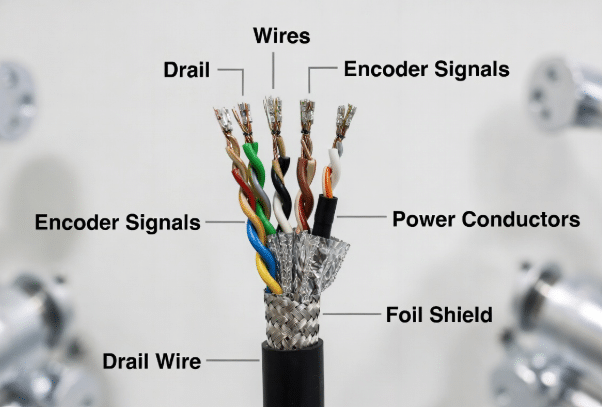

Mapping Function to Conductor and Pair Structure
Each one of the conductors is mapped onto a function.A function is mapped to each one of the conductors.
Use the proper conductors for each signal in your cable, with twisted pairs for feedback signals and shielded cores for sensitive signals. This maintains the OEM’s electrical properties.
Shielding and Drain Wire Connections
For EMC performance, it is necessary to have a proper termination of the shield at connectors, which is usually achieved with dedicated termination pins or 360° clamps. Ensure that the monitoring is done exactly as per the OEM’s instructions to avoid feedback noise and alarm conditions.
Brake and Auxiliary Circuits
Usually, brake circuits are 24V DC systems. Make sure pin assignment and isolation is correct, which prevents safety problems. Other auxiliaries such as temperature sensors, also need dedicated wiring paths.
Connector Mechanics and Assembly Considerations
Choosing Connector Style and Contact Technology
Choose solder-cup, crimp or terminal-type contacts according to the ability to assemble, current rating and environmental requirements. Housings must be a perfect fit for both the motor and drive sides (such as circular or Tyco AMP type).
Strain Relief, Shield Termination and Backshells
In high flex applications, conductor fatigue is a specialty at Hulk Electric that is avoided by proper strain relief. The cable jacket and braid should be fastened to the backshell and clamp so as not to harm any components.
Drive Compatibility and Ecosystem Awareness
Connector variants have a direct effect on the compatibility of particular families of drives. Some feedback connectors are compatible with newer drives and others with legacy drives, for instance. If possible, use OEM system cables as a proven benchmark.
Common Mistakes Cable Designers Should Avoid
- Making assumptions about pinouts for different series of motors or encoders.
- Failure to maintain connections between shields and drains.Failure of EMC connections due to neglect of shield/drain connections.
- Not using specially designed motor cables with appropriate shielding of auxiliary circuits.
Practical Checklist for Working With OEM Pinouts
- Get the newest motor and drive manuals.
- Recognize any type of connector (power/feedback/hybrid).
- Maintain differential pairs and reserved pins while maintaining map signals.
- Design protection, strain alleviation and assembly routing.
- Confirm compatibility of all drive motors.
- Record all for production and maintenance.
It takes finesse to work with servo motor OEM pinouts and connectors, but it’s essential to respect the original engineering intent. Designers can design reliable, high-performance motion systems by following OEM specifications and using high-quality, custom servo cables.
