Cable Testing & Laboratory Capabilities
A cable should prove its performance before it becomes part of your machine.
At Hulk Electric, testing is integrated into cable development and manufacturing. Our in-house laboratory supports electrical verification, repeated-motion endurance testing, torsion evaluation, material and mechanical checks, environmental validation, and application-specific test programs for industrial cables.
Whether the cable will operate inside a drag chain, move through a robotic arm, connect a servo system, transmit industrial data, or withstand elevated temperatures, our engineering team develops the validation plan around the cable construction and its real operating conditions.
We Test More Than the Finished Cable
Reliable cable performance is influenced by conductor design, stranding, insulation, shielding, jacket materials, cable geometry, bend radius, motion pattern, temperature, installation conditions, and many other variables.
That is why testing at Hulk is not limited to final inspection.
Validation can begin during material selection and prototype development, continue through engineering verification, and extend into production quality control. Test results give our engineers practical data for adjusting conductor construction, insulation and jacket materials, shielding configurations, dimensions, and other design parameters before a cable enters stable production.
For custom projects, this creates a closed engineering loop:
-
01Design
-
02Prototype
-
03Test
-
04Analyze
-
05Improve
-
06Re-Test
-
07Production
Testing Capacity Built for Industrial Cable Development
Our laboratory supports routine production verification as well as specialized testing for custom cable projects.
Advanced Testing Instruments
Equipment supporting electrical, mechanical, motion and product-specific validation.
Types of Tests
A broad testing scope covering different cable constructions and application requirements.
Electrical Measurements Annually
Ongoing verification throughout development and production.
Double-Loop Motion Endurance Tests Per Year
Repeated-motion testing for flexible and continuous-flex cable designs.
Customized Tests
Application-oriented test programs developed around specific customer requirements.
Testing capacity is only valuable when the results lead to better engineering decisions. Our laboratory works closely with cable design, materials, manufacturing and quality teams so that test data can be translated into measurable product improvements.
Verify the Electrical Fundamentals Before the Cable Goes Into Service
Electrical performance starts with consistency.
Depending on the cable construction, intended application and applicable specification, electrical verification may include conductor resistance, insulation resistance, continuity, voltage withstand checks and other product-specific electrical measurements.
These tests help verify that conductor processing, insulation, shielding, assembly and manufacturing remain within the required parameters.
Electrical testing is especially important for cables used in:
- Servo and motor systems
- Sensors and actuators
- Industrial automation equipment
- Control and instrumentation
- Industrial Ethernet networks
- Fieldbus communication
- Custom machine wiring

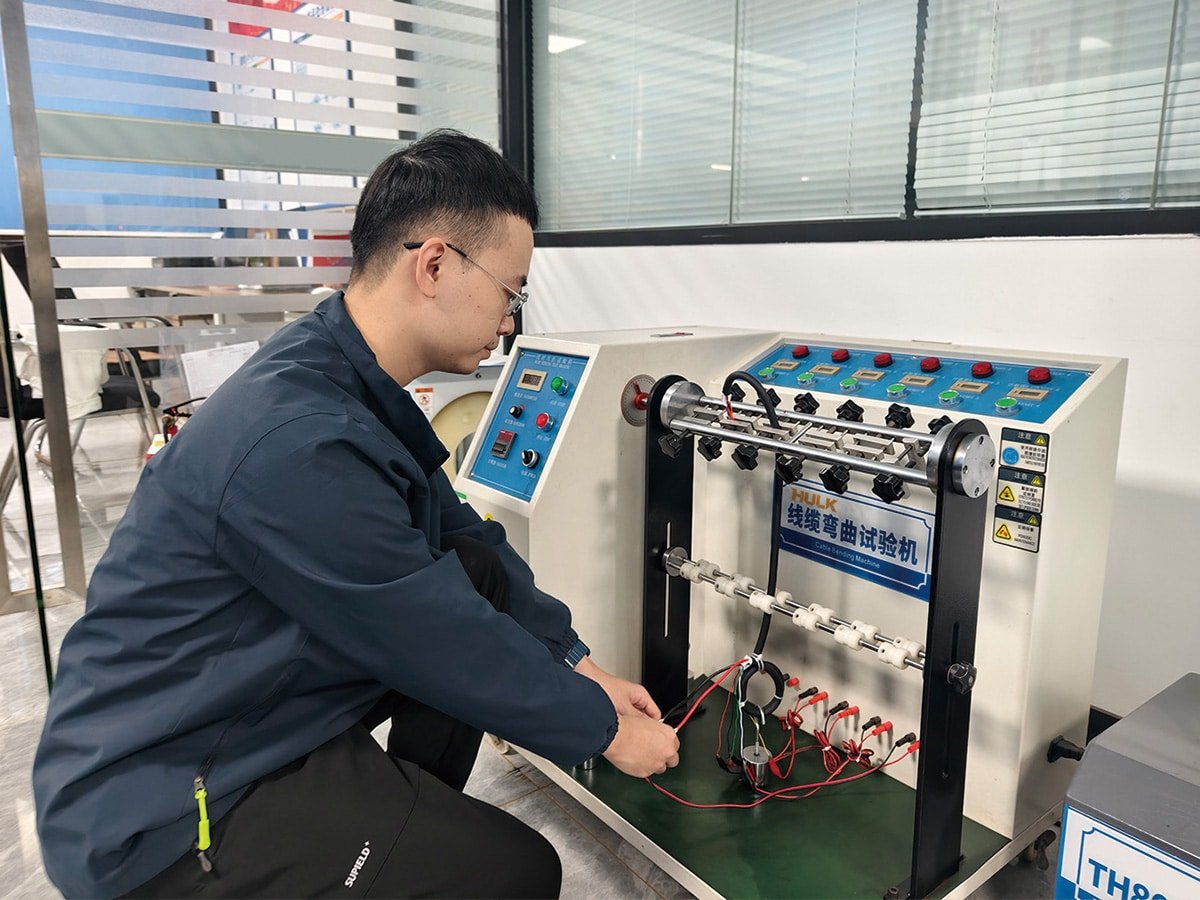

For motion cables, electrical monitoring can also be combined with endurance testing to evaluate whether repeated movement affects cable continuity or electrical performance over time.

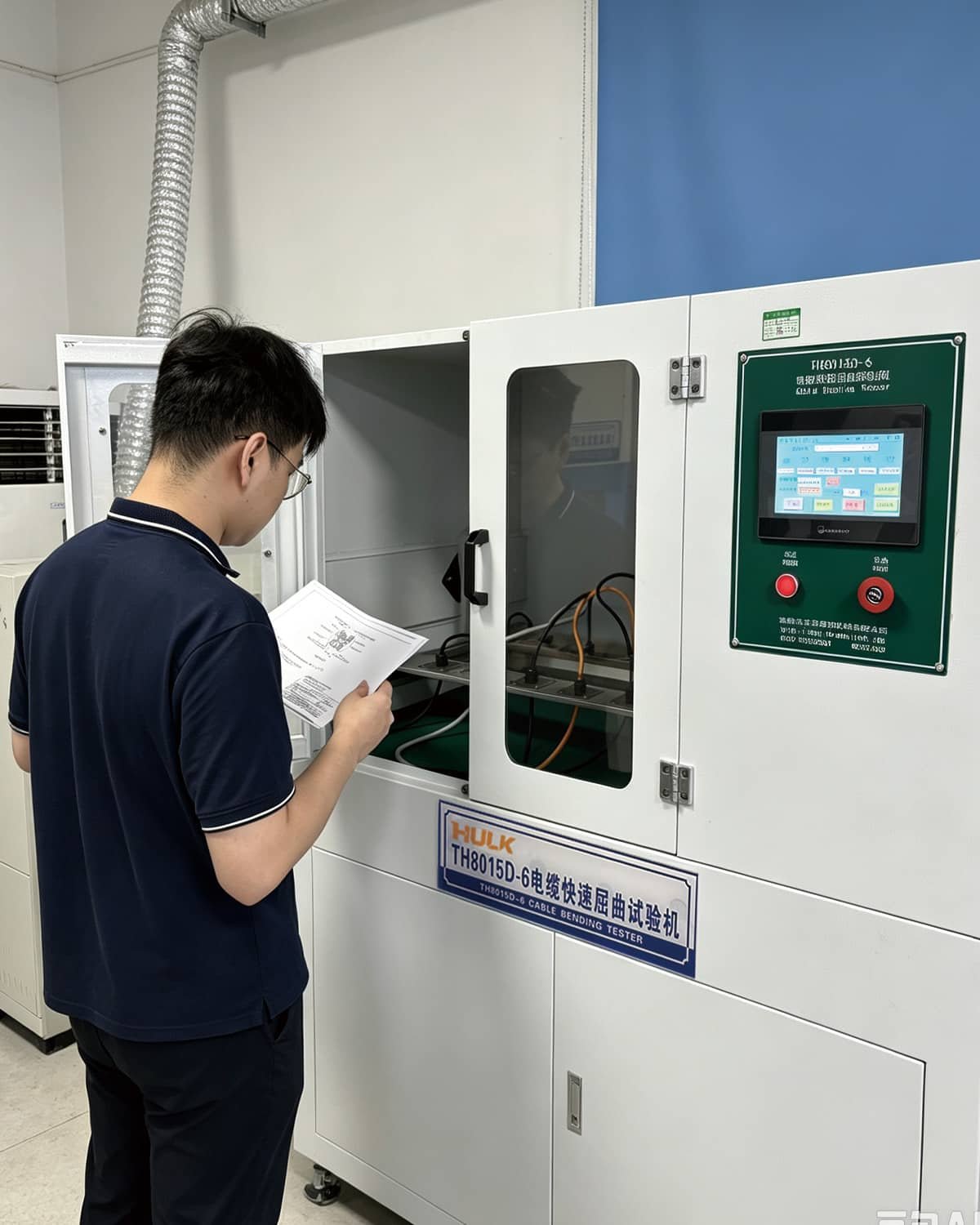

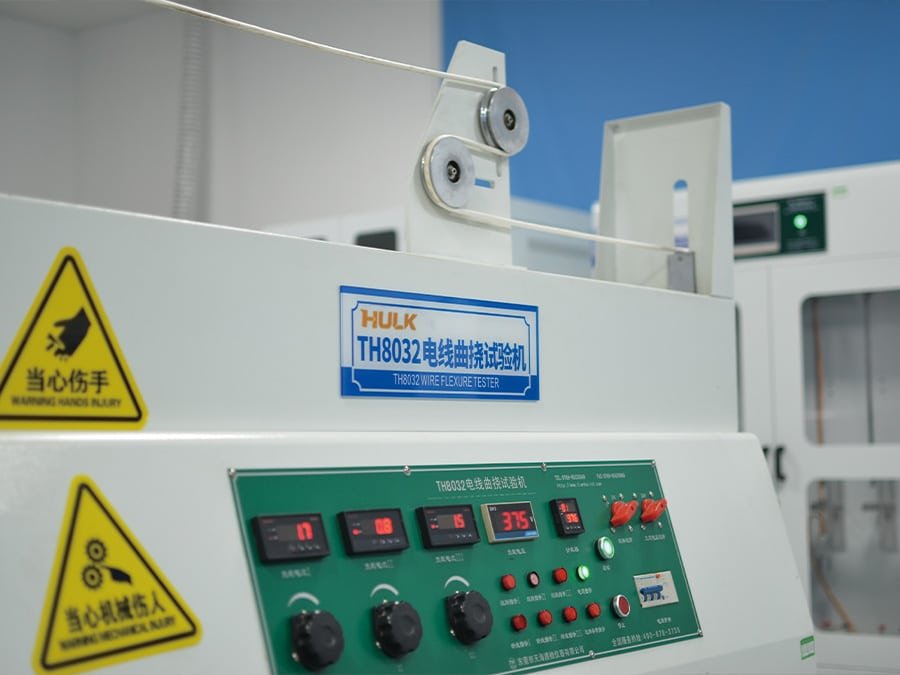

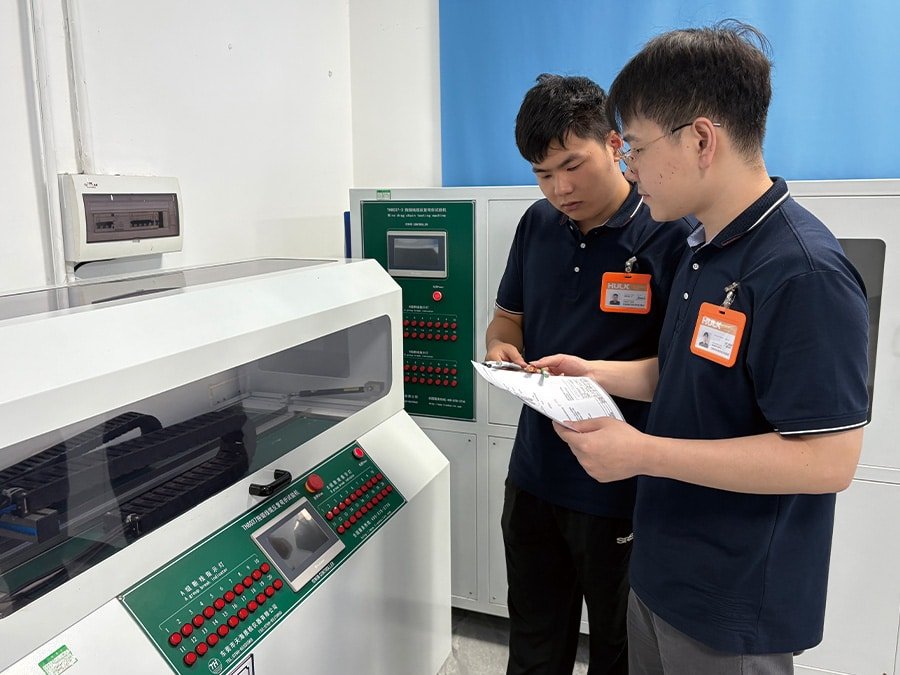

Simulating Repeated Motion Before It Happens in Your Machine
A cable that bends once is very different from a cable that must bend continuously for months or years.

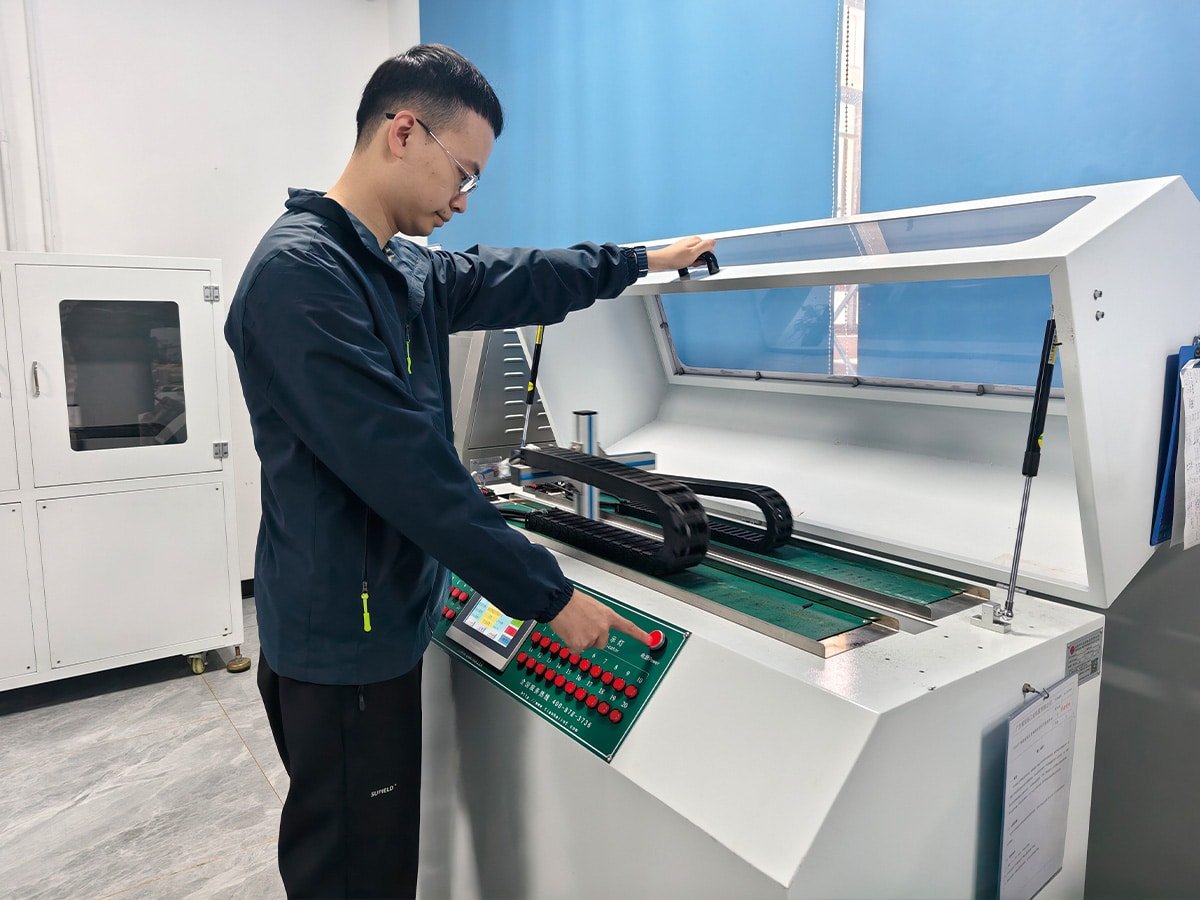

High-flex and drag chain cables are subjected to repeated mechanical stress at the conductor, insulation, shielding and jacket. Small weaknesses in cable construction may only become visible after thousands or millions of movements.
Hulk uses repeated-motion testing to evaluate cable constructions intended for continuous-flex applications.
Test conditions can be developed around important operating parameters such as:
Bend Radius
The bending radius used during testing should reflect the intended installation and cable construction.
Travel Distance
Different machine strokes create different movement patterns and mechanical loads.
Motion Frequency
Higher repetition rates can significantly change the stress experienced by the cable.
Cycle Requirement
Testing can be planned around the endurance target defined for the project.
Cable Construction
Conductor stranding, insulation, shielding, fillers and jacket design all influence flex performance.
Motion Pattern
Linear movement and repeated bending conditions should reflect the intended machine application.
Rather than assigning one generic flex-life number to every cable, our engineers evaluate the complete application before establishing an appropriate test method.
This capability directly supports our High-Flex Cable Engineering and custom drag chain cable development.

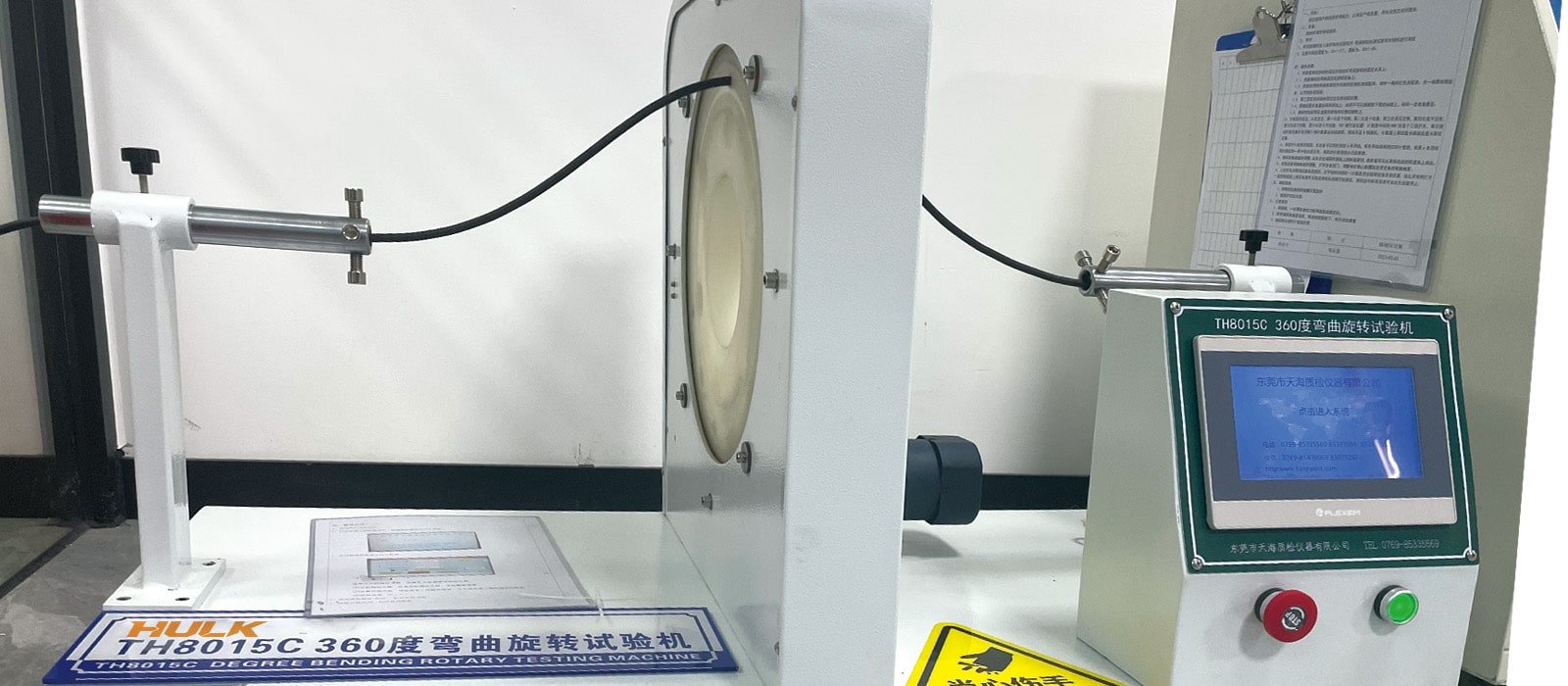

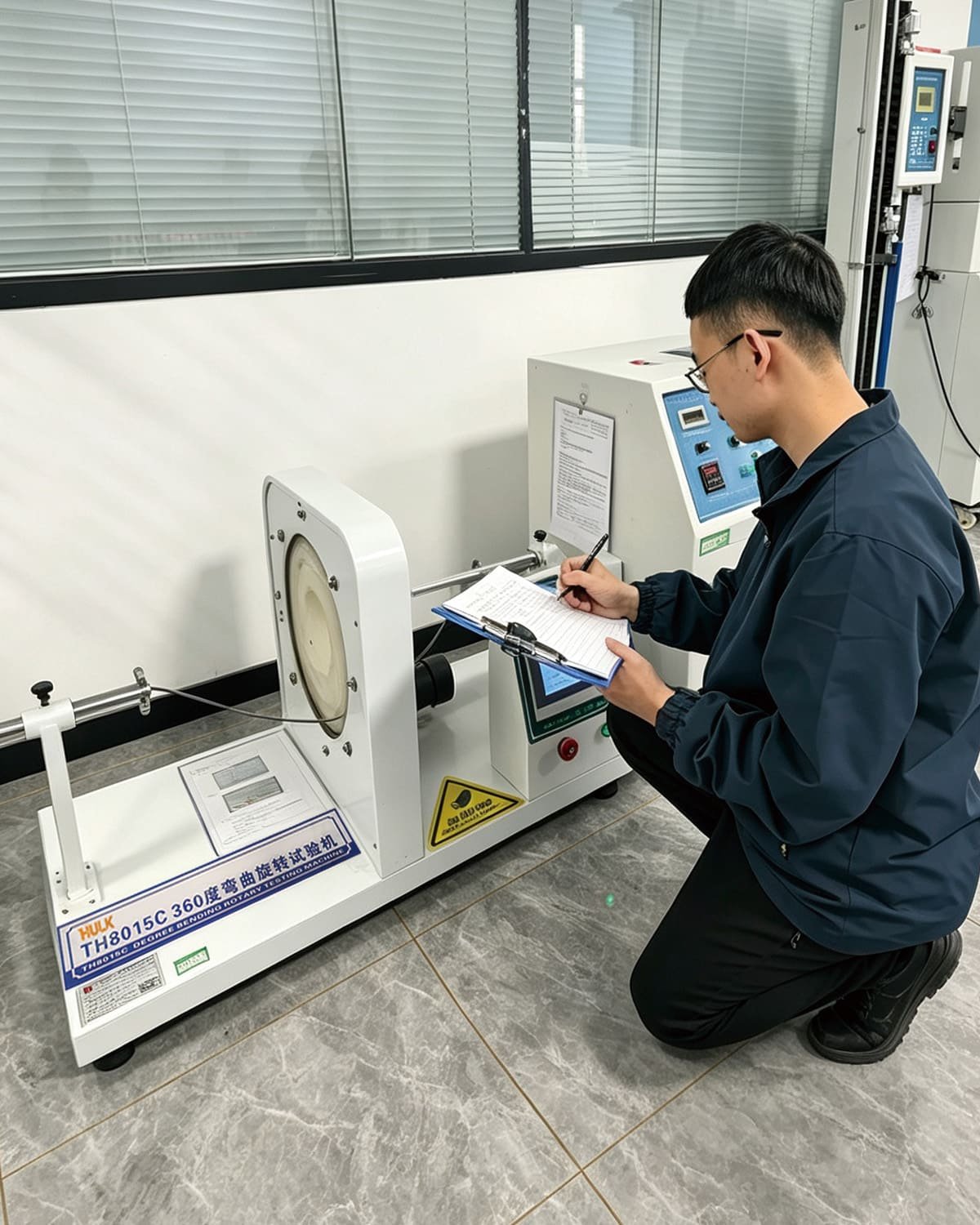

Cables for Robotic Motion Need More Than Bending Resistance
Robotic cables often experience bending, twisting and changing mechanical loads at the same time.
Six-axis robots, collaborative robots, automated handling systems and other multi-axis equipment can place repeated torsional stress on conductors, shielding layers and jacket materials.
For robot and torsion cable development, validation can be configured around parameters such as:
- Torsion Direction
- Torsion Angle
- Reversing Movement
- Cycle Frequency
- Cable Length Under Torsion
- Electrical Continuity
- Mechanical Loading
- Required Endurance Target
The purpose is not simply to determine whether a cable can twist. It is to understand whether the complete cable construction remains electrically and mechanically stable throughout repeated torsional movement.
Test findings can be fed back into conductor design, shielding structure, material selection and overall cable geometry.
Learn more about our Robot & Torsion Cable Technology for multi-axis motion applications.
Cable Performance Depends on More Than Conductors
The mechanical and environmental behavior of insulation and jacket materials can have a major impact on cable service life.
Depending on the product specification and application, validation may evaluate properties associated with:
Mechanical Performance
Cable construction, flexibility, dimensional stability and material behavior under mechanical stress.
Insulation & Jacket Performance
Verification of material characteristics required for the intended cable construction.

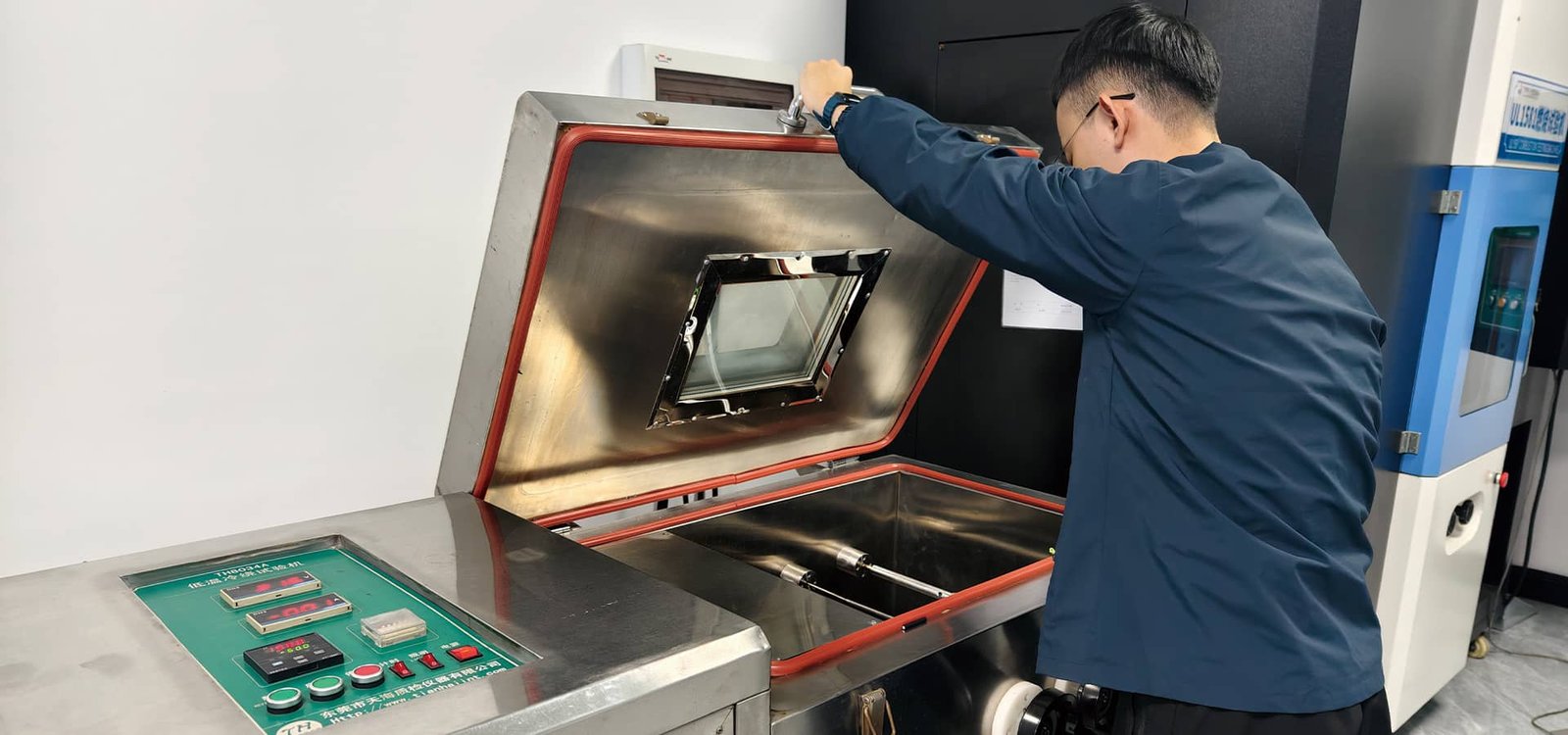

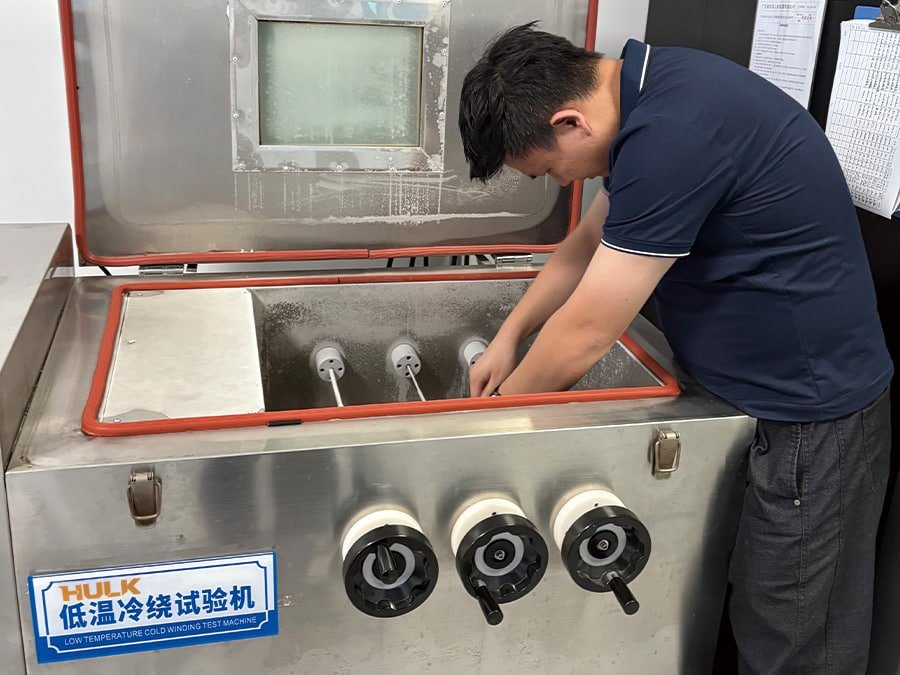

Temperature Performance
Evaluation under temperature conditions relevant to the specified cable and application.

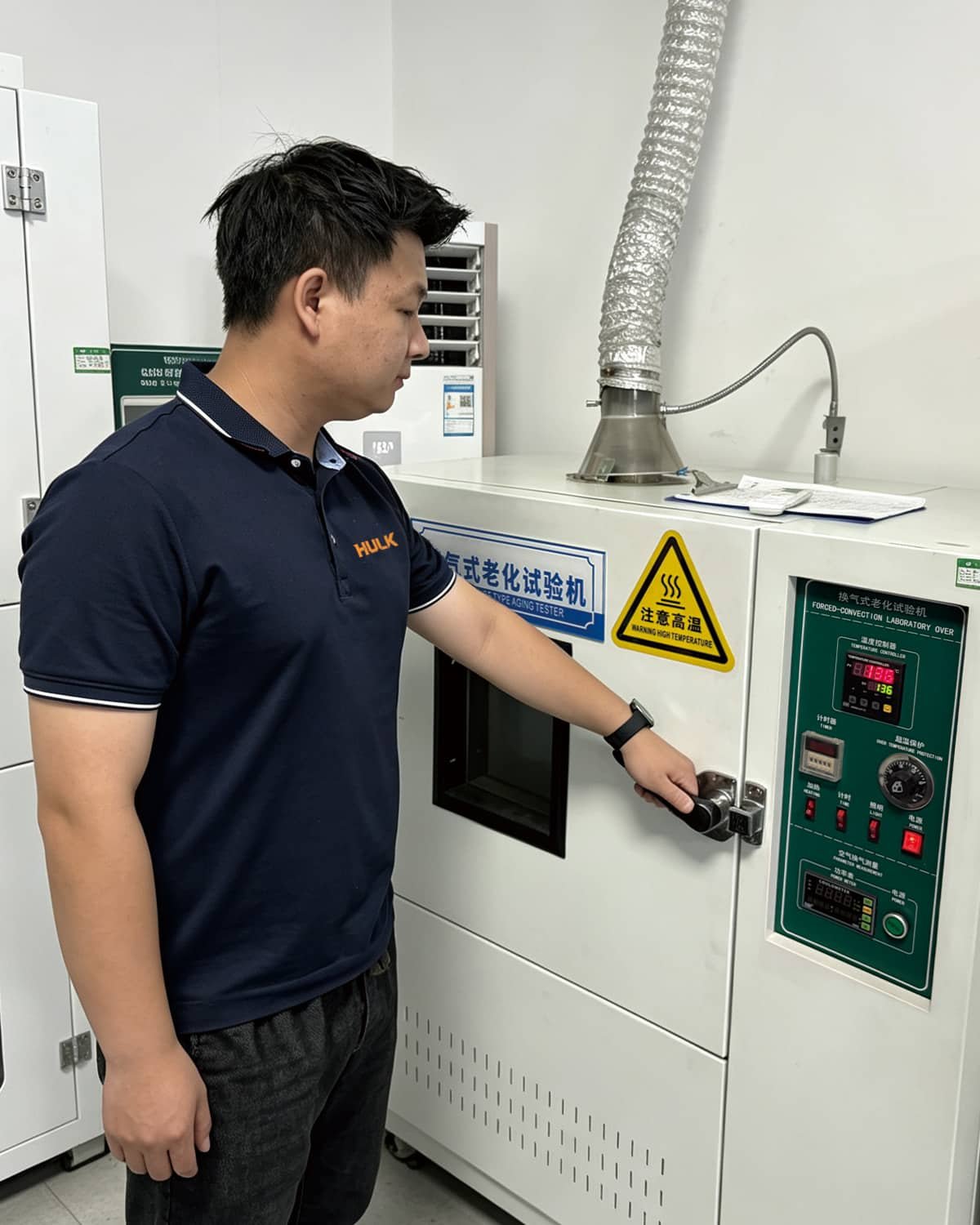

Aging Behavior
Assessment of how materials and cable components respond to defined aging conditions.

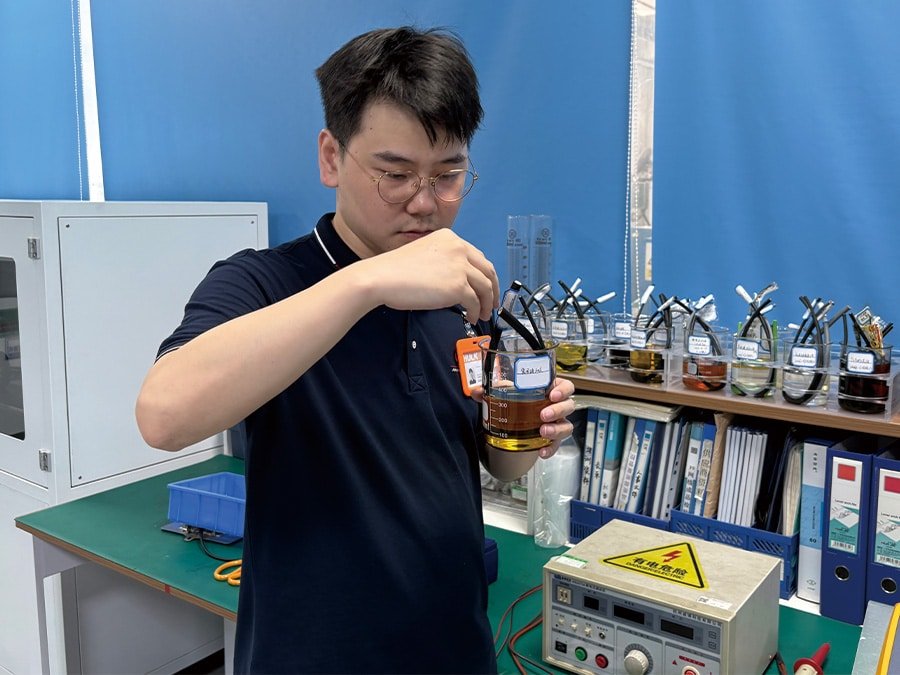

Application Environment
Additional verification can be incorporated when the cable will operate in demanding industrial environments.
Material selection and laboratory validation work together. A compound that performs well in a static cable may behave very differently when exposed to continuous bending, torsion, elevated temperature or other application-specific stresses.
That is why our Material Selection process considers both material properties and how the finished cable will actually be used.

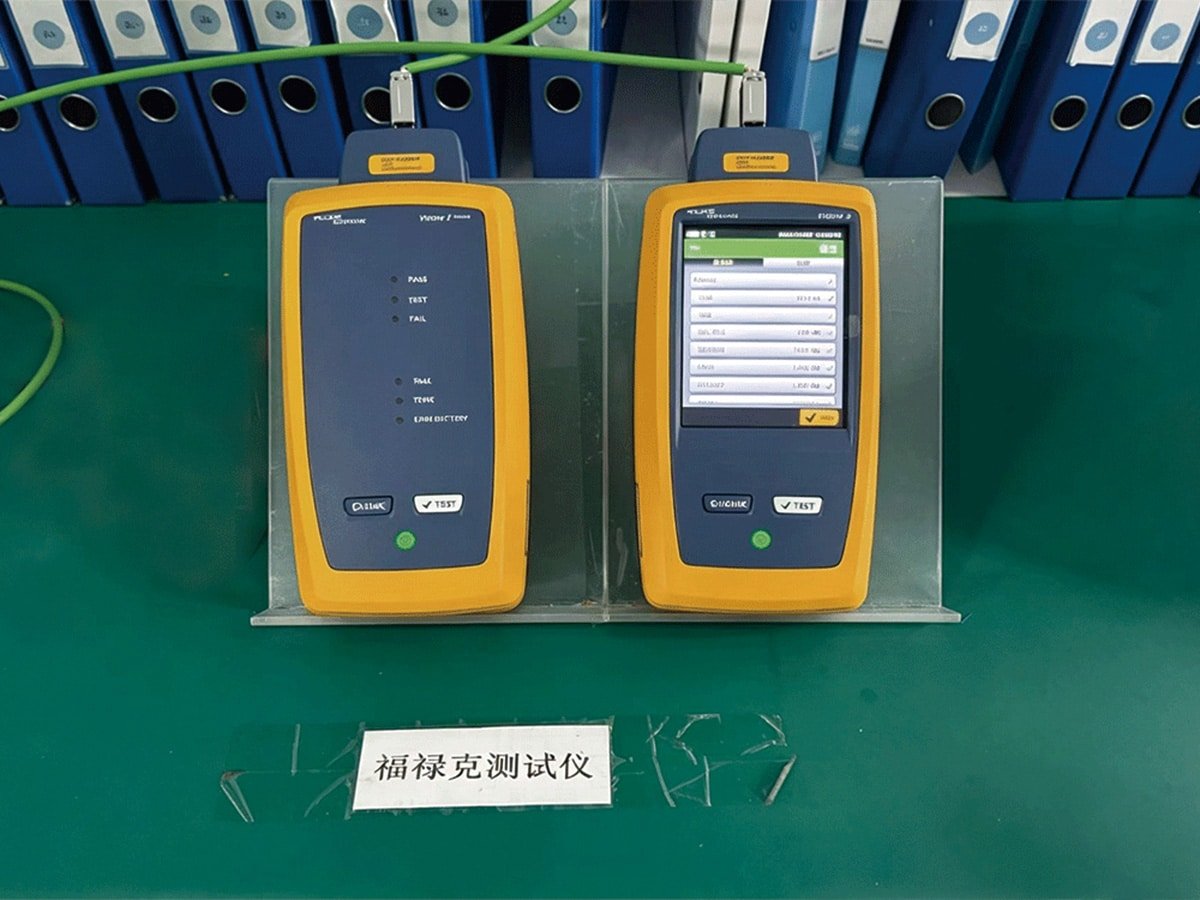

Motion Reliability Should Not Come at the Cost of Data Performance
Industrial communication cables have two jobs: they must survive the mechanical environment and continue transmitting data reliably.
For Industrial Ethernet, fieldbus and other communication cable projects, the validation plan is defined according to cable category, protocol requirements, electrical construction, shielding design, intended motion and applicable specifications.
Testing may combine electrical verification with repeated-motion evaluation to help determine whether mechanical stress affects the cable’s transmission-related performance.
This becomes particularly important when communication cables are installed in:
- Drag chains
- Gantry systems
- Machine tools
- Vision systems
- Automated production equipment
- Robotics
- Material handling systems
Hulk develops Custom Ethernet Cable constructions for industrial environments where electrical performance, shielding and mechanical durability must work together.

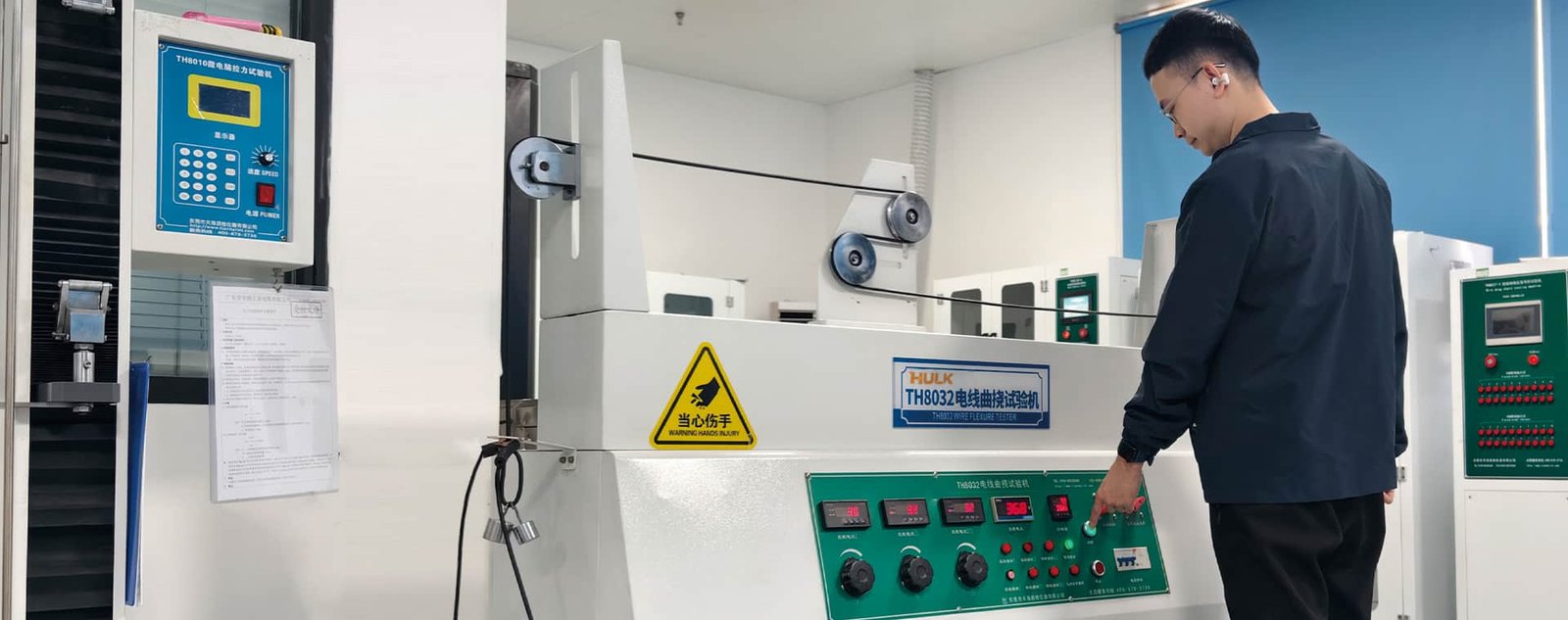

Tell Us How the Cable Moves. We Can Build the Test Around It.
Standard test conditions are useful, but industrial machines do not always operate under standard conditions.
A robot may rotate through a specific angle every few seconds. A gantry may travel several meters per cycle. A drag chain may use an unusually tight bend radius. A cable may need to operate continuously in an elevated-temperature environment.
For custom cable projects, our engineering team can use your actual operating information to develop an application-oriented validation plan.
Useful project information includes:
Motion Type
Linear flexing, bending, torsion, multi-axis movement or a combination of motions.
Bend Radius
The actual or expected minimum bend radius inside the machine.
Travel Distance
The working stroke or cable travel distance during each cycle.
Speed & Frequency
How quickly and how often the cable moves.
Torsion Angle
Required clockwise and counterclockwise rotational movement.
Operating Temperature
Minimum, maximum and typical operating temperatures.
Cycle Target
The expected number of movements or intended machine service life.
Electrical Requirements
Voltage, current, signal, communication or other cable-specific requirements.
Does this cable design make sense for the way your equipment actually operates?
Testing Creates Value When Engineering Responds to the Data
A test result is not the end of the process.
When prototype or endurance testing reveals an unexpected change, our engineering team can review the cable construction and identify potential areas for improvement.
Depending on the project, optimization may involve:
Conductor Construction
Adjusting conductor size, strand diameter, stranding method or conductor arrangement.
Insulation Design
Reviewing insulation material, thickness and flexibility.
Shielding Structure
Optimizing braid, foil or combined shielding configurations for the electrical and mechanical requirements.
Cable Geometry
Improving component arrangement, lay length, fillers and overall construction.
Jacket Material
Selecting or modifying the outer jacket according to flexibility, temperature and environmental requirements.
Manufacturing Parameters
Reviewing production settings that influence dimensional and construction consistency.
The revised prototype can then return to the laboratory for another round of validation.
This feedback loop connects our Cable Design, Material Selection, Core Manufacturing Technology and testing capabilities into one engineering system.
Test According to the Requirements That Matter for Your Cable
Different cable types, markets and applications may be governed by different technical requirements.
Hulk develops testing and validation plans with reference to applicable requirements such as:
Internal Validation and Third-Party Certification Are Different Processes
Where third-party certification or independent compliance testing is required, the applicable certification process is treated separately from Hulk’s internal engineering and quality verification.
This distinction matters.
Our in-house laboratory helps us develop, verify and control our cable products. Third-party organizations independently evaluate products where external certification is required.
Hulk holds international product certifications and approvals covering markets and applications including UL/cUL, CE, TÜV, RoHS, REACH and other relevant requirements across our product portfolio.
- UL / cUL
- CE
- TÜV
- RoHS
- REACH
Exact certification availability depends on the individual cable series and specification.
One Laboratory Supporting Multiple Cable Technologies
Our testing capability supports the development and production of industrial cables across a wide range of applications.
High-Flex Cables
Repeated bending and motion endurance validation for drag chains and high-cycle linear motion systems.
Robot & Torsion Cables
Testing focused on repeated twisting and multi-axis movement.
Servo & Motor Cables
Electrical and construction verification for motion-control and drive applications.
Industrial Ethernet Cables
Validation combining electrical requirements with the mechanical demands of industrial installations.
Fieldbus Cables
Testing according to cable construction, communication requirements and application conditions.
Sensor & Actuator Cables
Electrical and construction verification for industrial sensors, actuators and control systems.
High-Temperature Silicone Cables
Material and cable validation for products designed for demanding temperature environments.
Custom-Engineered Cables
Application-specific testing developed around customer-defined operating conditions and performance targets.
This shared laboratory platform allows test experience from one application to strengthen cable development across others.
Faster Feedback. Better Engineering Decisions. More Controlled Production.
For industrial cable buyers, laboratory capability provides more than a test report.
It creates a faster connection between a performance problem and the engineering team capable of solving it.
Prototype Validation Before Mass Production
Important design assumptions can be evaluated before committing to full production.
Faster Engineering Feedback
Test results can move directly back to Hulk’s cable design, material and manufacturing teams.
Application-Specific Development
Custom tests can reflect the actual movement and operating conditions of customer equipment.

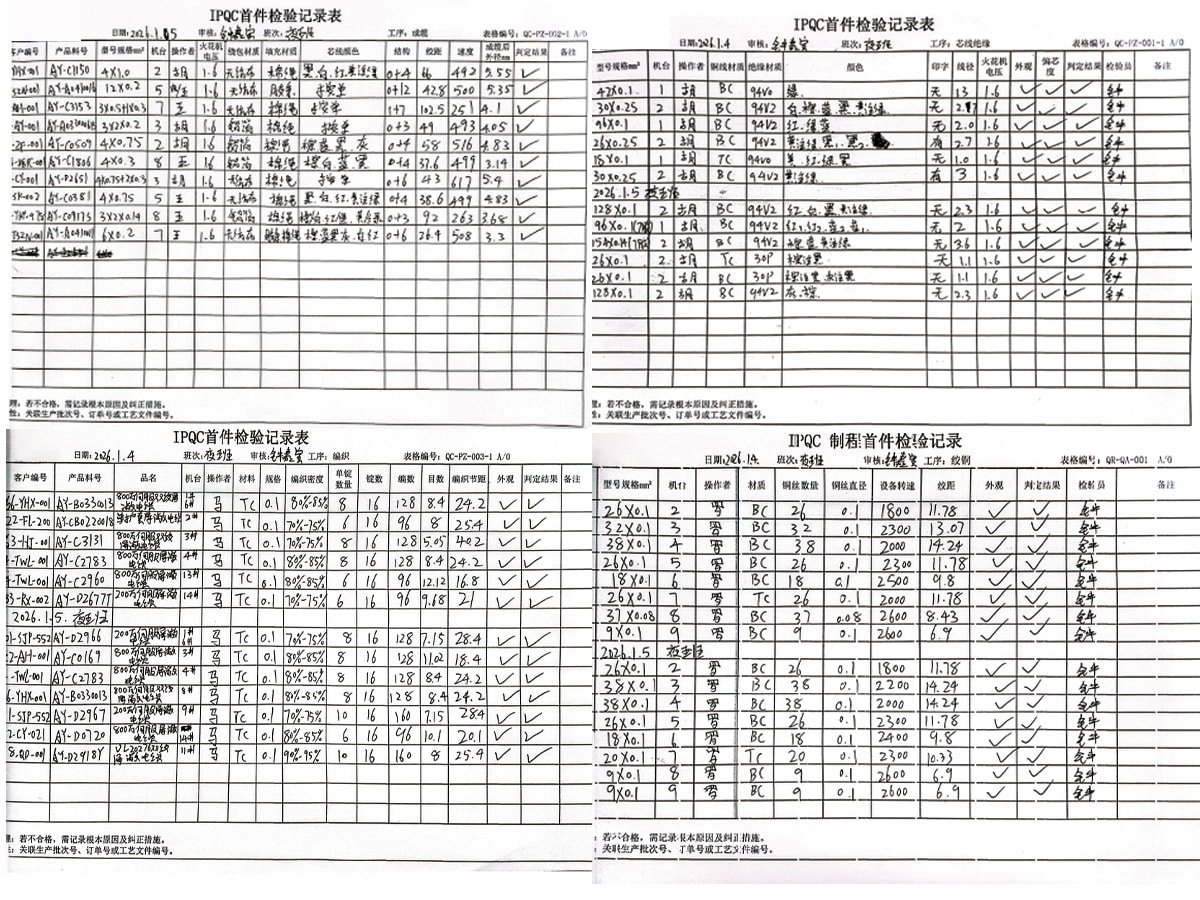

Production Quality Control
Routine verification helps maintain consistency after a design enters production.
Failure Prevention
Potential weaknesses can be identified during development rather than after installation in customer equipment.
Traceable Technical Decisions
Cable specifications can be supported by test data and engineering evaluation instead of relying only on theoretical design assumptions.
For OEMs, machine builders and automation engineers, this reduces uncertainty when developing a cable for a demanding application.
Frequently Asked Questions
Practical answers about motion testing, electrical verification, custom validation and Hulk’s in-house laboratory process.
01 How do you test high-flex cables?
High-flex cable testing is designed around repeated movement. Depending on the application, the test setup can consider bend radius, travel distance, movement frequency, cable construction and required cycle life. Electrical performance can also be monitored during or after the endurance test.
02 How many flex cycles can a drag chain cable withstand?
There is no single cycle-life number that applies to every drag chain cable. Flex life depends on cable construction, bend radius, travel distance, acceleration, installation, operating temperature and other conditions. We recommend evaluating the complete application rather than selecting a cable based only on a published cycle number.
03 What is the difference between bending and torsion testing?
Bending testing primarily evaluates repeated flexing around a defined radius or movement path. Torsion testing evaluates repeated twisting around the cable’s longitudinal axis. Robotic applications may require both types of mechanical performance.
04 Can you simulate our actual cable movement?
For custom cable projects, test conditions can be developed around customer-provided operating parameters such as motion type, bend radius, travel distance, torsion angle, operating temperature, frequency and endurance targets.
05 Do you perform electrical cable testing?
Yes. Electrical verification forms an important part of our development and production process. The specific measurements depend on cable type, construction and applicable specification.
06 Can testing be performed during custom cable development?
Yes. Testing can be incorporated into prototype development so that results can be reviewed before the cable design is finalized for mass production.
07 Do all Hulk cables use the same test procedure?
No. Test requirements vary according to cable type, construction, intended application, target market and customer specification. The validation plan should match the actual product requirements.
08 Is Hulk’s laboratory a third-party certification laboratory?
Hulk operates an in-house testing laboratory for product development, engineering validation and production quality control. Where independent certification is required, applicable third-party certification procedures are handled separately.
Need to Validate a Cable for Your Application?
Tell us how your cable will move, where it will operate and what performance it needs to maintain.
Share your bend radius, travel distance, torsion angle, operating temperature, motion frequency, electrical requirements and expected cycle life. Our engineering team can review the application and develop a cable construction and validation approach around your operating conditions.
Custom cable engineering · Prototype validation · Application-specific testing · Production quality control
