Cables for Drive Technology
Reliable power, control and feedback transmission for servo drives, industrial motors, encoders and variable-frequency drive systems—engineered for precise motion, demanding environments and continuous operation.
- Manufacturing Since 2007
- 35+ International Certifications
- 7-Day Rapid Sampling
- Custom Cable Engineering
Reliable Connections from the Controller to the Motor
An industrial drive system depends on more than the drive and motor. Power, commands and feedback must move reliably between the controller, servo drive or variable-frequency drive, motor, encoder and auxiliary devices. The cable connecting each component has a direct influence on signal stability, motion accuracy and long-term machine availability.
HULK develops industrial drive cables for fixed installations, occasional movement and continuous-flex applications. Our engineers evaluate the electrical load, signal type, motion pattern, installation space and operating environment before recommending a cable construction.

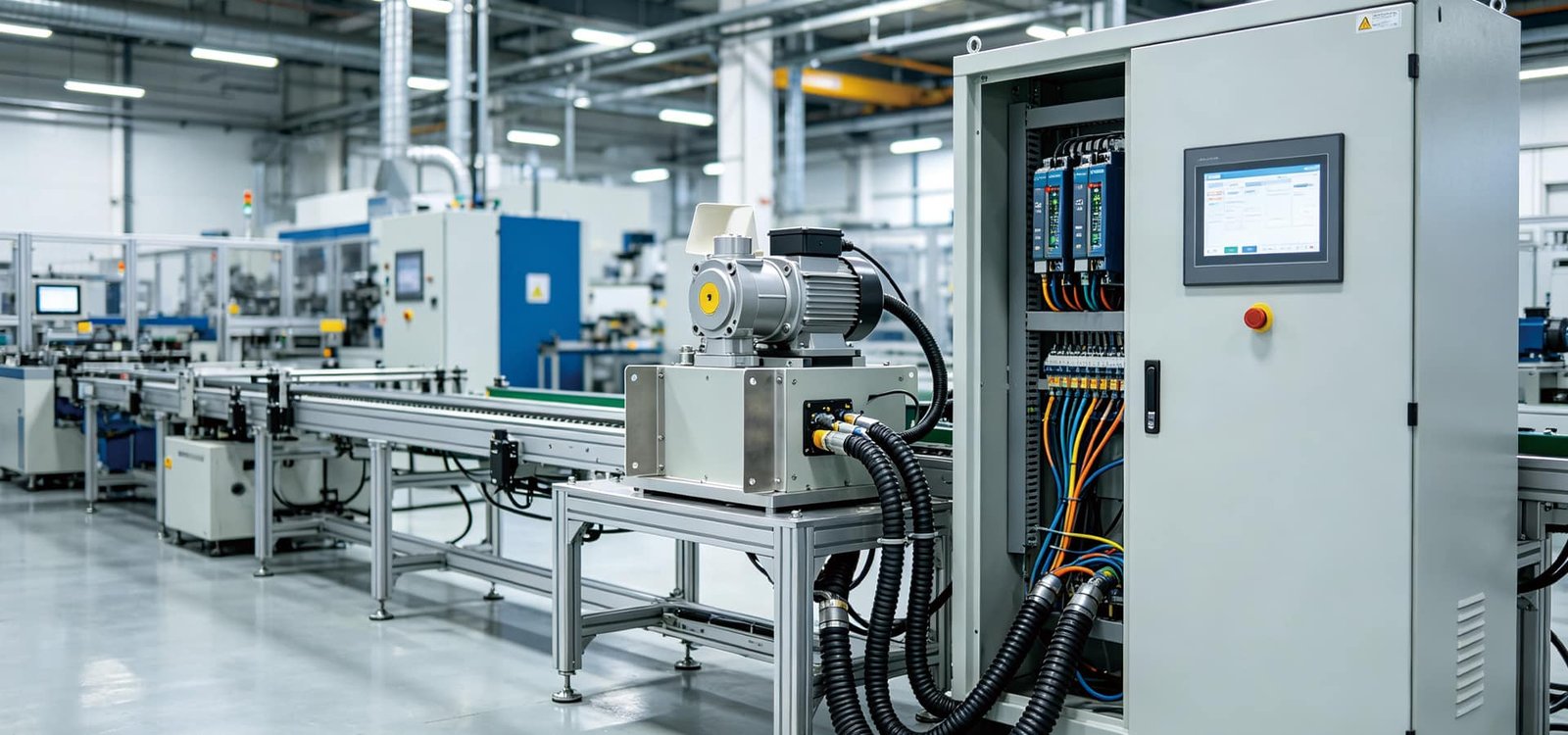

Typical Connections in an Industrial Drive System
Controller or PLC to Drive
Control, industrial Ethernet and fieldbus cables carry commands and operating data between the machine controller and the drive.
Drive to Motor
Servo motor cables and motor power cables transmit the electrical power required to control motor speed, torque and position.
Encoder or Resolver to Drive
Feedback cables return position, speed and operating information so the drive can continuously correct motor performance.
Motor to Brake or Temperature Sensor
Auxiliary conductors or separate control cables connect motor brakes, thermal sensors and other monitoring devices.
Moving Axis or Cable Chain
High-flex drive cables are designed for repeated bending where a motor or driven axis moves continuously during operation.
Why Drive Systems Need Application-Specific Cables
Industrial drives combine power electronics, high-speed control and precise feedback. A cable that is suitable for a conventional power connection may not be suitable for a moving servo axis, a feedback circuit or an inverter-driven motor. Cable selection should account for both electrical performance and the actual installation environment.
Electromagnetic Interference
Drives and motor cables can generate electrical noise that affects encoders, sensors, communication lines and nearby control equipment. Appropriate shielding, cable geometry and grounding practices help support electromagnetic compatibility throughout the system.
Feedback Signal Integrity
Encoder and resolver signals must remain stable while routed near motor power cables and other sources of interference. Conductor pairing, shielding and the physical separation of power and signal elements should be considered during cable design.
Repeated Bending and Conductor Fatigue
Cables installed in drag chains experience repeated bending, acceleration and mechanical stress. The conductor stranding, internal core arrangement, jacket and specified bend radius must work together to support the required motion.
Oil, Coolant and Abrasion Exposure
Machine tools and automated production equipment may expose cables to lubricants, coolants, cleaning agents, abrasion and metal debris. Jacket selection should be based on the actual substances and mechanical conditions present at the installation.
Limited Routing Space
Compact machines often require small cable diameters and controlled bend radii. HULK can review the available installation space and help balance compact construction with electrical and mechanical performance.
Temperature and Operating Environment
Ambient temperature, conductor temperature, outdoor exposure and nearby heat sources can affect material selection and cable life. Each application should be evaluated using its real operating conditions rather than a nominal machine description alone.
Cable Solutions for Motion-Driven Industrial Equipment
HULK drive technology cables support the transmission of power, control data and feedback signals across a wide range of motor-driven equipment.
CNC Machine Tools
Servo axes, spindle motors, tool-changing systems and moving cable chains require cables that can handle precise motion, coolant exposure and continuous production.
Packaging Machinery
High-speed filling, sealing, labeling and cartoning equipment relies on synchronized servo motors and stable feedback to maintain repeatable production cycles.

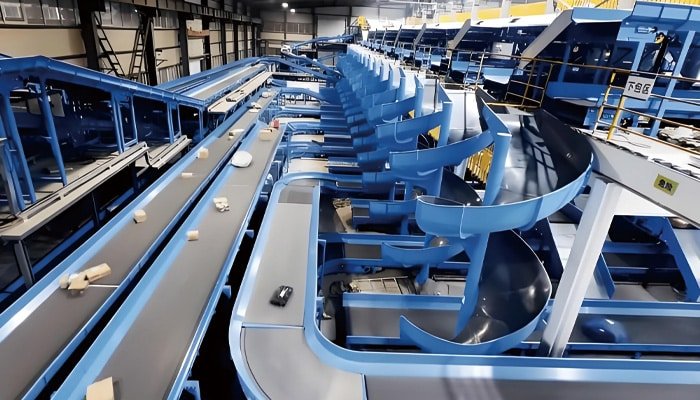

Material Handling Systems
Conveyors, gantries, automated storage systems and transfer equipment use motor and communication cables across both fixed and moving installations.

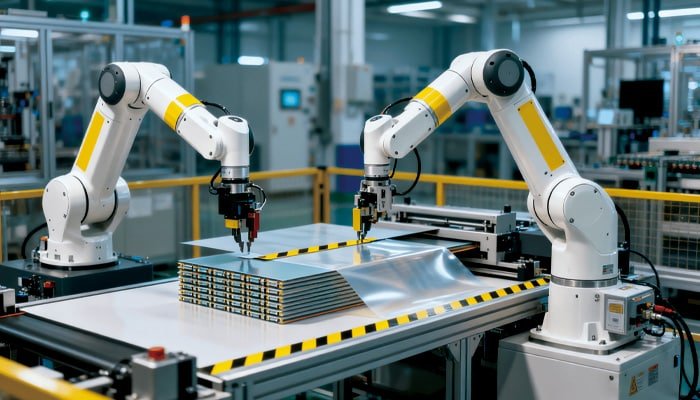

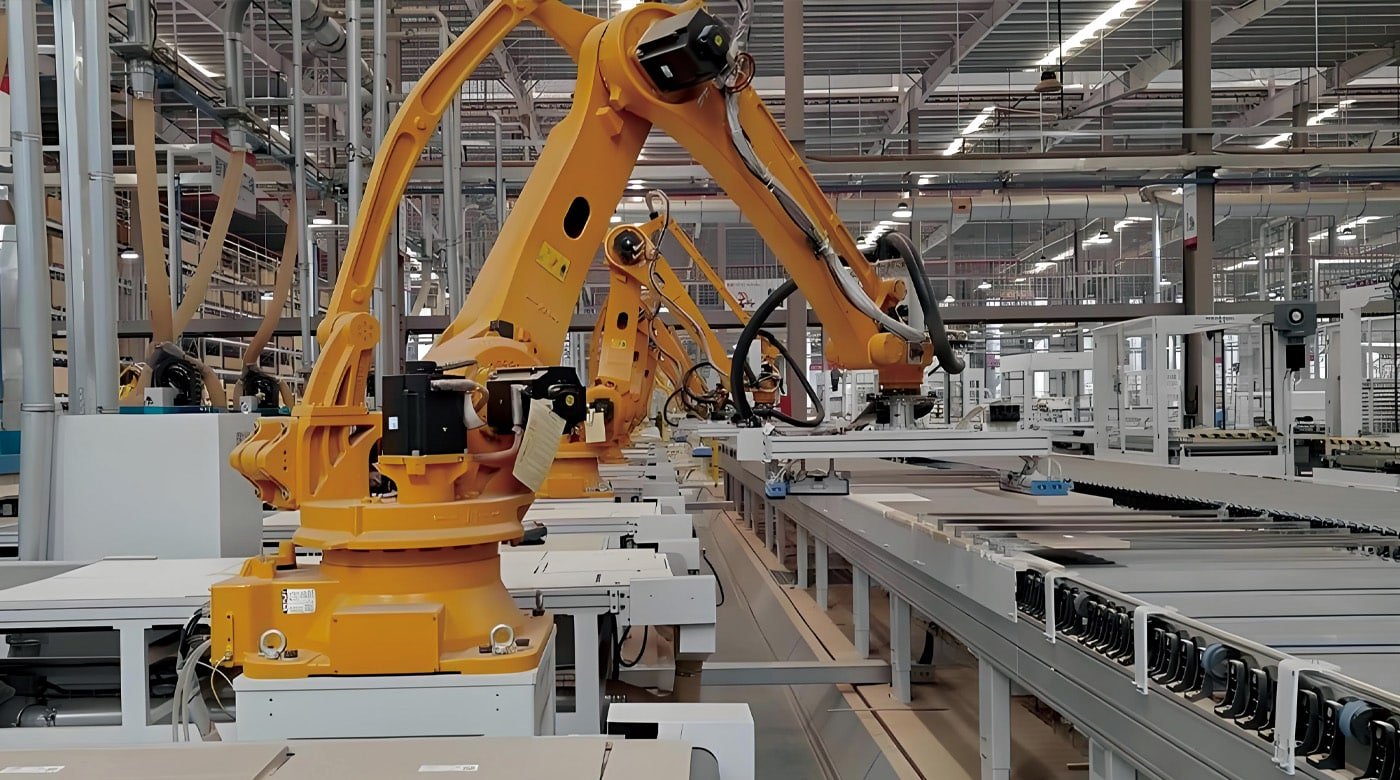

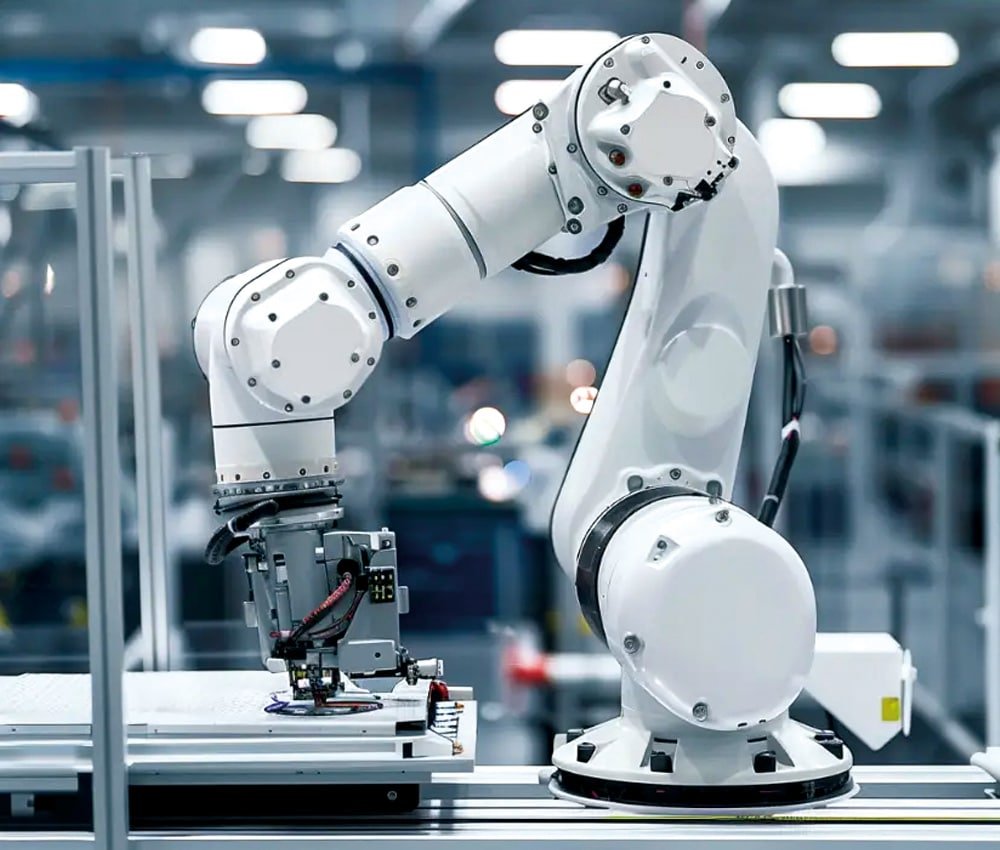

Robotics and Automated Assembly
Servo-driven handling, positioning and assembly equipment requires reliable power and feedback connections through repeated movement and acceleration.
Printing and Textile Machinery
Multiple synchronized motors control speed, tension, registration and material movement, making stable drive communication and feedback essential.
Pumps, Fans and Process Equipment
Motor-driven pumps, fans and other process equipment require cable constructions selected according to electrical load, routing distance, environmental exposure and drive type.
Food and Beverage Equipment
Drive cables used around processing and packaging lines may need to withstand oils, moisture, frequent cleaning or low-temperature conditions, depending on their installation location.
Match the Cable to the Motion and Environment
Cable selection should begin with the complete application rather than the motor name alone. The same servo motor may require different cable constructions in a fixed control cabinet, a moving gantry or an oil-exposed drag chain.
Fixed Installation
For stationary routing between a drive and motor, selection focuses primarily on voltage, current, shielding, routing method, environmental resistance and applicable standards.
Occasional Movement
Equipment that moves during installation, adjustment or maintenance may require a flexible cable, but not necessarily a continuous-flex construction. The frequency and type of movement should be defined before selection.

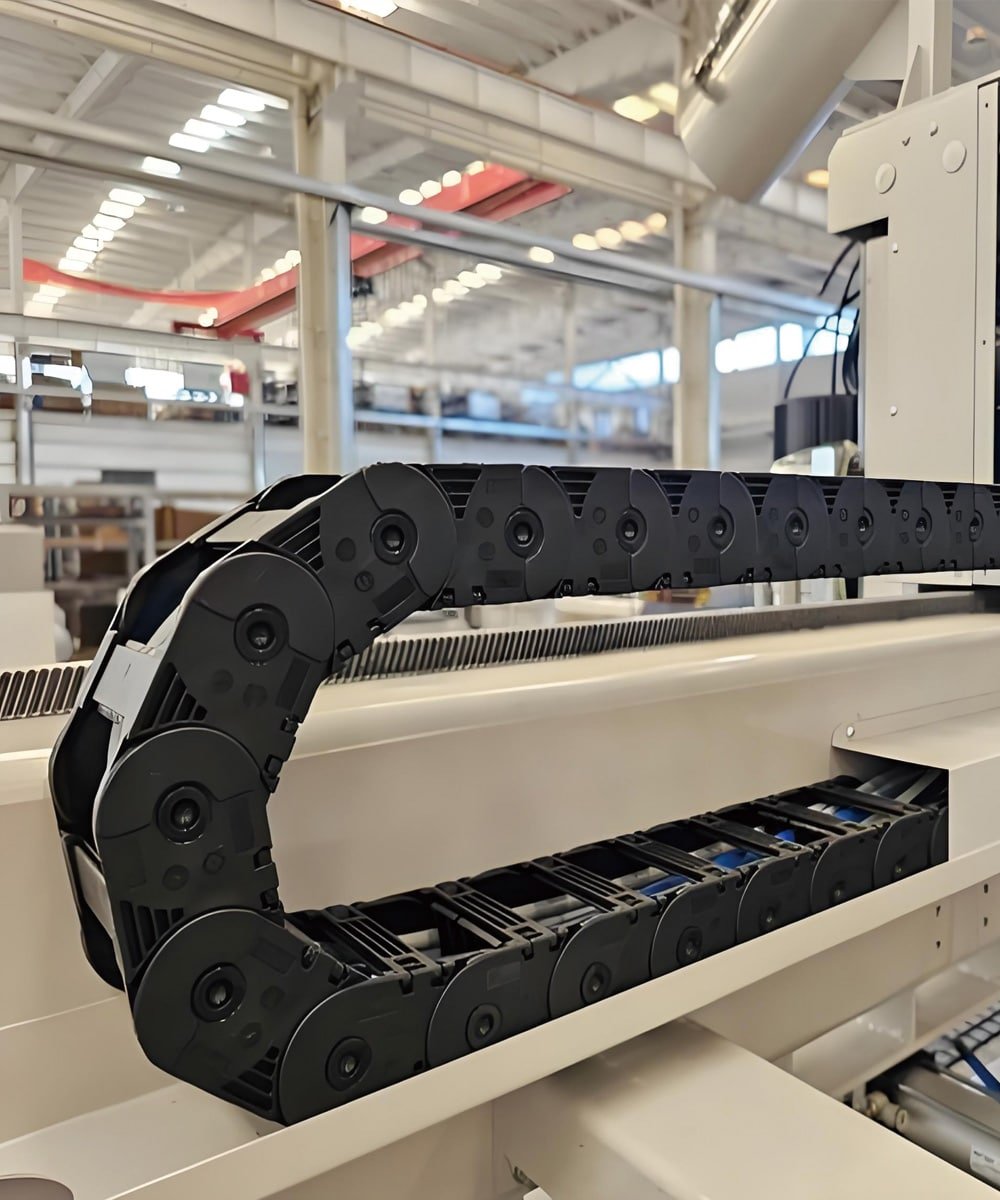

Continuous Linear Motion
For drag chains and reciprocating machine axes, specify the minimum bend radius, travel distance, speed, acceleration, operating cycles and chain orientation. These parameters are essential for evaluating a high-flex cable design.
Torsional or Multi-Axis Motion
Robotic and rotating applications place different stresses on a cable than linear drag-chain movement. The required torsion angle, torsion length and combined motion pattern should be reviewed separately.
Harsh Industrial Environments
If the cable is exposed to oil, coolant, chemicals, abrasion, moisture, UV or extreme temperatures, provide the specific substance, concentration, exposure method and temperature range whenever possible.
Electrically Sensitive Installations
Where motor power cables run near encoders, sensors or network cables, shielding construction, cable separation, routing and termination practices should be considered as part of the complete EMC strategy.
Information to Prepare Before Selecting a Drive Cable
- Drive and motor type
- Rated voltage and current
- Power, control and feedback requirements
- Fixed, flexible, drag-chain or torsional installation
- Minimum bend radius and available routing space
- Travel distance, speed and acceleration
- Ambient and conductor temperature
- Exposure to oil, coolant, chemicals, moisture or UV
- Required jacket material, color and marking
- Required approvals or target market
From Application Data to a Manufacturable Cable
Drive-system manufacturers often need a cable that fits an existing machine design, a new motor platform or a customer-specific operating environment. HULK works with OEMs, automation engineers and system integrators to turn those requirements into a practical cable construction.
Application Review
We review the drive, motor, feedback interface, electrical load, motion pattern, routing space, environment and required compliance. Existing drawings, datasheets and cable samples can be used as references.
Cable Construction Development
Our engineers define the conductor sizes, stranding, core layout, power and signal elements, insulation, shielding, fillers, jacket material, overall diameter, color and marking.
Sampling and Validation
Prototype cables can be produced for dimensional, electrical, mechanical and application-specific evaluation. New specifications can be supported through HULK's 7-day rapid sampling service when the required materials and design conditions are available.

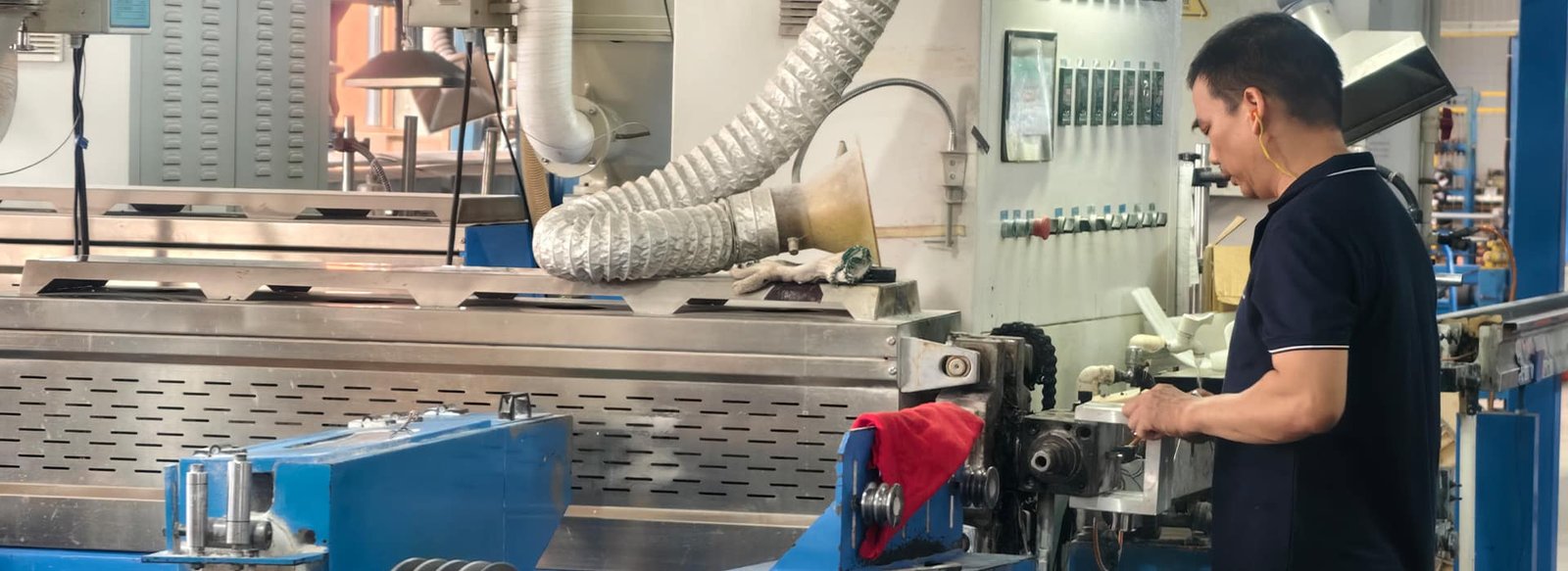

Production and Traceability
After specification approval, the cable moves into controlled production with inspection and test records maintained through HULK's quality and ERP systems.
Customizable Cable Elements
- Conductor cross-section and stranding
- Number of power, control and signal cores
- Twisted-pair and feedback-element configuration

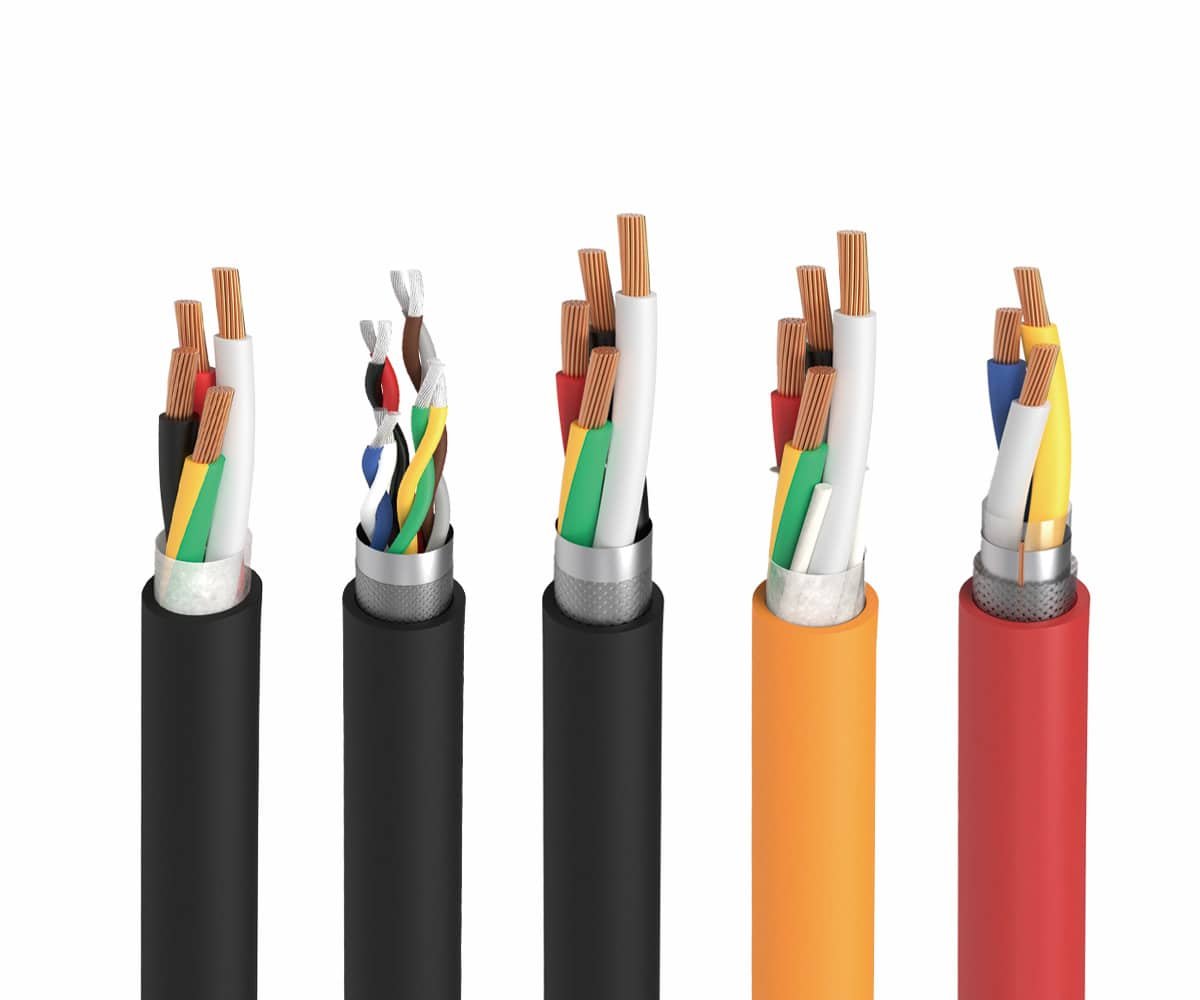

- Individual and overall shielding
- Insulation and outer-jacket compounds
- Cable diameter and mechanical flexibility
- Oil, abrasion, flame and temperature requirements
- Jacket color, printing and identification
- Packaging and delivery length
- Market-specific compliance requirements
Verification Based on the Cable and Its Application
Quality is built into each stage of HULK's manufacturing process, from incoming-material inspection and in-process dimensional control to final electrical and mechanical testing. Test plans can be adapted when a drive cable has special movement, material or environmental requirements.
Relevant Testing Capabilities
Electrical Testing
Conductor resistance, insulation resistance, voltage withstand and continuity testing help verify that the cable meets its defined electrical specification.
Dimensional and Construction Inspection
Conductor size, insulation thickness, shield construction, jacket thickness, overall diameter and surface marking are inspected against the approved design.

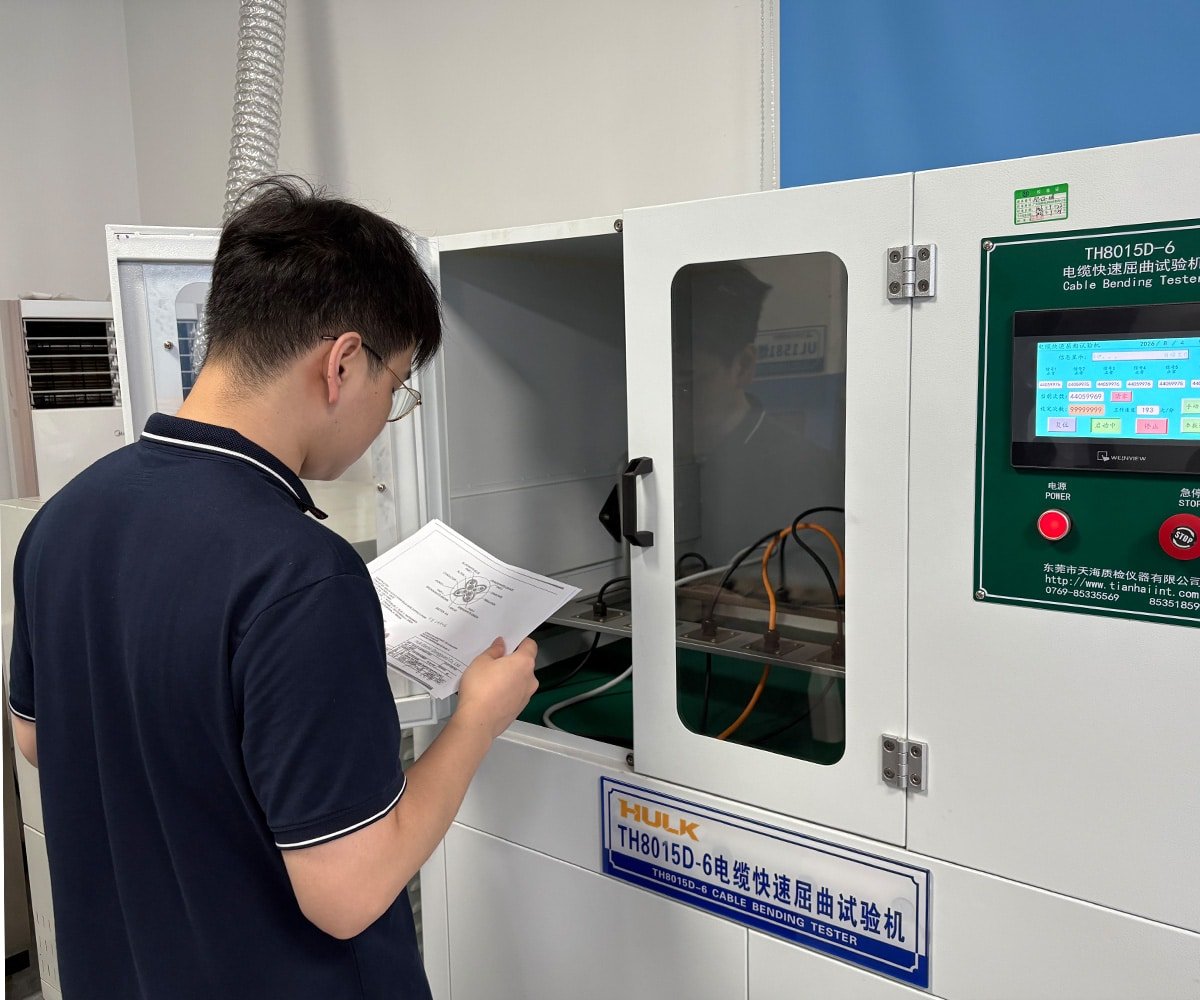

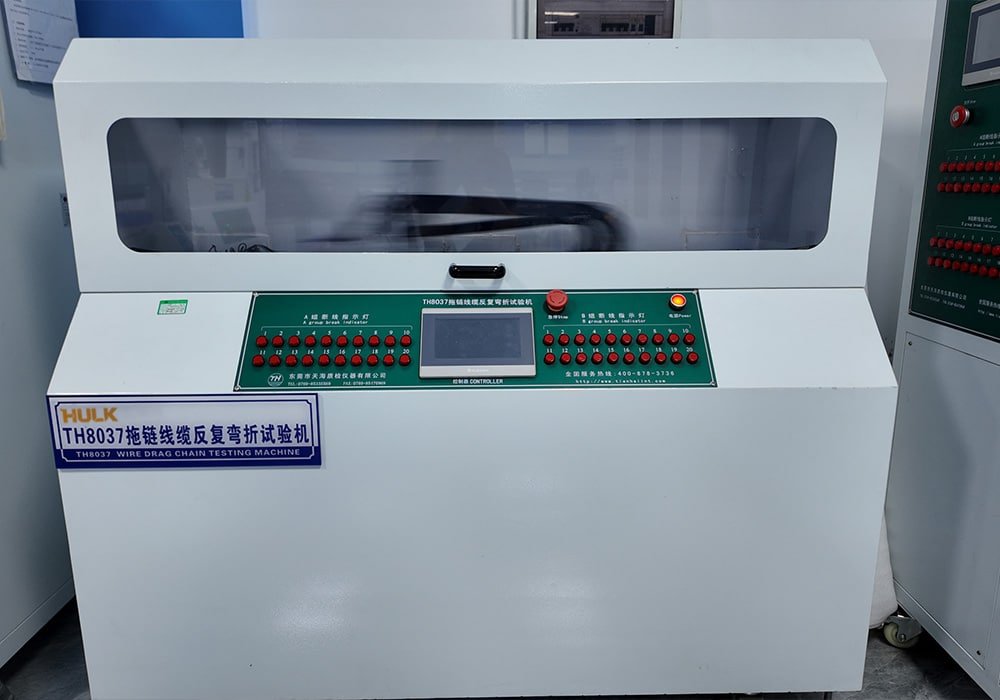

Flex and Motion Testing
Repeated-bending and drag-chain tests can be used to evaluate cable constructions intended for dynamic drive applications. Test conditions should reflect the required bend radius, travel and motion pattern as closely as practical.
Torsion Testing
Cable constructions intended for rotating or multi-axis movement can be evaluated under defined torsional conditions.

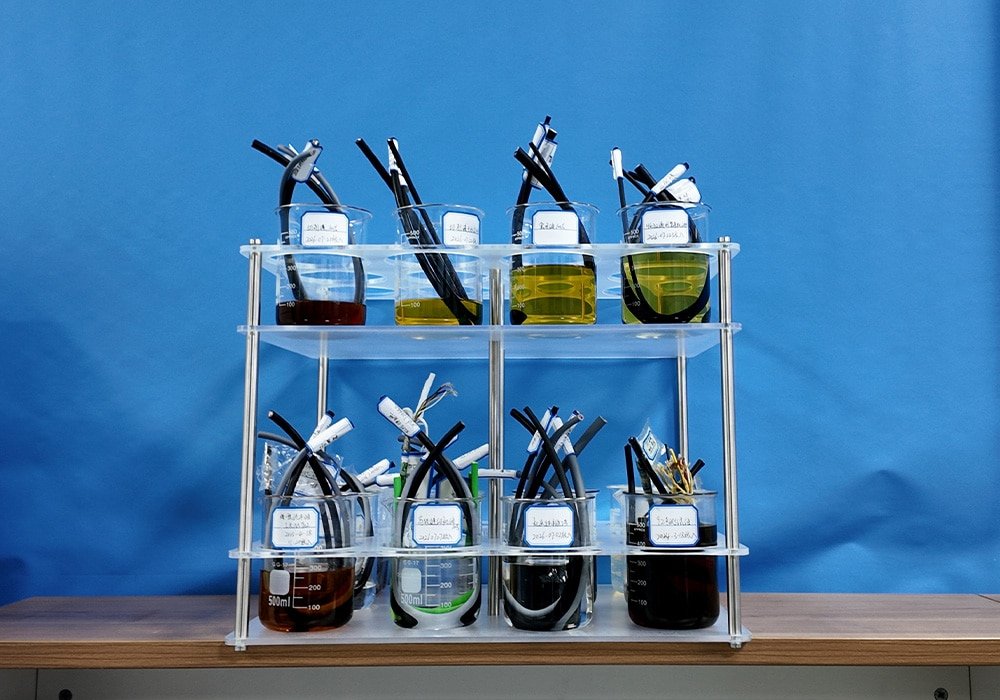

Material and Environmental Testing
Depending on the specification, jacket and insulation materials can be evaluated for oil resistance, chemical exposure, abrasion, temperature performance and flame behavior.
HULK Testing and Quality Resources
- 30+ advanced testing instruments
- 150+ types of tests across the product range
- 100,000+ electrical measurements annually
- 600+ double-loop motion endurance tests annually
- 100+ customized application tests
- 35+ international product certifications
HULK operates according to an ISO 9001:2015 quality management system and supports internationally recognized requirements including UL, CE, TÜV, IEC, VDE, RoHS and REACH within the scope of the applicable product and specification.
Drive Technology Cable FAQs
What cables are used in an industrial drive system?
An industrial drive system may use motor power cables, servo motor cables, encoder or resolver feedback cables, brake and temperature-sensor cables, control cables, industrial Ethernet cables and fieldbus cables. The required combination depends on the drive, motor, feedback device and control architecture.
What is the difference between a servo cable and a standard motor cable?
A servo cable is designed around the power, control and feedback requirements of a servo drive and motor system. Depending on the system, it may include brake conductors or other auxiliary elements. A standard motor cable is generally intended for motor power transmission and may not have the same core configuration or dynamic-performance requirements.
When does a drive cable require shielding?
Shielding is commonly considered when motor or drive cables may generate electromagnetic interference or when feedback and communication signals must be protected from nearby electrical noise. The correct shield construction and grounding method depend on the drive system, cable length, installation layout and applicable EMC requirements.
Can servo motor cables be installed in drag chains?
Only if the cable is designed and validated for continuous-flex operation. A cable described as flexible is not automatically suitable for millions of repeated bending movements. Bend radius, travel distance, speed, acceleration, chain layout and environmental exposure must all be considered.
How do I select a cable for an encoder or resolver?
Start with the feedback-device specification, signal interface, number of conductors or pairs, conductor size, shielding requirements, cable length and installation movement. Providing the original drawing or electrical specification helps HULK evaluate the required construction.
Can HULK manufacture cables for inverter-driven motors?
HULK can review cable requirements for inverter-driven motor connections. The drive output, system voltage, current, cable length, shielding, grounding, installation environment and required approvals must be evaluated before a cable construction is recommended.
What information is required for a custom drive cable?
Provide the drive and motor information, voltage and current, cable construction or pin requirements, installation movement, minimum bend radius, operating environment, required approvals, expected order quantity and any existing drawing, datasheet or sample.
Does a flexible cable always work in a continuous-motion application?
No. General flexibility makes a cable easier to route, but continuous-flex applications require a construction developed for repeated movement. The conductor stranding, core arrangement, materials, bend radius and test conditions must match the intended motion.
Build a More Reliable Connection Between Your Drive and Motor
Whether you need a servo motor cable, a high-flex cable for a moving axis or a custom construction for a new drive platform, HULK can help review the electrical, mechanical and environmental requirements before production.
Send us your drawing, datasheet, existing cable specification or application details. Our engineering team will help define the right conductor, shielding, insulation and jacket construction for your drive system.
- Engineering specification review
- 7-day rapid sampling for new specifications
- Standard production lead time from 15 days
- Support for custom testing and international compliance requirements
