Custom industrial cables are the lifelines of automation systems, robotics, machine tools, and control panels. Yet many OEM engineering teams and automation specialists discover costly problems only after cables arrive—wrong pinouts, premature failures in the field, or cables that don’t fit the motion profile. In most cases, these issues trace back to incomplete or ambiguous specifications rather than manufacturing defects.
At Hulk Electric, with over 20 years of building high-flex, servo, robot, and high-temperature silicone cables for global automation customers, we’ve seen the same specification pitfalls repeat across projects. This guide outlines the most common mistakes when specifying custom industrial cables and provides practical steps to avoid them, helping you get reliable cables on the first try, reduce lead times, and minimize downtime.
Mistake 1 – Ordering a Custom Cable Without Clear Drawings or Pinouts
Vague Requirements and Missing Documentation
A frequent error is sending an RFQ that says something like “custom servo cable for our robot arm” with only basic text or verbal descriptions. Without detailed drawings, the manufacturer must make assumptions about pin assignments, branching, lengths, or shielding, which often leads to revisions, delays, and mismatched assemblies.
How to Avoid It – Provide Complete Electrical and Mechanical Documentation
Always include at least one clear cable or harness drawing showing:
- Exact lengths, branch points, and tolerances
- Connector part numbers on both ends
- Detailed pinout tables with signal assignments and shielding notes
- Annotated routing sketches or photos of the installation area
Even a hand-drawn sketch with dimensions is far better than nothing. This documentation forms the foundation for accurate quoting and production.
Mistake 2 – Not Specifying the Operating Environment and Mechanical Motion
“Industrial Use” Without Environmental Detail
Many specs simply note “standard industrial environment” while omitting critical factors such as temperature swings, exposure to cutting oils, coolants, washdown chemicals, UV, or high humidity. Generic cables chosen purely by price or conductor count often degrade quickly in real conditions.

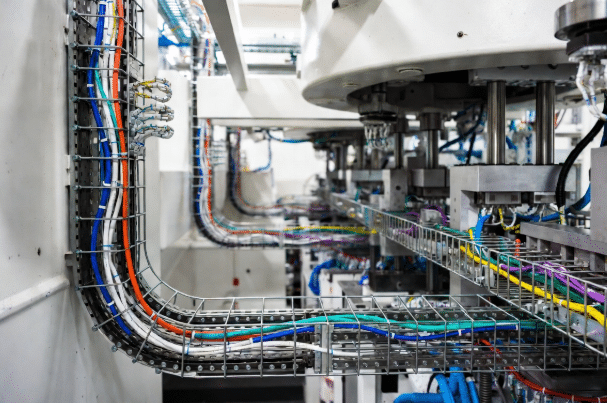

Violating Bend Radius and Motion Requirements
Another common issue is installing static-rated cables in drag chains or around tight radii, or ignoring torsion in robotic applications. This causes conductor breakage, jacket cracking, or intermittent signal loss that is difficult to troubleshoot.
How to Avoid It – Map Environment and Motion in the Spec
Clearly document:
- Temperature range (ambient, peak, and minimum)
- Exposure to oils, chemicals, water, dust, or cleaning agents
- Motion profile: static, occasional flex, continuous drag chain, torsion, expected cycle count, and minimum bend radius
- Machine zones (e.g., hot near motors, wet near processing areas)
Dividing the system into zones and specifying requirements for each segment gives the manufacturer the information needed to recommend the right jacket compounds, shielding, and flex ratings.
Mistake 3 – Over-Specifying or Under-Specifying Performance Requirements
Over-Precise Specs That Add Cost Without Value
Demanding extreme ratings “just in case” (e.g., ultra-high temperature or chemical resistance far beyond actual conditions) inflates costs, limits supplier options, and complicates production without improving real-world performance.
Under-Specifying Electrical Ratings, Shielding and Standards
Conversely, vague ratings for current, voltage drop, shielding, or EMC performance can lead to overheating, signal interference, or failed compliance audits later.
How to Avoid It – Separate “Must-Have” from “Nice-to-Have”
Create a simple matrix that distinguishes:
- Must-have: core electrical ratings, required shielding for the application, essential certifications (UL, CE, etc.)
- Nice-to-have: extra safety margins
Refer to manufacturer application guides and industry standards for realistic benchmarks.

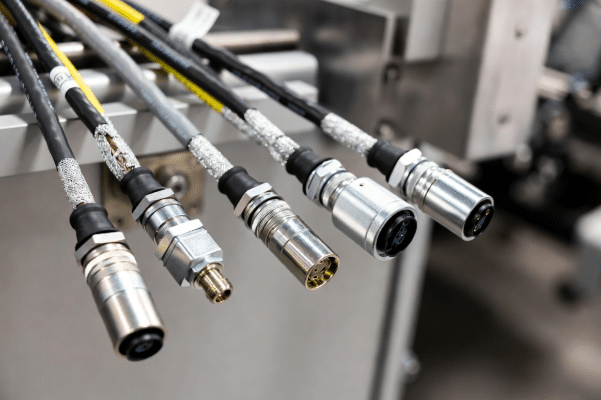

Mistake 4 – Treating Connectors and Terminations as an Afterthought
Connector Mismatch on Gauge, OD and Rating
Selecting connectors that don’t match wire gauge, cable outer diameter, or current rating results in poor crimps, loose connections, and potential hotspots.
Ignoring Connector Standards and Mating Requirements
Specifying only “M12 connector” without coding, IP rating, keying, or mating part details often requires rework when cables arrive.
How to Avoid It – Specify Connector and Termination Details Up Front
Include:
- Exact connector series and part numbers (both ends)
- Required IP rating, current/voltage, and acceptable cable OD
- Shield termination method (360° clamp, drain wire, grounding scheme)
Align choices with your long-term platform standards for easier maintenance and spares.
Mistake 5 – No Plan for Labeling, Routing and Cable Management
Unlabeled Cables and Confusing Harness Layouts
Omitting labeling requirements leads to harnesses that are hard to identify during installation or troubleshooting.
How to Avoid It – Integrate Cable Management into the Specification
Define:
- Labeling scheme (text, placement, customer-specific codes)
- Routing and grouping guidelines (separate power/signal, minimum support intervals)
- Protective elements (loom, grommets, conduits)
Good cable management improves reliability and serviceability.
Mistake 6 – Leaving Compliance, Certification and Test Requirements to the End
Forgotten Standards That Force Late Redesigns
Failing to list required marks (UL AWM, CE, RoHS, REACH, NFPA 79, etc.) early often triggers expensive material or process changes.
How to Avoid It – Define Compliance and Testing in the RFQ
Dedicate a section to:
- Required regulatory certifications and flame ratings
- Material restrictions (halogen-free, etc.)
- Production tests (continuity, hi-pot, insulation resistance) and documentation deliverables
Practical Specification Checklist for Custom Industrial Cables
Use this checklist before every RFQ:
Questions to Validate Before You Send a Spec
- Do we have clear drawings, pinouts, and routing sketches?
- Have we mapped environmental conditions and motion profiles (temperature, chemicals, bend radius, cycles)?
- Are electrical ratings, shielding, and performance requirements balanced?
- Have we specified exact connector details and terminations?
- Are labeling, routing, and cable management requirements included?
- Did we list all compliance, certification, and test needs?
Information to Include in Every Custom Cable RFQ
- Drawings, pinouts, connector part numbers, and mating hardware photos
- Environmental and mechanical details by zone
- Electrical and signal requirements
- Integration and management expectations
- Compliance and test plan
Getting custom industrial cables right the first time saves time, money, and frustration. By providing complete, clear specifications that cover electrical, mechanical, environmental, and integration aspects, you enable manufacturers like Hulk Electric to deliver cables engineered precisely for your application.
Our team at Hulk specializes in high-flex drag chain cables, servo motor cables, robot torsion cables, industrial Ethernet, Fieldbus, and high-temperature silicone solutions—with full UL, CE, TÜV, and other certifications. Share your drawings and requirements, and we’ll help refine the spec and deliver reliable cables that perform under real operating conditions.
