Modern servo systems in robotics, CNC machines, and automated production lines depend on more than a single power connection. They rely on a complete set of specialized cables—servo power, feedback, encoder, and brake cables—to deliver reliable performance, precise motion control, and safe operation. Understanding the role of each type helps engineers and maintenance teams avoid common pitfalls like signal interference, unexpected downtime, or safety issues.
This guide breaks down what each cable does, how they work together in a servo harness, and when you truly need dedicated lines versus hybrid solutions. Whether you’re designing a new system or troubleshooting an existing one, these details will help you specify the right servo cables for your application.
Servo Power Cables – Supplying Energy to the Motor
Servo power cables form the main artery of any servo system. They carry the electrical current from the servo drive to the motor, enabling torque and speed under varying loads. In high-flex applications typical of Hulk Electric’s product range, these cables must endure millions of bending cycles while maintaining consistent power delivery.
What a Servo Power Cable Actually Carries
A typical servo power cable includes three-phase conductors plus a protective earth (ground) wire. Conductor cross-sections are chosen based on the motor’s rated current and voltage—often 1.5 mm² to 10 mm² or larger for bigger motors. Insulation and jacketing materials, such as specially formulated PVC or halogen-free compounds, provide flexibility, oil resistance, and mechanical protection in industrial environments.
Power Cables With and Without Integrated Brake Leads
Many servo motors support brake leads integrated directly into the power cable jacket. This design reduces the number of separate cables and simplifies routing, especially for smaller motors. However, larger or high-duty systems often require separate brake wiring to handle higher currents safely.
Always check the motor and drive documentation. Using a power-only cable when brake cores are expected can lead to improper braking or wiring errors. Hulk’s servo power cables are available in both configurations, with high-flex stranding optimized for drag chain use.
Feedback and Encoder Cables – Carrying the Motor’s “Nervous System”
While power cables handle energy, feedback and encoder cables transmit critical data. They close the control loop by sending position, speed, and status information back to the drive. Without reliable signal transmission, even the best motor will underperform or become unstable.
Feedback vs Encoder Cables – What’s the Difference?
“Feedback cable” is the broader term for any cable carrying signals from motor-mounted sensors to the drive. An encoder cable is a specific type of feedback cable optimized for rotary or linear encoders. In practice, many servo feedback cables bundle encoder signals with temperature sensors and other auxiliary lines.
Incremental vs Absolute Encoder Feedback Cables
Incremental encoder cables typically handle quadrature pulse signals plus an index pulse. They suit applications needing high-resolution relative positioning. Absolute encoder cables support serial protocols that provide exact position data immediately on power-up, including multi-turn information—ideal for robotics and vertical axes where homing is impractical.
Shielding and Pair Design for Signal Integrity

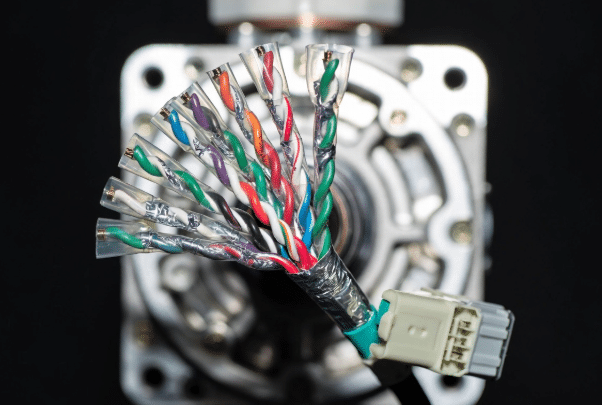

Encoder signals operate at low voltages and are highly susceptible to electromagnetic interference from nearby power cables. Quality servo encoder cables use individually shielded twisted pairs combined with an overall shield. This construction preserves signal integrity over long distances and in high-motion environments.
Poor shielding often causes positioning drift, following errors, or intermittent faults. In our experience supporting automation integrators, upgrading to properly shielded feedback cables frequently resolves mysterious motion issues.
Servo Brake Cables – Controlling Holding and Emergency Stops
Servo brake cables manage the electromagnetic holding brakes built into many servo motors. These brakes keep the shaft stationary when power is off or during emergency stops.
What Servo Brake Cables Do
Brake cables typically carry DC power to release the brake and allow motion. When power is removed, the brake engages automatically. This is essential for safety and energy efficiency. Brake circuits often operate at 24V DC and require careful sizing to avoid voltage drop over distance.
Separate Brake Cables vs Integrated Brake Leads
For compact motors, brake conductors are frequently included in the servo power cable. Larger motors or systems with high brake torque demands usually use dedicated brake cables or connectors. This separation improves serviceability and reduces risk if one function fails.
When You Need a Servo Brake Cable and When You Don’t

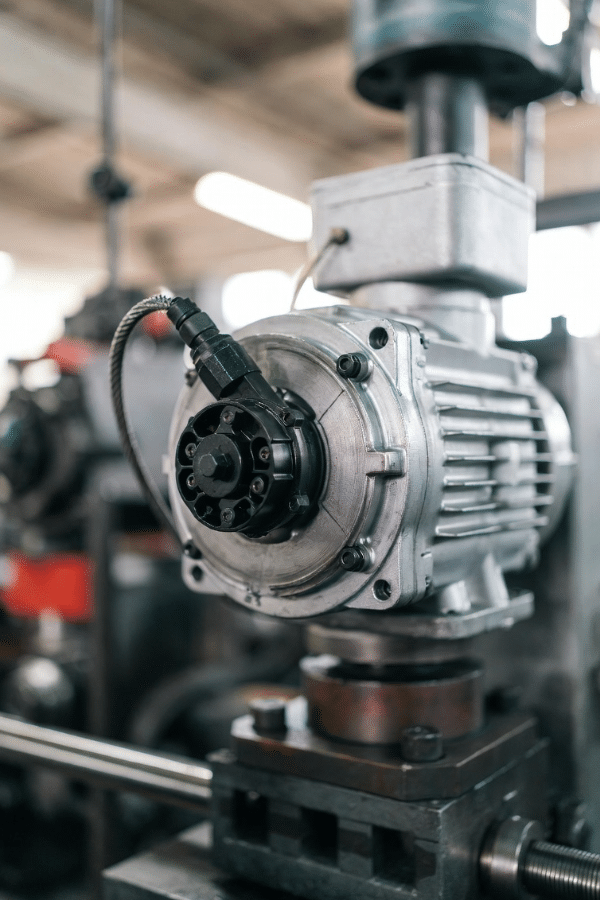

You almost always need brake functionality on vertical axes, lifting mechanisms, or any position where gravity could cause movement when power is cut. Horizontal axes with low risk may operate safely without brakes, relying on servo holding torque instead. Always evaluate safety standards and application requirements.
Hybrid and Single-Cable Solutions – Combining Power, Feedback and Brake

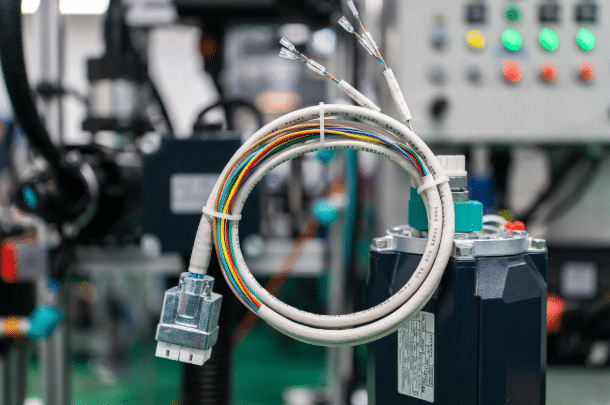

Modern systems increasingly use hybrid servo cables that bundle power, feedback, encoder signals, brake, and temperature wires into one robust jacket.
What Hybrid Servo Cables Include
A well-designed hybrid cable contains power cores, multiple shielded signal pairs, brake conductors, and sometimes additional pairs for temperature or commutation feedback. Advanced shielding and pair separation prevent crosstalk between power and signals.
Pros and Cons of Single-Cable Architectures
Advantages include simpler installation, reduced cable tray congestion, faster assembly, and cleaner machine aesthetics. Many newer servo drives are optimized for single-cable technology.
Trade-offs involve more complex connectors and higher impact if the single cable fails. Hybrid designs must be engineered carefully for EMC compliance and mechanical performance in continuous flex applications. Hulk offers custom hybrid servo motor cables tailored to specific drive and motor combinations.
When Do You Need Each Cable Type? Application-Based Guidance
Basic Servo Axis – Minimum Cable Set
A simple horizontal axis might require only a servo power cable (with or without brake leads) plus a dedicated feedback/encoder cable. Fieldbus or I/O handles additional control signals.
High-Precision Axis – Enhanced Feedback Needs
CNC spindles, high-speed pick-and-place robots, or linear motor systems often demand absolute encoder cables and sometimes dual feedback setups. Robust shielding and low-capacitance designs become critical here.
Safety-Critical or Vertical Motion – Brake Cable Requirements
Any axis where uncontrolled movement poses danger requires proper brake wiring integrated into the servo harness. This ties directly into functional safety circuits.

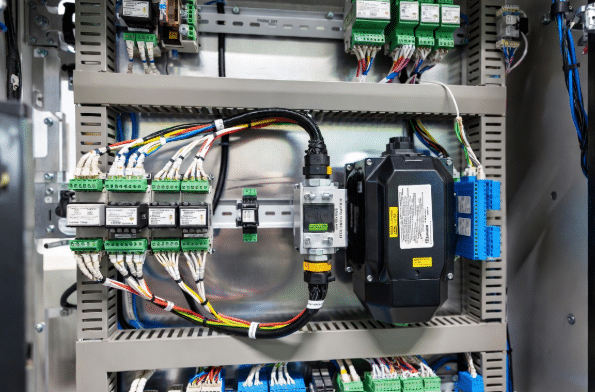

Practical Checklist for Specifying Servo Cable Harnesses
Use this checklist when selecting servo power, feedback, encoder, and brake cables:
- Identify the exact motor series and encoder type (incremental or absolute).
- Confirm whether brake leads belong inside the power cable or require a separate run.
- Match cable ratings to motion type (fixed, flexible, or high-flex drag chain).
- Verify shielding, jacket material, and certifications for your environment (oil, temperature, EMC).
- Consider hybrid options if installation space or routing complexity is an issue.
- Request samples and review bend radius, torsion, and lifetime specifications.
Following these steps prevents mismatched components and ensures long-term reliability in demanding industrial automation applications.
At Hulk Electric, we specialize in high-flex servo and motor cables engineered for exactly these challenges. Our servo power cables, feedback cables, and hybrid solutions are built for millions of motion cycles while meeting international certifications. Share your servo motor model, drive type, and application details, and our team will recommend the optimal cable configuration for your needs.
