Servo motor cable quality directly influences how servo motor cable quality affects positioning accuracy and feedback stability in modern automation systems. In closed-loop servo applications, the drive relies on precise, noise-free data from the encoder or resolver to compare commanded motion with actual performance. A high-quality servo feedback cable preserves signal integrity through shielding, stable conductors, and robust construction, while a subpar cable can introduce noise, resistance changes, or intermittent faults that erode repeatability and trigger alarms.
Engineers and maintenance teams who understand these connections make better cable choices, reduce troubleshooting time, and achieve tighter positioning tolerances in CNC machines, robotics, and automated lines. This guide explores the feedback loop, key cable quality factors, common symptoms, and practical specification steps.
How Servo Feedback Supports Accurate Motion Control

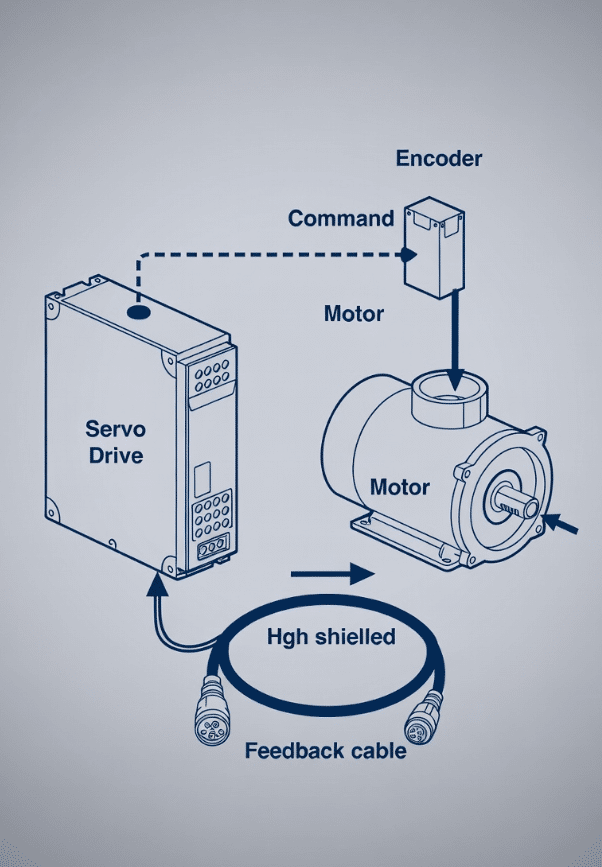

Servo systems operate in a closed loop where the drive continuously corrects motor behavior based on real-time feedback. The encoder or resolver measures shaft position and speed, sending this data back through the feedback cable so the controller can minimize following error and maintain smooth, repeatable motion.
Positioning Accuracy Depends on Accurate Feedback Data
Positioning accuracy is a system-level outcome. Even premium motors and drives cannot overcome degraded feedback. Unstable signals from the cable can produce position drift, inconsistent homing, jerky motion during direction changes, or hunting at target positions. These issues often appear alongside mechanical backlash or tuning problems, making cable inspection an essential part of root-cause analysis.
The Cable Carries Low-Level, High-Value Signals
Motor power cables deliver energy, but servo feedback cables transmit sensitive low-voltage signals carrying position, speed, and sometimes torque data. This information path is far more vulnerable to electromagnetic interference (EMI), vibration, and connection degradation than the power side. Protecting it requires deliberate cable design rather than generic wiring.
How Cable Quality Influences Positioning Accuracy and Feedback Stability
The cable does not increase encoder resolution, but it preserves the quality of the signals the encoder generates. Proper construction maintains signal integrity under industrial conditions, directly supporting stable control loops.
Shielding Reduces EMI and Crosstalk

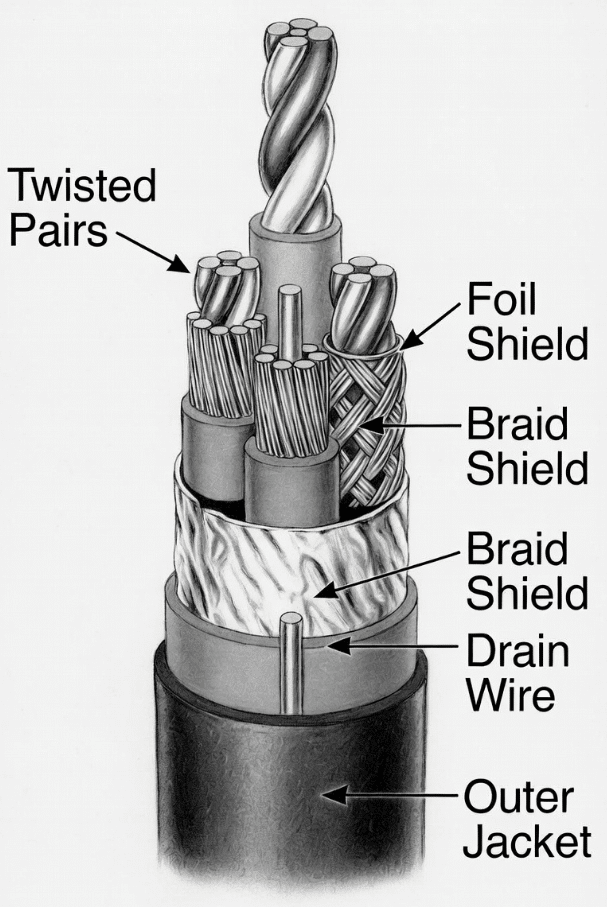

Factories contain abundant noise sources — VFDs, contactors, welding equipment, and nearby power cables. Effective shielding in servo feedback cables (foil, braided copper, or both) blocks external interference and contains emissions. Individual shielding of twisted pairs provides extra isolation for high-resolution encoders. Remember that shielding effectiveness depends on continuous coverage through connectors and proper termination per the drive manufacturer’s guidelines.
Twisted Pairs, Pair Geometry and Noise Rejection
Balanced twisted-pair construction in encoder cables helps cancel common-mode noise. Consistent twist rates and geometry maintain this benefit along the entire length, even during flexing. Poorly manufactured cables with loose twists or migrating pairs lose noise rejection, leading to encoder errors during operation.
Conductor Quality and Stable Electrical Resistance
Fine-stranded, high-purity copper conductors with secure terminations keep resistance low and stable. In dynamic applications, broken strands or marginal crimps create intermittent dropouts that only show up under motion or vibration. Quality cables maintain continuity through millions of flex cycles.
Impedance Consistency and Digital Feedback Signals
Many modern encoders use digital interfaces sensitive to impedance, capacitance, and reflections. Matching cable characteristics to the specific EnDat, HIPERFACE, or proprietary protocol helps prevent data corruption on longer runs.
Mechanical Durability Is Also Signal Quality
In moving axes, mechanical stress eventually becomes an electrical problem. Cables that survive only static bench tests often fail in real production environments.
Dynamic Motion Can Cause Intermittent Feedback Faults
Repeated bending, torsion, abrasion, or vibration can fatigue conductors, damage shielding, or crack jackets, allowing contaminants to enter. Symptoms typically appear at specific positions or after a certain number of cycles — classic signs of cable-related issues rather than constant faults.
Match Cable Design to the Motion Profile

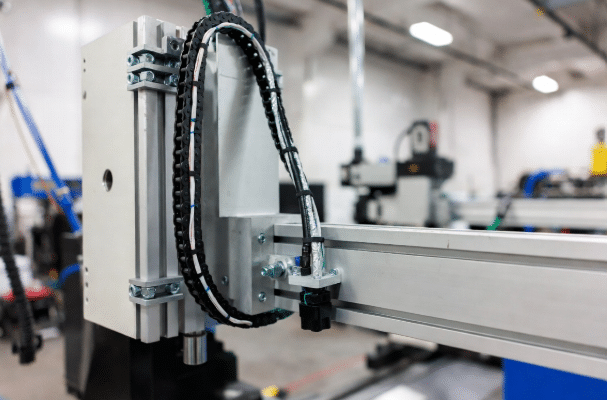

Choose constructions rated for continuous flex in drag chains, torsional movement in robot arms, or combined stresses. Key features include fine stranding, appropriate bend radius, reinforced jackets, and proper strain relief. Hulk’s servo and robot cables are engineered precisely for these demanding dynamic applications.
Connector and Grounding Quality: Where Good Cable Designs Can Still Fail
Even premium cable stock performs poorly if connectors compromise the signal path.
Connector Integrity Protects Feedback Continuity

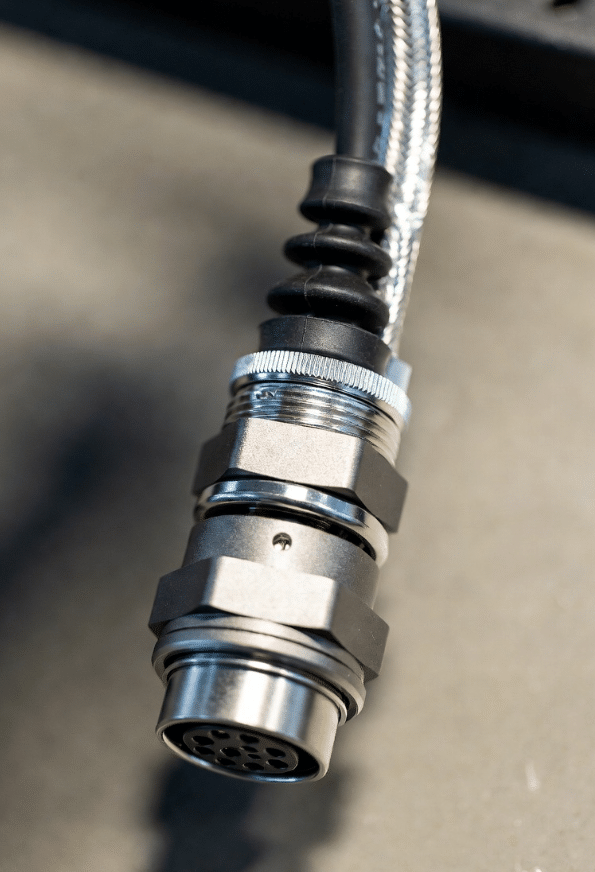

Inspect for bent pins, corrosion, loose crimps, damaged backshells, and inadequate strain relief. Problems often surface after maintenance or prolonged motion. Proper assembly preserves both electrical continuity and shielding effectiveness.
Grounding and Shield Termination Must Follow the System Design
Shield termination and grounding schemes vary by platform. Follow OEM recommendations for 360-degree contact or single-point grounding to optimize EMC performance and avoid creating noise antennas or ground loops.
Symptoms That May Point to Feedback Cable Quality Problems
Cable issues can mimic problems with encoders, motors, drives, or mechanics. Look for patterns tied to motion, temperature, or electrical activity.
Position Drift, Repeatability Changes and Following Errors
Cycling home positions, increased following errors during acceleration, or unstable settling often trace back to signal degradation when they correlate with cable movement.
Intermittent Encoder Alarms and Communication Dropouts
Faults that appear only during certain axis positions, after warm-up, or near noise sources frequently indicate compromised conductors, shields, or connectors.
Noise-Related Motion Instability
Jerkiness, unexpected speed variations, or nuisance trips in high-EMI environments call for checking cable separation, shielding continuity, and grounding.
How to Specify Servo Cables for Stable Feedback and Accurate Positioning
Provide detailed application data to your cable supplier for optimal results.
Define the Electrical and Interface Requirements
Share servo drive/motor models, encoder type, cable length, hybrid needs, and required shielding/grounding per manufacturer specs.
Define the Physical Installation Conditions
Detail motion type (flex, torsion), travel distance, cycle rate, environmental exposures (oil, coolant, temperature), and EMI considerations.
Do Not Treat Feedback Cable as a Commodity Item
Investing in properly engineered servo motor cables prevents costly downtime and scrap. Hulk Electric specializes in custom servo & motor cables, robot torsion cables, and high-flex solutions tailored to your exact mechanical and electrical requirements.
Practical Inspection and Maintenance Checklist
- Examine cable jackets for abrasion, cracks, flattening, or contamination ingress.
- Check routing inside drag chains or dress packs for pinching, over-bend, or rubbing.
- Inspect connectors, pins, backshells, and strain relief during planned downtime.
- Monitor alarm logs for patterns related to axis position, speed, or temperature.
- Verify shield continuity and grounding according to OEM documentation.
- Replace damaged assemblies rather than attempting field repairs that risk signal integrity.
For persistent positioning or feedback issues, our team at Hulk can review your servo platform, cable route, and motion profile to recommend optimized custom cable solutions that enhance long-term stability.
