In high-EMI industrial settings packed with VFDs, welders, and dense drive arrays, servo motor cables face constant electromagnetic challenges that can disrupt precise motion control. Designing servo motor cables for high-EMI environments requires more than grabbing off-the-shelf shielded wire—it demands deliberate choices in shielding construction, grounding methods, and physical routing to protect both power delivery and sensitive feedback signals.
Engineers who master these strategies see fewer encoder jitter issues, reduced drive faults, and smoother EMC compliance. This guide breaks down practical approaches drawn from real motion control applications in CNC machines, robotics, and automated assembly lines.
Understanding EMI in Servo Motor Systems
Servo systems thrive on clean signals, but factories rarely offer quiet electrical environments. High-EMI conditions arise wherever high-power switching devices operate near long cable runs or sensitive feedback loops.
Common EMI Sources Around Servo Motors

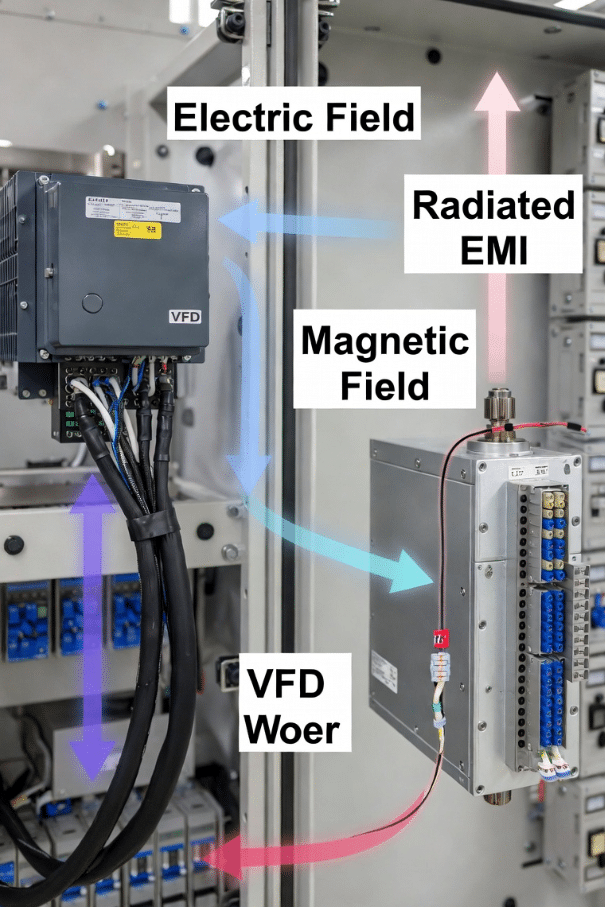

Nearby VFDs and induction motors generate strong magnetic fields through rapid current changes. Welding equipment introduces bursts of high-frequency noise, while radio transmitters or nearby power feeders add capacitive and radiated interference. These sources couple into servo cabling through electric fields, magnetic induction, or direct radiation.
Servo drives and feedback devices operate with fast-switching PWM signals and low-voltage encoder data, making them particularly vulnerable. A single poorly handled cable can turn a reliable system into one plagued by intermittent faults.
How EMI Affects Servo Motor Cables and Feedback
Corrupted resolver or encoder signals often show up as position jitter or unexpected axis drift in CNC work. Drives may report random overcurrent or communication errors when noise rides in on power or feedback lines. In robotic cells, this interference can propagate to nearby I/O networks, failing EMC tests or causing production stops.
One common scenario involves long servo runs parallel to power feeders in a material-handling machine, where induced voltages overwhelm the feedback pair and trigger emergency stops until proper separation and shielding are applied.
Selecting Shielding Types and Cable Constructions for High-EMI Servo Applications
Effective shielding starts with understanding how different constructions handle the mix of low- and high-frequency noise typical in servo installations.

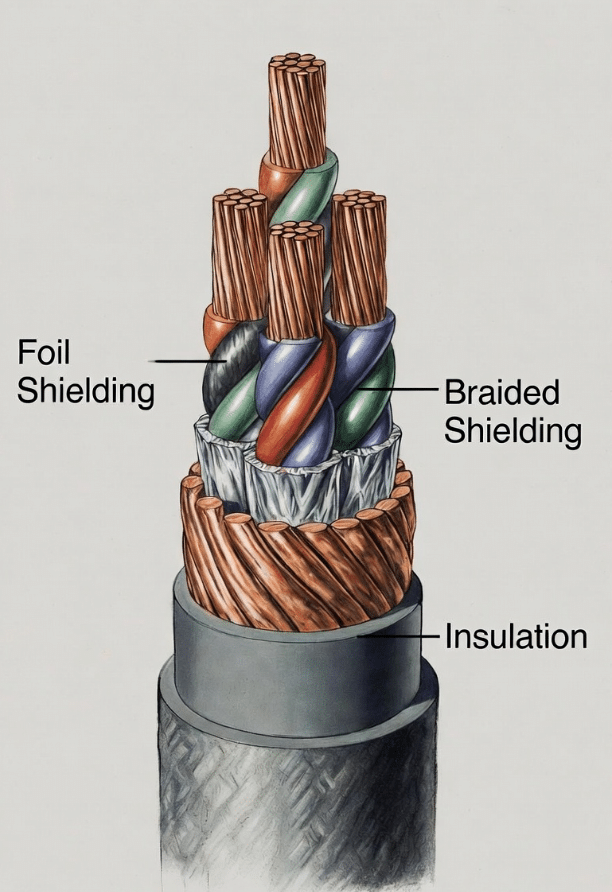

Foil Shields, Braided Shields, and Hybrid Combinations
Foil shields provide excellent high-frequency coverage thanks to their continuous surface, usually paired with a drain wire for convenient termination. Braided copper shields offer superior mechanical durability and better performance against lower-frequency magnetic fields, with lower transfer impedance.
Hybrid foil-plus-braid designs have become the standard for demanding servo applications because they address the full EMI spectrum while maintaining flexibility for cable carriers. Many high-performance servo cables include an overall shield layer specifically for EMI containment.
Shielded Power vs Shielded Feedback Cables
Power cables benefit from overall shielding that contains drive-generated noise and prevents it from radiating to other circuits. Feedback cables typically feature individually shielded twisted pairs plus an overall shield to guard delicate low-level signals against incoming interference.
In practice, both cable types work together: the power cable minimizes outgoing EMI while the feedback cable maximizes immunity.
Cable Geometry: Twisted Pairs, Pair Separation, and Loop Area
Tight twisting of conductor pairs dramatically reduces the loop area that picks up magnetic fields. Maintaining physical separation between power cores and feedback pairs inside the cable further limits internal crosstalk. Well-engineered servo cables control these geometries from the start, delivering noticeably better noise rejection in noisy plants.
Grounding Best Practices for Servo Cable Shields
A perfectly shielded cable still fails if the shield is not grounded properly. Grounding turns the shield into an effective barrier rather than a noise collector.
Single-End vs Both-Ends Shield Grounding
For shorter runs or primarily low-frequency concerns, grounding the shield at one end—usually the drive or control cabinet—often avoids ground loops. In longer cables or high-frequency EMI environments common to servo systems, grounding at both ends provides a better return path for noise currents, provided the system ground is low-impedance and equipotential.
Always consult the specific drive and motor OEM recommendations, as application notes vary by platform.

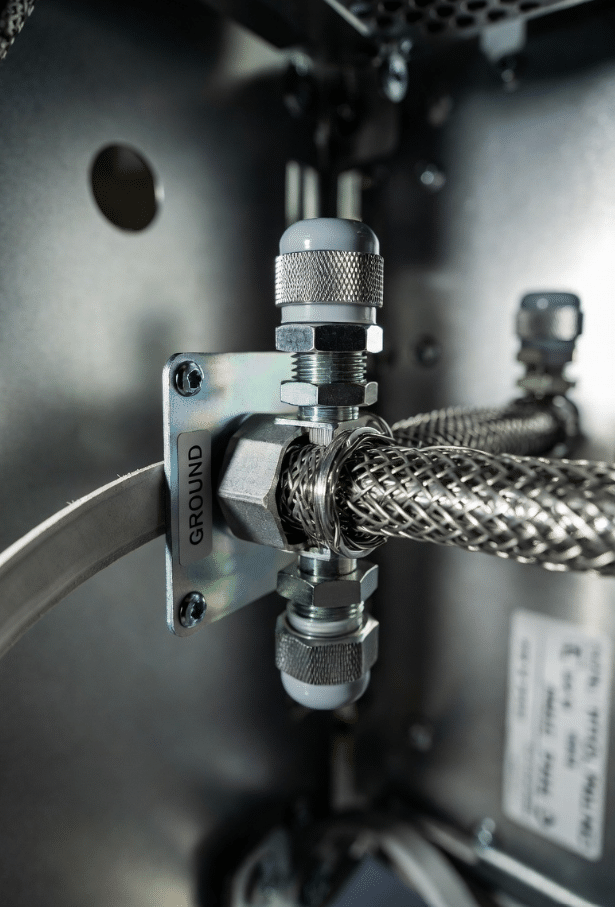

360° Shield Termination and Avoiding “Pigtails”
Long pigtail wires add inductance that defeats high-frequency shielding. Instead, use 360° circumferential clamps, conductive backshells, or EMC glands that maintain full contact around the shield. This low-impedance connection lets noise currents flow safely to ground without entering signal conductors.
Grounding Strategy in Servo Panels and Machines
Establish a solid star or single-point ground reference within the panel. Bond shield clamps directly to the chassis ground plane. Keep shields dedicated to EMI mitigation—do not use them as power return paths. Proper bonding of enclosures and short, wide grounding straps complete the system.
Routing and Segregation: Keeping Servo Cables Away from EMI Sources
Physical layout often determines success as much as the cable itself.

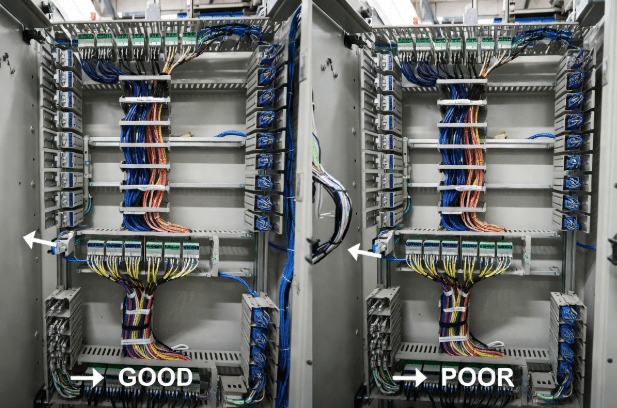

Separation Between Power and Feedback Cables
Keep encoder or resolver cables at least 12 inches (30 cm) away from motor power cables when possible. Use separate cable trays or conduits, and cross power and signal lines at right angles only when necessary. These steps minimize inductive and capacitive coupling.
Enclosure-Level Shielding and Cable Entry Considerations
Metal enclosures bonded to ground form the outer Faraday cage. Choose quality EMC cable glands and connectors at entry points. Internal layout should route high-power lines away from sensitive modules.
Loop Area and Wiring Geometry
Minimize large loops in any wiring by routing returns close to outgoing conductors and keeping exposed lengths short after shield termination. Smaller loops mean less induced voltage from changing magnetic fields.
Diagnostic Tips and Common Mistakes in High-EMI Servo Cabling
Typical Shielding and Grounding Errors
Floating shields, arbitrary grounding points, long pigtails, and both-end grounding without managing ground potential differences frequently create new problems. Each mistake can introduce shield currents that inject noise directly into the system.
Simple Diagnostic Techniques for EMI Issues
Wrap suspect cables temporarily with grounded copper foil to test electric field coupling. Reroute feedback cables away from power lines as an experiment. Verify shield continuity and termination quality with a multimeter. Document before-and-after behavior to confirm fixes.
When to Involve EMC or Motion Specialists
Persistent issues despite solid cabling, repeated EMC test failures, or complex multi-axis systems with mixed signals benefit from expert review. Vendors and specialists bring proven checklists tailored to specific platforms.
Practical Design Checklist for High-EMI Servo Motor Cabling
- Map all EMI sources and sensitive receivers in the installation.
- Choose hybrid foil-braid shielded cables matched to power and feedback requirements.
- Define grounding scheme (single vs both ends) per OEM guidance and cable length.
- Implement 360° terminations and low-impedance bonds.
- Plan physical segregation and minimize loop areas throughout the machine.
- Document the complete cabling design and validate against EMC standards.
Questions to Ask Cable Vendors and Drive/Motor OEMs
- What shield constructions and grounding recommendations apply to your servo cables in high-EMI settings?
- Do you have EMC test reports or detailed application notes for noisy environments?
- What minimum separation distances and routing layouts work best for power versus feedback?
- How should shield clamps and terminations be implemented with your connectors and drives?
