Inverter-driven systems have transformed industrial automation, delivering precise speed and torque control for servo motors in everything from CNC machines to robotic arms and conveyor lines. Yet this performance comes with electrical side effects: high-frequency PWM switching creates steep voltage edges (dv/dt) and common-mode voltages that can damage motor bearings and generate disruptive EMC noise.
Choosing and installing the right servo cables in VFD and inverter-driven systems is one of the most effective ways to steer common-mode currents safely back to the drive instead of through bearings or nearby equipment. At Hulk Electric, we’ve supported countless OEMs and integrators with VFD-rated cables that minimize these risks while maintaining signal integrity and mechanical flexibility.
How VFD and Inverter Outputs Affect Motor Cables and Bearings
Traditional sine-wave supplies produce relatively smooth voltages, but VFDs and servo inverters use pulse-width modulation (PWM) to synthesize AC output from a DC bus. This rapid switching introduces challenges that directly impact cabling and motor longevity.
PWM Switching, dv/dt, and Common-Mode Voltage
Each PWM pulse creates fast-rising voltage transitions—often thousands of volts per microsecond. These edges generate high-frequency currents through the cable’s capacitance to ground and the motor’s internal capacitances (stator-to-rotor and rotor-to-frame). The result is a shifting common-mode voltage between the motor phases and ground, driving stray currents that seek the lowest-impedance return path.
Paths for Common-Mode Currents: Cables vs Bearings
Ideally, these currents return through the cable shield and grounding conductors to the drive. In practice, poor cabling lets them flow through the motor frame, shaft, and bearings—causing electrical discharge machining (EDM) that pits bearing races and leads to premature failure. Uncontrolled currents can also radiate EMI, affecting encoders, PLCs, and nearby sensors.
Choosing VFD-Rated Servo Cables to Control EMI and Bearing Currents
Not every flexible cable handles inverter output effectively. VFD-rated servo cables are engineered specifically for these conditions.
Cable Insulation and Dielectric Properties
Look for robust insulation like XLPE or specialized compounds that withstand repetitive high dv/dt stress without partial discharge or degradation. Lower dielectric constant materials help reduce capacitive charging currents, which is especially important on longer runs. Hulk’s servo and motor cables are built with these properties in mind to support reliable operation in demanding automation environments.

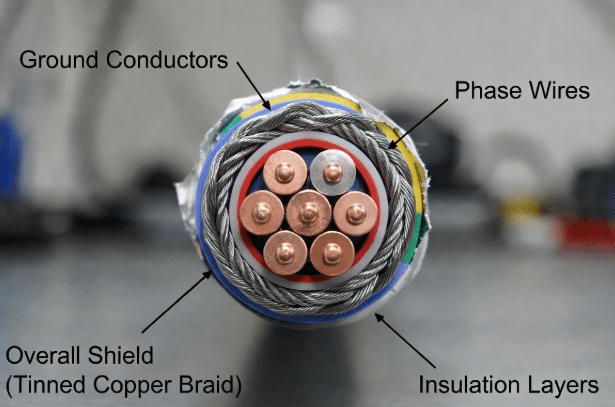

Shield Design and Symmetrical Grounds
Effective shielding provides a low-impedance path for common-mode currents. Key features include:
- Continuous tinned copper braid or foil shields for high-frequency performance.
- Symmetrical grounding conductors (typically three PE wires arranged evenly around the phases) that balance currents and reduce circulating bearing currents.
These designs, combined with overall shielding, minimize both EMI radiation and bearing stress.
Cable Geometry, Length, and Standards
Longer cable runs amplify capacitive effects and voltage reflections. Follow drive manufacturer guidelines on maximum length and consider reactors or filters when necessary. Industry references like IEC 60034-25 emphasize symmetrical, shielded cables for inverter-duty applications.
Grounding and Shield Termination Practices to Avoid Bearing Currents
Cable selection matters, but installation determines real-world performance.

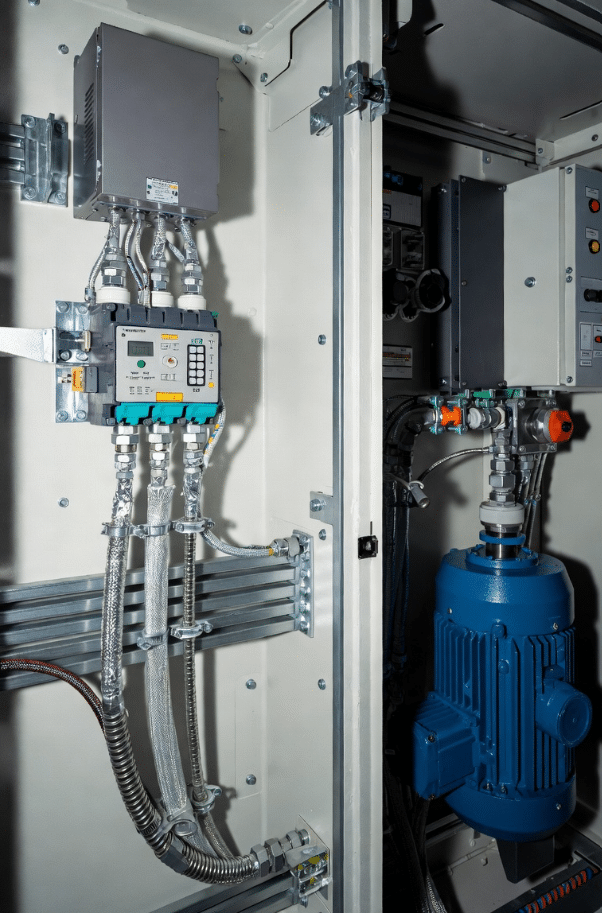

360° Shield Bonding at Drive and Motor Ends
Use EMC glands or 360° shield clamps at both the drive enclosure and motor terminal box. This full circumferential contact handles high-frequency currents far better than pigtail drain wires alone, thanks to skin effect. Proper bonding creates the preferred low-impedance return path.
Dedicated Ground Conductors and Bonding of Structures
Include dedicated symmetrical PE conductors in the cable and bond motor frames, enclosures, and cable trays with wide, low-inductance straps. All grounds should tie back to a common potential at the drive cabinet to equalize potentials and prevent loops.
Avoiding Unshielded Cables in Conduit and Ground Loops
Unshielded conductors in conduit can still create EMI issues and unintended current paths. Shielded VFD-rated cables with proper terminations outperform this approach in most cases.
EMC and Cable Routing: Protecting Control and Feedback Lines
Motor cables can induce noise in sensitive servo feedback and control wiring.
Physical Separation and Crossing Angles
Maintain recommended separation distances between power and signal cables. Cross them at 90° angles when necessary to minimize inductive coupling.
Panel-Level EMC Practices
Use properly bonded metal enclosures, input filters, and single-point grounding schemes. Shielded feedback cables (like those in Hulk’s sensor and actuator lines) further protect encoders and resolvers.
Filters, Reactors and How Cabling Interacts with Them
dv/dt filters, common-mode chokes, or sine-wave filters reduce voltage stress on long runs. They work best alongside correctly specified and grounded shielded VFD-rated servo motor cables.
Bearing Protection Options Beyond Cabling
Cabling and grounding handle most issues, but additional measures help in high-risk applications.
Insulated Bearings and Shaft Grounding Rings
Insulated bearings break current loops through the rotor. Shaft grounding rings (brush-style) safely divert currents before they reach the bearings. These are valuable for large motors or very long cable runs.
When to Consider Additional Protection
Evaluate motor power, cable length, and uptime requirements. Collaborate with drive, motor, and cable suppliers for integrated solutions.
Practical Checklist: Designing Servo and VFD Cables to Avoid Bearing Currents and EMC Issues
- Confirm inverter output parameters and expected cable length.
- Select VFD-rated shielded servo cables with symmetrical grounds and robust insulation.
- Plan 360° shield terminations at both ends.
- Design low-impedance grounding and structural bonding.
- Route power and control cables with proper separation.
- Add filters or bearing protection where risk remains.
Questions to Ask Suppliers:
- What shield termination and cable types do you recommend for this drive/motor combination?
- What is the maximum recommended cable length, and when are filters advised?
- How should grounding be designed for optimal common-mode current management?
By applying these principles, plants achieve smoother operation, longer motor life, and easier EMC compliance. Hulk Electric’s high-flex servo and motor cables are engineered precisely for these inverter-driven challenges—offering the shielding, flexibility, and durability automation engineers need.
Share your system details with our team, and we’ll help specify the right servo cables in VFD and inverter-driven systems for reliable, trouble-free performance.
