Low smoke zero halogen (LSZH) cables are special cables designed to generate a low amount of smoke and no halogen gases in the event of a fire and are made from both jacket and insulation materials. This design directly enhances visibility during emergency situations, reduces toxic fumes and prevents the sensitive electronics from corrosive damage and would be beneficial in cases of standard PVC cable would cause another hazard in highly occupied or enclosed installations.
At Hulk Electric, we offer halogen-free cable solutions, as part of our mission to provide safer, more reliable industrial automation and infrastructure applications. For those engineers and specifiers who need to understand the basics of LSZH, it helps them select the proper cable type for fire sensitive applications.
Defining LSZH – What “Low Smoke Zero Halogen” Actually Means
LSZH stands for cable whose outer sheath and insulation are made with thermoplastic or thermoset materials that are free from halogen elements like chlorine, fluorine, bromine or iodine. These materials produce much less dense smoke and no corrosive halogen acid gases in a fire.
“Low smoke” property helps to maintain the visibility of escape routes and signage. The “zero halogen” feature helps to avoid the emission of acids which can irritate lungs and eyes, corrode metalwork and circuit boards.
How LSZH Differs from PVC and Other Conventional Cable Materials

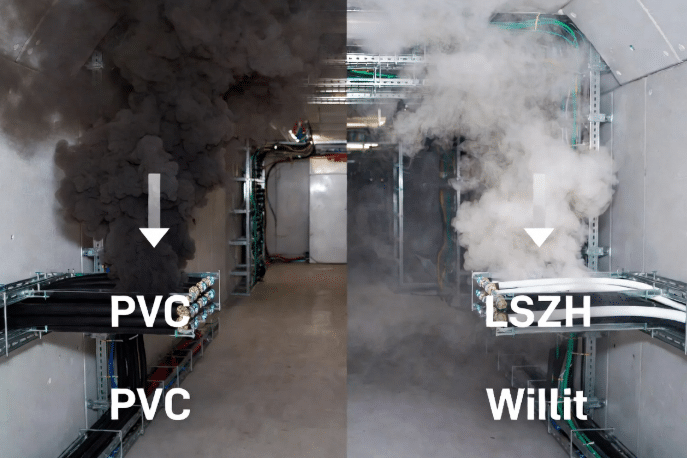

Clorine is a component of traditional PVC cables. They burn off to produce dense black smoke and hydrogen chloride (HCl) gas, causing immediate health hazards and damaging equipment in the long-term through the release of hydrogen chloride gas (HCl).
In contrast, LSZH compounds do not drip and give off translucent white smoke in much smaller quantities and do not emit acid gases. A fire in a cable tray within a tunnel or control room can easily fill a room with PVC smoke which can make room exits and fire extinguisher access difficult; LSZH products can help keep the room free of smoke.
Common Acronyms and Terms (LSZH, LSOH, LS0H, Halogen-Free)
LSZH, LSOH, and LS0H will be used interchangeably. An alternative wording is “halogen-free” but the relevant criteria are still confirmed low smoke density and absence of corrosive gas emission. Don’t assume fire performance test references when it comes to marketing claims; always check manufacturer datasheets.
Fundamentals of LSZH Material Behaviour in Fire Scenarios
The performance of LSZH is due to the carefully formulated compounds, which are designed to fulfil the main electrical and mechanical functions without compromising fire safety. The materials have been developed to minimise by-products of combustion in three key areas: smoke density, toxic properties and corrosive gas production.
Smoke Density and Visibility – Why “Low Smoke” Is More Than a Marketing Claim
Usual smoke from cable can obscure the emergency lighting and emergency signage in a matter of minutes, in enclosed areas. LSZH materials are designed to reduce smoke emissions, maintaining visibility in escape routes within corridors or tunnels as well as in equipment rooms. This distinction is a benefit in evacuation and provides firefighters with working conditions.
Toxic and Corrosive Gases – The “Zero Halogen” Impact on People and Equipment
The halogen acids found in PVC may lead to respiratory problems and can etchant copper conductors, steel structures and electronic components following a fire in an aggressive manner. These acids are removed from the air with LSHZ cables, thus preventing immediate harm and expensive repair work after the fire in data centers, control cabinets and process plants.
Safety Benefits of LSZH Cables in Real Installations
LSZH assigns material properties to measurable gains in human safety, asset protection, and compliance.
Protecting People in Enclosed or High-Occupancy Spaces
Rapid evacuation is crucial in tunnels, airports, hospitals, schools and large public buildings. LSZ cables help to keep the air clear and the view clear, which helps minimize the risk of panic or disorientation if several people are using a narrow escape route.
Protecting Electronics and Infrastructure from Corrosion
Highly expensive electronic components are subject to acid damage in control rooms, in server racks and in automation systems. LSZH helps to reduce the byproducts of corrosive, thus maintaining functionality and reducing fire downtime and repair expenses.
Aligning with Modern Fire-Safety and Building Requirements
Today, low smoke and halogen-free cables are required throughout many building codes, transport codes and project specifications in critical locations. As expectations regarding smoke and toxicity continue to grow, it is important for specifiers to ensure local requirements are met.
Typical Use Cases and Installation Environments for LSZH Cables
LSZH cables are used in applications where the behaviour of fire has a direct impact on safety and/or the operational continuity.
Buildings and Public Infrastructure (Tunnels, Airports, Hospitals, Schools, Data Centers)
Cable runs in escape routes, public areas, IT rooms and high occupancy areas are common areas where LSZH needs to be used to ensure smoke control and visibility. This is particularly advantageous for data centers and control facilities as they are less likely to suffer corrosion of sensitive equipment.
Rail, Mass Transit and Rolling Stock
Railway cars and underground stations require low smoke and halogen-free operation to ensure passenger safety and system reliability. LSZH compounds are often used for onboard wiring, signaling and communication cables.
Industrial Plants, Control Rooms and Automation Systems
In manufacturing plants, LSZH cables are used for vital control circuits, MCC rooms, and safety systems in the vicinity of electronics. They are not required on all plant areas, but where cable density is high or downtime costly, they are very useful in reducing risk.
When LSZH Is Required vs When It Is Simply a Good Idea
In some projects, the specification or tender documents explicitly include the requirement for “LSZH” or “halogen-free” products. Some leave it to the Engineer’s discretion, based on risk assessment.
Reading Project Specifications and Tender Documents for LSZH Requirements
Search for the terms “low smoke zero halogen” or “LS0H” or mention particular fire-performance clauses. Always check the purpose of standard cables before assuming they do.
Risk-Based Scenarios Where LSZH Adds Safety Even If Not Mandatory
Installing LSZH may be a good investment in older buildings, upgrades in areas with high electronics density, or for expansions to transport infrastructure. When making a decision, take into account occupancy, nature of enclosure, evacuation difficulty and potential equipment loss.
Limitations and Trade-Offs of LSZH Cables
There are distinct safety benefits to using LSZH, but it does not suit every use.
Cost and Performance Considerations Compared to PVC and Other Materials
LSZH compounds typically cost more than standard PVC. They may also exhibit different flexibility or mechanical characteristics, so review datasheets carefully for applications involving extreme bending or abrasion.
Compatibility with Glands, Connectors and Accessories
LSZH compounds generally are more expensive than regular PVC. They can also have differing flexibility or mechanical properties – check datasheets for applications involving extreme bending or abrasion.
Practical Guidance – How to Decide Whether LSZH Is Right for Your Project
Compare your setup with important considerations such as space usage, enclosure, electronics sensitivity, regulatory environment, and long-term risk tolerance.
Simple Checklist for Engineers and Project Managers
- Is the cable route enclosed and/or within an evacuation critical area?
- What are the number of persons or critical systems that rely on clear visibility and air quality?
- Do there exist sensitive electronics that would be likely to suffer expensive damage from corrosion?
- Are local codes, client policies or project specs referring to LSZH or Halogen free?
- What are the mechanical and cost considerations when compared with conventional cables?
Use this checklist when you start designing or planning a retrofit. .
Closing Guidance – LSZH as Part of a Broader Fire-Safety and Reliability Strategy
LSZH cables are part of an all-round fire-safety strategy. Well chosen and correctly installed, they will provide additional protection for individuals and property, but not as a substitute for proper cable management or any system design.
Our cables for use in the real world are engineered at Hulk Electric (Dongguan) Co., Ltd. to meet the actual conditions. We provide custom solutions, complete documentation and technical support for engineers to their environment. Please let us know your project parameters and we will help you determine the best LSZH or complementary cable for your project.
