Silicone cables are very flexible and can withstand high temperatures, resist fire, and are very durable, so they are ideal for use in appliances and heating equipment. The special cables ensure flexibility and insulation properties even after numerous thermal cycles, hot spots and challenging conditions, which help manufacturers to lower safety hazards, prevent early failures and comply with strict safety regulations.
We have helped many OEMs and equipment builders with specialized high-temperature silicone cables specifically designed for these applications at Hulk Electric. This handout provides practical tips for why silicone is superior to traditional designs and which cables should be used to create safe, reliable designs.
Why Appliances and Heating Equipment Place Special Demands on Cables
The harsh environment in which appliances and heating systems operate are different from the common place. With repeated thermal cycling, localized hot spots, moisture, vibration and confined spaces hasten wear of conventional cables. Ovens, stoves, coffee machines, dishwashers, boilers, heat tracing systems, industrial heaters, HVAC and thermal control.
Under this stress, conventional PVC wiring will tend to harden, crack and lose insulation properties. This means safety risks, downtime and compliance issues. Silicone cables tackle these challenges head-on, offering enhanced thermal stability and mechanical durability.
High-Temperature Performance of Silicone Cables in Appliances
Continuous Operating Temperature and Thermal Cycling
The typical continuous operating life for high-temperature silicone cables is -60°C to +180°C or +200°C with special compounds capable of short-term hot peaks as high as 250- or 300°C. They are flexible and insulating through thousands of heating cooling cycles, which is important for appliances that heat and cool so often.
This stability means that there is no cracking or embrittlement that is seen in other materials that can happen and cause equipment to lose its effectiveness during service.
Resistance to Thermal Aging and Insulation Failure
Silicone rubber compounds are designed to have good thermal stability. They have superior resistance to break down compared to lots of thermoplastics, and they retain their qualities of resisting electricity and strength when subjected to prolonged heat. It lowers the chance for insulation failure and enhances the overall reliability of the equipment in intensive heat applications.
Safety Aspects – Flame Behavior, Smoke and Halogens
Flame-Retardant and Fire-Resistant Silicone Cable Formulations

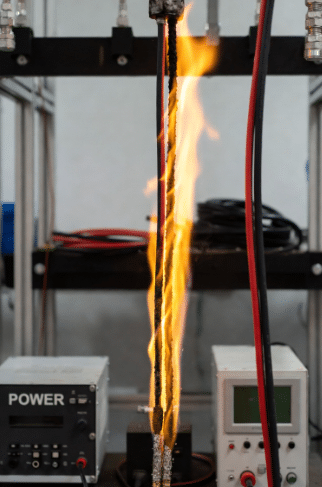

Base silicone is heat resistant but flame retardant grades meet high test standards such as UL758 VW-1. These formulations reduce the spread of flames and produce a protection film that resembles a ceramic barrier in a fire, which allows sufficient time to shut down the circuits safely.
Low Smoke and Halogen-Free Advantages
Silicone cable is a halogen-free material that can be made as LSZH (Low Smoke Zero Halogen). Silicone gives off relatively small volumes of smoke compared to PVC which gives off dense corrosive smoke and toxic gases when burned. This is important in enclosed appliance spaces in commercial kitchens and where fire safety and air quality are important.
How Flame-Retardant Cables Support Appliance Safety Standards
The Flame Resistant Silicone Cables are designed to comply with UL, IEC and other safety standards. They reduce the spread of fire, which allows additional time for protective systems or evacuation, a critical component of household and commercial appliances.
Electrical Reliability – Insulation Integrity and Leakage Risk
Stable Dielectric Properties and Insulation Resistance at Elevated Temperatures
Silicone insulation has high insulation resistance and great dielectric strength throughout the temperature range. This helps to avoid leakage currents and short circuits that can rapidly develop in a location such as near the heating elements or within a confined space.
Long-Term Circuit Integrity Under Heat and Mechanical Stress
Combined thermal, mechanical and electrical stresses such as assembly bending, operational vibration and constant heat are all resisted by silicone cables. They provide reliable circuits in oven wiring, heat tracing and industrial heater controls.
Typical Appliance and Heating Equipment Applications for Silicone Cables
Household and Commercial Kitchen Appliances
Silicone cables are used in ovens, cookers, microwave ovens, coffee machines, dishwashers for connections to heating elements, thermostats, sensors and control wiring. These cables have much better heat, moisture and cycle resistance than PVC.
Industrial Heaters, Boilers and Thermal Process Equipment
Silicone cables are used in factory applications such as industrial oven, furnace, heat tracing and electric heaters. They provide reliable service close to heat sources.

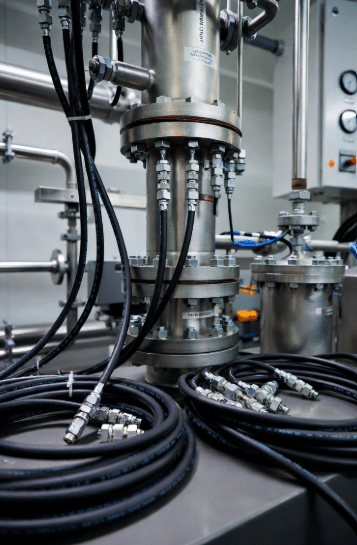

HVAC, Autoclaves and Medical or Laboratory Heating Devices
Silicone cables are used for sensors and power circuits in HVAC systems, sterilization equipment and lab heaters in a high temperature and humidity environment.
Design and Specification Considerations for Safe Silicone Wiring in Appliances
Choosing the Right Temperature Class and Insulation Thickness
Correlate the temperature rating and thickness of the cable to the actual continuous and peak operating and safety margins for hot spots and for cable aging. Hulk’s engineering team helps optimize these specifications.
Selecting Flame-Retardant and LSZH Silicone Cable Families
Indicate grades where necessary, based on certified VW-1 or equivalent performance and LSZH properties.
Routing, Strain Relief and Thermal Isolation
If possible, move cables away from the direct contact of the heating element. Ensure that strain relief is used, that it’s not bent near hot surfaces and that there are thermal shields to ensure long service life.
Comparing Silicone Cables with Conventional Appliance Wiring (PVC, XLPE)
PVC and XLPE Performance Under Repeated Heating Cycles
PVC tends to harden and crack during thermal cycling, XLPE has good heat resistance, but is not as flexible and has a different flame attribute as PVC. Silicone offers excellent overall performance in high heat applications.
Cost vs Safety and Lifecycle Trade-Offs
Silicone cables might cost more, but they lower maintenance, replacement and safety hazards throughout the equipment’s lifetime, making them a better total value, particularly in safety-critical applications.
Practical Checklist – When to Specify Silicone Cables in Appliances and Heating Systems
- Do operating temperatures consistently exceed 90°C and cycling near high set points?
- Do there appear to be areas or pockets that heat up and become trapped?
- Are the application requirements for flame retardant, low smoke and halogen free cable?
- Is long-term flexibility and insulation integrity critical for safety or uptime?
- Do relevant standards (UL, IEC, VW-1, LSZH) apply to your product?
By working closely with a manufacturer with extensive silicone cable production expertise such as Hulk Electric, the selected silicone cables will be able to satisfy your design, certification and performance requirements.
Ultimately, the proper high-temperature silicone cables for appliances and heating systems help to keep users safe, reliable and compliant in the long run. Our high-temperature silicone cables are custom-made to suit exactly these challenging applications by Hulk Electric (Dongguan) Co., Ltd., which is UL recognized. Talk to us about your equipment needs and we’ll design safer and more durable solutions.
