The first step in selecting the correct drag chain cable design is to determine your motion profile. Whether a cable can provide millions of reliable bends or fail early in your automation system is determined by travel distance, speed, acceleration and the number of cable cycles. With continuous flex cables, many engineers assume that they are interchangeable and find that a design that works well at pick-and-place applications does not work as well with long travel cranes or gantries that move at higher speeds.
We at Hulk Electric have been helping OEMs and automation integrators in various industries for the past many years by designing drag chain cables as per their motion requirements, thus providing maximum flexibility. This guide explains the three primary motion profiles and how to optimize cable construction, stranding, jacketing and chain layout to ensure long service life and maximum uptime.
Understanding Motion Profiles in Drag Chain Applications
A motion profile is the basis for the selection of the drag chain cable. It integrates cable distance, speed and frequency of cable motion and physical support of the energy chain. All these details are ignored and conductor fatigue, abrasion or corkscrewing occurs even with the use of “high-flex” rated products.
Key Motion Parameters: Travel, Speed, Acceleration, and Cycles
Just when you are considering cables, there are 4 important elements to take into account:
- Stroke/travel length: short (less than 2m) versus long (5-30+ m).
- Speed: From moderate to near the upper limits for drag chains (several m/s).
- Acceleration: Fast changes that increase dynamic loads.
- Cycle count: The number of times the cycle is expected to bend; typically millions for continuous use.
It is much more accurate to describe the actual continuous-flex needs with these parameters and environmental conditions, such as temperature and contaminants, than with generic catalog ratings.

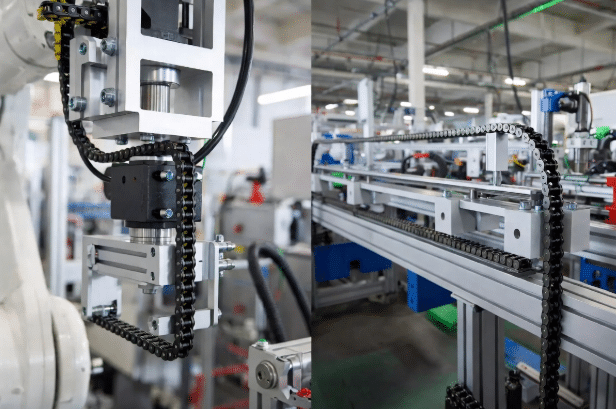

Grouping Applications into Short-Stroke, Long-Travel, and High-Speed Profiles
In short stroke applications, the distance (usually less than or equal to 2 metres) is very short, whereas the cycle frequency is very high (like pick and place heads or packaging actuators).
Long travel systems are those with long distances and guide troughs, typical in large gantries, cranes and automated storage/retrieval.
Fast profiles, such as for high-speed shuttles, high throughput packaging lines, dynamic CNC axes, drive velocity and acceleration to new limits. Many machines have multiple profiles across multiple axes and therefore need to have customized cable solutions for each axis.
Short-Stroke Motion Profiles – High Cycle, Compact Travel
For short-stroke applications, cables with high bending resistance and high speed resistance are required to withstand repeated bending in a limited space. With a few parts, the amount of cycles can reveal weaknesses in conductor lay or in the stranding.
Typical Applications and Mechanical Conditions
These are used in assembly robots, packaging machines and short CNC axes, where the cable switches direction thousands of times during a shift. Conductors and jackets under tight conditions suffer from high stress from fatigue, because there are frequent changes of direction and high acceleration.
Cable Design Priorities for Short-Stroke Applications
Use fine stranded, highly flexible conductors that have the optimum pitch and lay to help prevent conductor corkscrewing. A small minimum bend radius allows fitting of compact chains and a balanced layering reduces migration of the core. Jackets should be flexible enough to prevent abrasion during repeated contact in the chain, but still provide adequate protection.
Drag Chain and Layout Considerations for Short-Stroke Axes
For unsupported or lightly guided chains, employ short chains with adequate strain relief at each end. Keep fill ratios at recommended levels (approx 60%), not letting power, signal and data cables get in each other’s way, etc. Stress concentrations at connectors are avoided by correct clamping.
Long-Travel Motion Profiles – Supporting Distance and Weight
When longer travel distances are used, the weight management becomes more important, as well as abrasion resistance and stable gliding characteristics in the guide troughs.

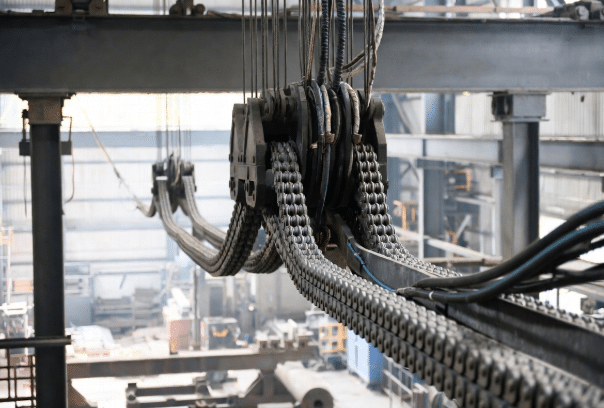

When Travel Distance Turns a Standard Drag Chain into a Long-Travel System
At a distance of more than a few meters, unsupported chains are impractical. Guide troughs and gliding designs carry the cable weight and prevent sag and they also have continual sliding contact which can increase the wear on the jackets if the appropriate material is not used.
Cable Construction and Materials for Long-Travel Applications
Use tough outers that have great abrasion resistance and low friction. Resilient inner structures spread the load over length, and low smoke, halogen-free compounds are ideal for various industrial applications. For long runs, flat cable designs may help to control the dynamics.
Managing Weight, Fill Factor, and Chain Support
Determine the total weight of the cable and stick to conservative fill factors. Regular inspection points allow for detection of early wear, and separators within the chain prevent tangling.
High-Speed Motion Profiles – Speed, Acceleration, and Shock Loads
All mechanical stresses are magnified in high-speed applications. Rapid acceleration without vibration damage or “snap loading” is the challenge for cables and chains.
Defining “High-Speed” in Drag Chain Systems
Normally this will be several metres per second and at high acceleration. These conditions are observed in automated warehouse shuttles; fast moving packaging and CNC tooling.
Cable Design Adjustments for High-Speed Motion
Highlight symmetric conductor design and robust shielding and therewith ensure signal integrity during vibration. Jackets should have very good dynamic performance and could be enhanced with special compounds that minimize the heat buildup within the jacket during rapid cycling.
Chain Geometry, Support, and Vibration Control for High-Speed Systems
Self supporting chains are suitable for medium length runs, longer runs require accurate guidance. Always follow minimum bend radius and employ internal dividers to guide and muffle cable vibration.
Avoiding Common Failure Modes by Matching Design to Motion
You don’t have to experience unpredictable issues when you don’t have matched designs. Knowing why a failure occurred can help the engineer to make the right initial selection.

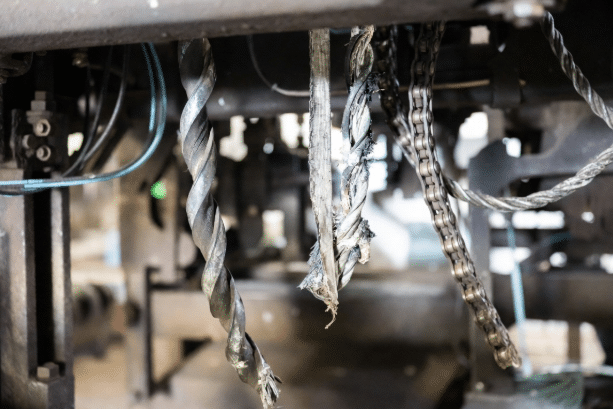

Typical Failures When Cable Design Does Not Match Motion
- Corkscrewing and core migration: Usually due to asymmetric lay or inadequate core migration under the high cycles.
- Abrasion or cracking of the jacket: Worn out or cracking jacket over time of gliding long travel or exceeding fill ratio.
- Conductor Breakage: Due to insufficient strain relief or bend radius exceeded during acceleration.
- Signal problems: Degradation of shielding in high speed or high flex applications.
Realistic Case Snapshots: Short-Stroke, Long-Travel, High-Speed
A stiff cable for a catalog packing machine began to corkscrew after a few months of high cycle packing; the problem was solved by changing the packing machine to a finely stranded, balanced packing head. A long-travel gantry was damaged by wear of its jackets due to the lack of optimization of the cable for gliding friction, use of a more abrasion resistant compound extended its life by many times. A high-speed shuttle lost connection with the signals from time to time until custom shielding and vibration dampened construction matched the acceleration profile.
Practical Steps for Matching Cable Designs to Your Motion Profile
Have a clear process to eliminate guesswork.
Step-by-Step Matching Process for New Designs
- Identify each axis according to the motion profile (short stroke, long travel, high speed or hybrid).
- Record accurate parameters: distance, speed, acceleration, number of cycles, and conditions.
- Explain the concepts of chain type, chain length, bend radius and support method.
- Evaluate other needs such as chemical exposure or EMC needs.
When to Move from Catalog Cables to Custom Designs
Moderate duty will take standard options. Use custom when you have unusual cycle counts, a long travel combined with high speed, limited space, or tough environments. Custom engineering from Hulk guarantees conductor stranding, shielding and jacket, which exactly match your motion profile.
Final Guidance – Treat Motion Profile as a Design Input, Not an Afterthought
To ensure reliable automation, it is essential to consider drag chain cable design as part of engineering a motion system. Providing your cable partner with detailed information about motion in the field avoids failures, decreases maintenance and minimises TCO. Hulk’s team focuses on cables for drag chains that are designed specifically for these diverse requirements.
Provide application information (travel distances, speeds, cycle expectations and machine layout), and we will assist you in crafting the best continuous flex cable solution for your machine.
