The selection of the LSZH jacket and insulation materials is crucial in determining the safety of a fire and the reliability of the cables for long-term use in confined installations. These materials dictate the amount of smoke that can be generated, the formation of corrosive gases and the electrical and mechanical performance of the cable under stress in environments where there is a lack of ventilation and/or evacuation or protection of the equipment is essential.
The engineers who design cables for tunnels, data centers, high-rises, hospitals, rail applications, and marine cabins know that there are significant variations in standard PVC cables and those that are engineered.The engineers who design cables for tunnels, data centers, high-rise buildings, hospitals, rail systems, and marine cabins recognize that there are differences between standard PVC and properly engineered cables that can mean clear escape routes, reduced equipment corrosion, and fewer surprises during operation. This guide will explore the implications of these material choices.
LSZH Jacket and Insulation – What They Do Differently in a Fire
The outer jacket and inner insulation layers are made from compounds that produce less harmful by-products when burned, which is known as Low Smoke Zero Halogen (LSZH). They do not smoke as do conventional halogenated materials and do not release halogen acid gas into the atmosphere and they are frequently formulated with flame retardant additives which encourage self-extinguishing properties.
Smoke Density and Visibility in Confined Installations
Under conditions where cables are confined, like underground tunnels, cable basements, or server rooms, heavy smoke can quickly cause visibility to drop to near zero, making it difficult to evacuate and fight fires. LSZH jacket and insulation materials are engineered to yield substantially reduced smoke density, which means that the smoke is lighter and less obscuring, and maintains sight lines to emergency exits and signage for a longer period of time.
This visibility is particularly important in high occupancy or underground transport where each additional minute of visibility may save lives.
Toxic and Corrosive Gases – Halogen Acids vs Zero Halogen
Materials containing chlorine or bromine (such as PVC) emit hydrogen chloride and other acid vapors on combustion. Very poisonous to human beings and highly corrosive to sensitive electronics, circuit boards and metals. LSZH formulations do not contain halogens and thus significantly minimize toxic emissions and corrosive damage.
In a data center, control room, or instrumentation space that is a data center, this means the faster recovery after a failure, since the servers and control systems have been less degraded by acid.
Performance Implications of LSZH Jacket and Insulation Choices
Today’s LSZH materials are designed to provide high electrical and mechanical performance as well as fire protection. The direct impact of selection on real-world confined routing voltage handling, flexibility and durability.
Electrical Insulation and Voltage Rating in LSZH Cables
LSZH insulation, which often is either cross-linked polyethylene (XLPE) or modified polyolefins, should be capable of offering good dielectric and insulation resistance. As the temperature rises in a tightly packed conduit, typical operating conditions, quality compounds are capable of sustaining performance throughout the cable’s rated voltage.
The specifier should ensure that the selected LSZH insulation conforms to the appropriate standards for operating temperature range, short circuit performance and overall electrical characteristics.
Mechanical Flexibility and Bend Radius in Modern LSZH Designs
The stiffness of previous LSZH cables was somewhat comparable to PVC cables, but the newer formulations are much more flexible and can withstand much colder temperatures. This is important for cable pulling in narrow shafts, packed cable trays or when routing through a small installation.
Reliability and no installation damage is ensured with checking the manufacturer information about minimal bend radius, especially in dynamic applications or limited space.
Confined and Safety-Critical Installations – Where LSZH Choices Matter Most
Some conditions make it more critical to select the right LSZH jacket and insulation.
Buildings, Tunnels and Public Infrastructure
Cable routes are installed on or in evacuation routes in high-rises, hospitals, airports, train stations, or road tunnels. LSZH cables contribute to the visibility and reduce the amount of harmful gases, ensuring adherence to strict building and infrastructure fire-safety regulations.

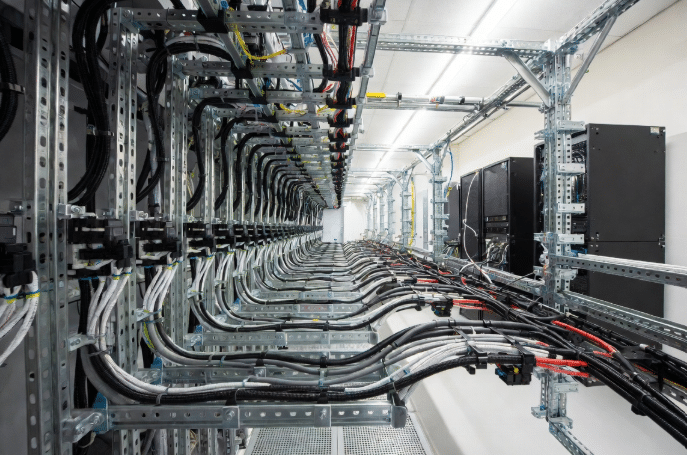

Data Centers, Control Rooms and Mission-Critical Equipment Spaces
These areas are especially at risk from smoke and corrosive gases due to their high cable density and the presence of sensitive electronics. LSZH solutions preserve valuable equipment and help restore quickly after any fire incident.
Transport, Mining and Marine/Vehicle Cabins
The spaces of rail cars, ship compartments, aircraft cabins and mining operations are all highly confined spaces with little ventilation. LSZH materials prevent secondary fire hazards due to dripping and ensure the breathable air quality in passenger or workers areas.
Design Trade-Offs – LSZH Jacket/Insulation vs Conventional Materials
LSZH compounds are generally filled with minerals to achieve flame resistance, which may increase the density and cost of the material, particularly in comparison to PVC. These differences influence the weight of the cable, the amount of pulling and the support required during long vertical or horizontal runs.
But often, the initial investment is dwarfed by the benefits in terms of safety and long-term reliability for regulated or critical use. Engineers need to consider these issues when making decisions on a project.
Limitations and Application Boundaries
In most cases, LSZH are suitable for use in extreme temperatures, however, under extreme conditions where high temperature is involved or large flexing, there may be special variants that are more suitable. Common operating temperatures are from -20C to +90C, but always check the exact operating temperatures with the manufacturer for your application.
Practical Specification Guidance – Choosing LSZH Jacket and Insulation for Confined Installations
Installations document.This is the hard copy version of the Practical Specification Guidance – Choosing LSZH Jacket and Insulation for Confined Installations document.
Key Parameters to Capture in Specs and RFQs
- Both jacket and insulation must meet Explicit LSZH (low smoke halogen-free) requirement.
- The electrical test standards, insulation thickness and voltage rating.
- Physical requirements (Smoke density, Halogen acid gas, Flame retardant)
- Mechanical properties such as flexibility, minimal bend radius, etc.
- The range of temperatures of operation and resistance to moisture or chemicals.
- Ask for full datasheets and third-party test reports to make sure that it complies.
This lesson will identify how the use of mapping jackets and/or different types of insulations change the risk and environment.
Mapping Jacket/Insulation Choices to Risk and Environment
Other materials may be used as auxiliary material if they meet overall project fire strategy for less critical auxiliary runs.
Avoiding Common Misconceptions When Selecting LSZH Jackets and Insulation
Not all “low smoke” cables actually have zero halogens. Do not accept a product solely based on marketing words and phrases—always check the explicit halogen-free claims and test data on the product.
Many performance shortcomings of previous generations of LSZH compounds have been addressed in modern compounds. Developing a decision based upon the manufacturer’s data and, if possible, sample trials in representative conditions results in better outcome.
The selection of jacket and insulation material for confined installations is a key engineering decision that needs to consider fire behavior, human safety, equipment protection, and operation reliability. Project teams ensure safer and more resilient cable infrastructure by perfectly matching materials to the specific risks and needs of each tunnel space or facility, whether it be a data center, public building or a transport application.
