Damage to the jacket material of industrial cables can mean the difference between life and death in the event of a fire. There are significant differences between the behaviour of the two types of cable under combustion: PVC can emit dense black smoke and corrosive halogen acid gases; halogen-free (including LSZH) cables are designed to emit significantly less smoke and no halogen gases. If you are an engineer or specifier involved in industrial automation, machine tools or building infrastructure, you want to know about these differences to strike a balance between everyday performance and real fire safety requirements. This guide will explain the actual practicality in terms of what cables you can choose and make your installation risks and requirements match.
PVC Cable Jackets – Strengths and Fire-Behaviour Drawbacks
PVC-jacketed cables have been proven to be reliable and serve industrial or commercial projects for many decades. They provide good electrical insulation, mechanical strength, flexibility in installation and cost-effective pricing to ensure adherence to project budgets.
Why PVC Became a Standard Cable Jacket Material
PVC is easy to process and has good dielectric properties and is resistant to typical mechanical stress in control panels, conveyor systems and general building wiring, and is preferred by manufacturers. For non-critical spaces on the factory or open lines of utility service, PVC is a solid, well-tested, and dependable material that electricians can work with.
PVC in Fire – Smoke, Toxic Gases and Corrosion
PVC produces a dense, smoky flame that quickly obscures vision when burned. It also releases hydrogen chloride gas that turns into hydrochloric acid when it comes in contact with moisture. This acid will burn after the fire has been out, causing damage to the lungs, eyes, electronic equipment, and sometimes even the structural metalwork. A fire in a cable tray inside a tunnel or control room can result in greater downtime and repair expenses in addition to the damage, due to the difficulty of getting out and the corrosive effects of the fire.
Halogen-Free and LSZH Cables – What Changes When Halogens Are Removed
Halogen-free cables don’t include any chlorine, bromine or other halogens in the jacket and insulation compounds. The most widespread of these are made from modified polyolefins or other formulations, and are known as LSZH (Low Smoke Zero Halogen).
Material Basics – Halogen-Free Compounds vs Halogenated Plastics
Halogen-free materials are made with different base polymers and flame-retardant packages in comparison to PVC, which is composed of a polymer structure that includes chlorine. This basic modification results in much more clean combustion effluents (less smoke, no halogen acid gases).
Smoke and Gas Behaviour of Halogen-Free Cables in Fire
Halogen-free and LSZH cables produce much less smoke density, which mean emergency lighting, exit signs and evacuation routes do not become obscured for as long. If there is no halogen acid release they eliminate immediate respiratory concerns and post-fire corrosion on sensitive equipment such as instrumentation, drives and PLCs.
Head-to-Head: Fire Safety, Smoke and Corrosive Gases – Halogen-Free vs PVC
Generally, PVC cables generate large amount of smoke and corrosive HCl gas. Halogen-free cables are low smoke and give zero halogen emissions, which helps to better protect people and property in a fire.
Visibility and Evacuation – Dense Smoke vs Low Smoke
In large buildings, tunnels, and corridors, dense PVC smoke can obscure the way to the exits in just minutes, making it difficult to make a rescue. Halogen-free designs will have a longer lifespan, enabling occupants to see clearly and evacuate in time.
Toxic and Corrosive Gases – Hydrogen Halides vs Zero Halogen
Fumes of acids formed when PVC is burned are catalysts that cause corrosion on circuit boards, contacts, and metal structures. Halogen-free cables do not, however, suffer from this as it allows the automation systems in use to be recovered after the incident and saves the value of the cable.
Where PVC Cables Still Make Sense
PVC is suitable for most common industrial applications where there is low risk of fire and good ventilation.
Typical Applications and Conditions Suited to PVC
- General wiring to outdoor factory floor or well-ventilated machine shop.
- Non-critical auxiliary circuits: short runs.
- Projects that are low occupancy with clear escape paths and have a cost sensitivity.
Advantages of PVC in Cost and Handling
PVC is available, flexible and accepted, and is less expensive than most other options. PVC will provide adequate protection for minimal exposure to confined spaces and sensitive electronics in projects where the risks are identified from a project risk assessment.
Where Halogen-Free Cables Are the Responsible Choice
Halogen-free cables can be the more forward thinking specification in environments with high occupancy, confined spaces, or where electronics are involved.
Public Buildings, Tunnels and Mass Transit
Low-smoke, low-toxicity cabling is becoming a necessity in various markets, such as subways, airports, hospitals, and office towers, for use in safe evacuation and for compliance with tighter fire codes.

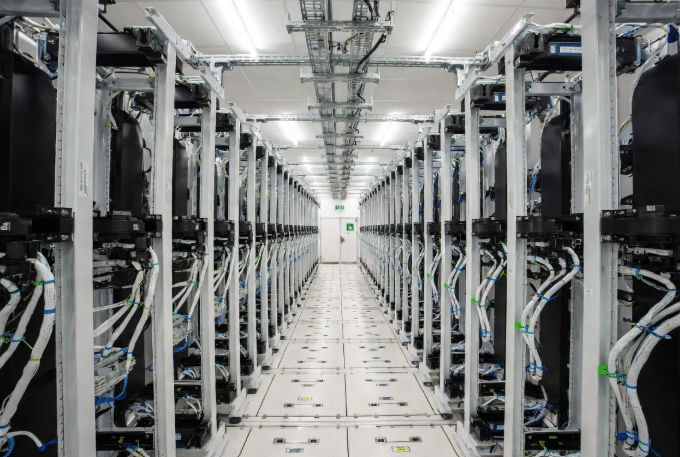

Data Centers, Control Rooms and Sensitive Industrial Installations
Halogen-free cables shield high-value servers, drives and instrumentation from corrosive damage, helping to ensure uptime and minimize expensive post-incident repairs.
Compliance-Driven Specifications and High-Responsibility Projects
There are a number of modern tenders and standards that specifically require LSZH or halogen-free cables in designated areas. These requirements become a costly rework later if not met at an early stage.
Practical Decision Framework – Choosing Between PVC and Halogen-Free
Consider the actual situation of each cable run, and don’t apply one material to all.
Key Questions to Ask About the Installation Environment
- Are there limited or restricted air changes in the area?
- How many people follow the escape routes that are close by?
- Is there electronic equipment or critical controls that are sensitive to temperature changes?
- What are the local codes and project specifications asking for?
Balancing Safety, Cost and Long-Term Asset Protection
Take into account total cost of ownership. Halogen-free cables may offer a slight premium, but can offer significant safety compliance, downtime and equipment preservation benefits in higher risk installations.
Common Misconceptions and Pitfalls in PVC vs Halogen-Free Selection
“Any Low Smoke Cable Is Good Enough” – Why Definitions Matter
However, there are “low smoke” cables that still contain halogens and may emit acid gases. Always check for true halogen-free / LSZH using technical datasheets.
Over- or Under-Specifying LSZH – Cost and Performance Implications
Indicating halogen-free at all locations can be too costly, and PVC in high-risk locations is a costly liability. Match the material to a given risk profile.
Closing Guidance – Treat Cable Jacket Choice as a Fire-Safety Design Decision
Choosing between halogen-free and PVC cables is an integral part of an informed fire-safety plan. Call in seasoned manufacturers early; see to the details of your project; record your reasoning. Whether standard PVC cable or high-temperature PVC, Hulk Electric can help you select the right industrial flexible cables for your specific environment.
