With industrial automation and robotics moving at such a rapid pace, it’s critical to make the right drag chain layout decisions to ensure your high-flex cable lasts for millions of cycles. Even with the highest quality continuous-flex cable from a manufacturer such as Hulk, you can prevent premature wear, minimize downtime, and maximize service life for your entire motion system by paying careful attention to fill factor, cable separation, and support practices.
Every engineer and machine builder is familiar with the fact that many times failures of cables in drag chains are not caused by the materials, but rather by installation and layout problems. Following accepted practices for interior sizing, separation and strain relief can transform good cables into a high-speed, high cycle system that will serve well in CNC machines, robotic arms and automated material handling equipment.
Why Layout Matters as Much as Cable Quality
The drag chain layout must follow a few mechanical rules even for the best servo, robot and industrial Ethernet cable from Hulk or else it can fail prematurely. Producers of energy chain systems, such as igus, highlight that there are a lot of incidents that happen in the field because of overfilled carriers, insufficient separation, or lack of strain relief, but not because of the construction of the cables.
Chain reliability is indeed a system characteristic. A good layout provides for free roam of cables with minimum friction and bending stress to the conductors, jackets and chain. Even the most flexible cables can take a beating from poor layouts, as they cause binding, abrasion and uneven loading.
Fill Factor and Clearance – How Full Is Too Full?
The key to creating a successful drag chain layout is getting the fill factor correct. Too much packing in the interior causes too much friction, increased heat and limited movement, resulting in a very short cable life.
Calculating Effective Fill Factor
The fill factor is the ratio between the aggregate cross-sectional area of your cables and hoses with the internal volume of the chain. Most experts suggest that cavity fill must be between 30% and 60-70% max, depending on the type of chain and its motion profile. This allows space for the cables to move just enough to not cause binding if traveling.
Always refer to manufacturer specific instructions, but the basic rule is space is important, allowing cables to move freely.
Clearance Around Each Cable and Hose
For electrical cables, the minimum outer diameter (OD) clearance is 10% and for hydraulic or pneumatic hoses, it is 20% or greater, around the entire length of the cable. To provide extra safety, add 10-20% to the effective OD in calculating space requirements. This clearance ensures that there is no pinching when bending and ensures that the movement is natural and no cable-on-cable abrasion occurs.
Separation Rules – Keeping Cables and Hoses from Fighting Each Other
Correct separation ensures cables don’t tangle, rub on one another or put unequal stress on one another when cycling fast.
Vertical Separation by Diameter (D1 + D2 Rule)
When the sum of two cable diameters (d1 + d2) is less than or equal to about 1.2 times the inner height of the compartment, use vertical separators or shelves. There must be a gap between the taller compartments so that cables can climb over each other, resulting in twisting and wearing.
Clearance Height Limit with Multiple Cables
Do not exceed 1.5 times the diameter of the cable for groups of similar cables. Too much vertical space will allow stacking and tangling to take place.
Separate by Diameter and Jacket Material
Don’t mix cables with different diameter or jacket material in the same compartment. This prevents smaller cables being crushed by larger ones, and prevents adhesion or differential movement between materials.
Avoid Stacking Without Horizontal Separation
Never stack vertical cables in high cycle applications without horizontal shelves/dividers. Multi-level separation maintains everything is in order and is moving along smoothly.
Weight Distribution and Support Across Chain Width
When the weight distribution is balanced, the chain does not lean to one side, thus causing side loads, friction, and wear on one side. Provide equal distribution of heavy hoses and lighter signal cables over the width. If two cables are used in a compartment, make sure they are properly separated to prevent vertical stacking.
Imbalanced layouts result in the carrier leaning against guides and putting tension on cables unevenly.

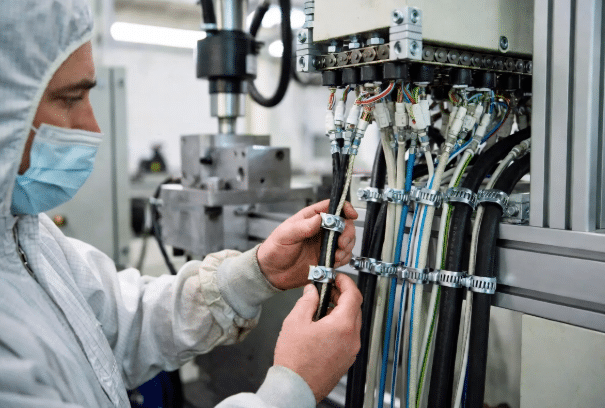

Strain Relief and Support at Fixed and Moving Ends
Strain Relief at Both Ends (and Exceptions)
Use strain relief at the fixed and moving ends in all but the simplest applications. This will make sure that bending takes place only within the designed radius of the chain and will stop axial tension being transferred to the cables. Sometimes, hydraulic hoses can only be relieved at the moving end as per manufacturer instructions.
Ensuring Bending Happens Inside the Chain Radius
Loose, but not too loose, to prevent cables from slipping. Do not over tighten clamps; they can pinch jackets or cause stress at the clamp.
Routing and Support Along the Travel – Avoiding Twisting and Misalignment
Tie the fixed and moving anchor points exactly on one plane to allow the chain to move in a single plane. For longer travels use guide troughs for the upper run to keep it supported and off touching. Even the finest interior design is undermined by misalignment creating lateral forces.
Layout Examples – Good vs Bad Drag Chain Filling
Good Layout: interior size cable fill factor 50-60%, interior cable grouping by type and diameter in separate compartments, interior cable symmetry, sufficient clearances, strain relief at ends. This system allows for millions of cycles with very little wear.
Bad Layout: Over-filled (75-80%) with mixed diameter cables, no separation, bad tilt due to heavy components in one end, and inadequate strain relief. Conductor corkscrewing, frequent failures, and jacket abrasion are all results.
Common Layout Mistakes That Shorten Cable Life
- Fill more than recommended, leading to internal friction and heat.
- Failure to separate cables – leading to tangling and abrasion between different types of cables.
- Lack of or improper strain relief, bending points that are forced.
- Misaligned anchors or unbraced long travels causing twisting and side loading.
Errors include jacket wear, broken shields or even a sporadic loss of signal from important automation equipment.
Practical Layout Checklist for Design and Installation Teams
- Measure the dimensions of chains and determine their size using suitable safety factors and clearances.
- Check that the fill factor is within 60% (or per manufacturer spec.).
- Ensure minimum 10% clearance around cables, 20% around hoses.
- Put in separators and shelves, depending on the size differences and material.
- Distribute the weight equally along the width of the chain.
- Use the proper strain relief on fixed and moving ends.
- Match all anchor points and offer the full travel support with guides.
- Give maintenance staff the pictures to show them the final layout.
Final Guidance – Design the Layout as Carefully as the Cable
The cable selection process can be more than doubled or tripled by engineering the drag chain layout, just as it was the cable itself. Respecting fill factor, separation and support best practices will ensure you preserve your investment in high performance cables and maintain a smooth production line.
