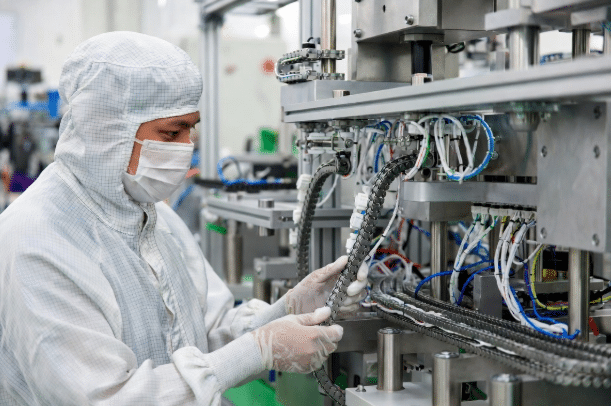

For packaging and assembly machines, custom drag chain cables are crucial in meeting the demands of high speed, short strokes. For these small systems, cables are required to withstand millions of fast cycles in a limited space while delivering power, signal integrity and mechanical reliability. At Hulk Electric, we design these high-flex solutions to ensure the smooth functioning of packaging lines and assembly automation with minimal downtime.
This guide is based on our 20+ years of experience working with OEMs and integrators. It addresses the exceptional mechanical stresses, custom design options, integration of drag chains and the validation processes that provide exceptional long-term performance in real packaging and assembly use.
Why High-Speed, Short-Stroke Axes Are a Special Case
Long traintravel gantries are very different from packaging/assembly machines. Axes often have very short strokes (usually tens of centimeters to a couple of meters) and very high speeds, accelerations and cycle rates. Consider heads that can move from part to part at thousands of movements per minute, carton erectors, sealing jaws, or indexing tables that rotate hundreds of times a minute.
The combination of these conditions places high mechanical strain on the cables, which bends, twists and vibrates constantly due to the slight misalignment, bending and vibration of the cable. Here rigid, long-travel cables are unnecessarily expensive and bulky, and standard flexible cables are prone to early failure. These parameters can be used to design custom drag chain cables that maximize flex life, minimize chain size and enhance machine efficiency.
Motion Profile and Envelope – Understanding the Mechanical Demand
The most important step toward selecting the right cable is to understand the specific movement profile and physical limitations.
Short Stroke, High Speed and Acceleration
The high acceleration and fast reversals, even with relatively short distances traveled, exacerbate fatigue in conductors and jackets. Cables are subjected to repeated tight radius bending and sudden stops which can cause corkscrewing or strand breakage if they are not constructed properly. The high flexible cables are optimized for short-stroke, high cycle applications and feature stranded and lay lengths optimized for this occasion.
Compact Machine Envelopes and Bend Radius Constraints
In addition to the high density of packages, packaging machinery frequently has to be installed and installed into very small spaces with smaller bend radii and less drag chain. Because of the cable’s minimum bend radius (MBR), cracking can occur in the jacket or damage to the conductor can occur if the minimum bend radius is exceeded. Custom designs from Hulk mean a perfect match of the diameter and flexibility of the cables to the requirements of the chain, guaranteeing the best performance without affecting machine layout.
Custom Cable Design Considerations for Packaging and Assembly
High speed packaging requires a generic catalog cable that’s not always there. The key differentiator is customisation.
Conductor and Stranding for High Cycle Counts
The fine-stranded, high flexibility copper conductors are specially bundled to withstand high fatigue, even after millions of short cycles. This design allows for minimal weight and diameter, and maximum durability, which is important when every gram matters on the fast axes for acceleration and energy use.
Core Arrangement and Shielding for Mixed Power and Signals
Today, servo power, encoder feedback, industrial Ethernet and sensors are combined in the same carrier for modern packaging lines. These elements are combined efficiently in our custom hybrid cables:
- Special purpose power cores for motors
- SWP cables for encoders and Fieldbus
- Overall and individual pair protection for better EMI performance.
This method will reduce the number of cables, decrease fill factor and make routing easier than running multiple standard lines.
Jacket and Insulation Materials for Clean and Harsh Environments
Packaging for food products or washdown requires jackets that are chemically resistant to harsh cleaners, oils and temperature fluctuations. Hulk provides PUR, TPE and halogen-free compounds that are custom colour coded. All these materials are flexible between high and low temperatures and comply with the required hygiene and safety standards.
Drag Chain and Layout Strategies for High-Speed, Short-Stroke Motion
The proper selection and installation of a chain is as critical as the chain!
Choosing Compact Plastic Drag Chains
Lightweight plastic drag chains have a number of advantages in packaging, such as low noise, corrosion resistance, and high-speed performance. Choose chains that meet your acceleration requirements and have bend radii that correspond to custom cable. Hulk has a very good relationship with clients, and is able to suggest suitable carrier systems.
Fill Factor and Separation in Tight Spaces
Use recommended fill ratios (usually ≤60%) and clearances. Installing internal partitions to keep power lines and signal lines apart from each other eliminates crosstalk and reduces wear when speed cycling. Proper separation is especially vital in compact assemblies where space is at a premium.
Strain Relief and Vibration Management
Strong strain relief at both ends of fixed and moving parts to prevent axial pull and vibration into the bend area. High speed service life is further extended by secure mounting and vibration dampening.
EMC and Signal Integrity in Compact Packaging Machines
Electromagnetic compatibility is a major concern when working with dense electronics and fast moving axes.
Separating Power and Signal within the Chain
Minimized interference with physical separation using chain dividers or separate carriers. Consistent geometry with predictable performance through custom hybrid designs.
Shielding and Grounding for High-Speed Motion
Durable braided or hybrid shields are more resistant to flexing over long periods of time than foil shields. Noise, signal dropouts and intermittent faults are typical issues with packaging lines, which are eliminated with proper 360° terminations and grounding schemes.
Application Examples – Custom Cable Strategies in Packaging and Assembly
High-Speed Horizontal Packaging Axis
In the case of short horizontal strokes, we are designing compact hybrid cables that are composed of a combination of servo power and encoder signals in a small radius plastic chain for sealing jaws or cartoners. A rugged jacked made of PUR material will protect against incidental oil exposure and a radiused strain relief will help prolong the life of your jacket.
Vertical Pick-and-Place Head
For vertical axes, light weight, highly flexible constructions with minimum chain size are suited. High Flex Stranding and Clear Separation of Power: Enable speedy up/down motion without causing an increase in inertia, which can slow cycle times.
Rotating and Oscillating Assemblies with Short Linear Segments
When rotation, coupled with short linear travel, occurs we use continuous-flex sections and elements that are torsion-rated. Custom grouping will avoid tangling and preserve cable motion limits. .
When to Justify Fully Custom Drag Chain Cables
High economic value can be achieved if standard components are unable to meet cycle life, packing space, multi-function requirements, or environmental requirements. The initial engineering investment may be quickly recouped with smaller chains, easier installations, less maintenance, and increased machine reliability.
Design and Validation Process for Custom Packaging/Assembly Cables
Hulk is structured:
- Record detailed motion profile (stroke, speed, acceleration, expected cycles) and environmental factors.
- Identify the electrical requirements with respect to voltage, current, protocol and EMC.
- Configures conductor stranding, shielding and jacket compounds as needed.
- Confirm in fast drag chain tests under simulated operating conditions.
We have internal testing capabilities and certifications to meet OEM validation requirements.
Final Guidance – Tailor Drag Chain Cables to the Motion and Machine, Not Just the Catalog
Cabling systems are subjected to special stresses in high-speed, short-stroke packaging and assembly machines. Best performance is achieved by designing drag chain cables as a complete subsystem, rather than picking from a catalog, that’s exactly matched to your motion profile, layout, and performance requirements.
Our knowledge and experience in the field of high flexible cables, servo motor cables and custom engineered solutions enables packaging OEM and integrators to realize better uptime and efficiency. Send us your machine details, and we will design drag chain cable solutions specific to your application!
