The key to smooth, million-cycle operation of cable carriers is the selection of the right continuous-flex design, not just for performance, but also to avoid the high cost of downtime that can be caused by corkscrewing, conductor fatigue, or jacket wear. However, in drag chain applications, where the cable is constantly being bent, twisted and accelerated at each shift, the actual lifespan of the cable depends more on its internal construction than its reported flexibility.
Details, details, details: As engineers, we know that it is the meticulous details we take for granted every day at Hulk Electric that make good cables into reliable cables; conductor stranding, precise pitch (lay length), bundled versus layered cores, strain-relieving centers, and supporting jackets are just a few. This guide explains these principles and helps you determine which options are available, ask more intelligent questions of suppliers and state the drag chain cable that is best suited to your motion profile.
Stranded Conductors – The Foundation of Flexibility
All continuous-flex cables begin with their conductors. Solid wires are suitable for static use, but become quickly stressed when repeatedly moving. Stranding alters stress by spreading it out over many thin wires.
Why Fine-Stranded Conductors Are Required for Continuous Flex
Fine stranding refers to the use of wire of very small diameter and is often used in several dozen or hundreds to make a conductor. Strands of higher counts, e.g., 19, 49, 133 or more, will move slightly more during bending, and will therefore be less fatigued than coarser constructions.
With cable carrier systems, this is necessary to avoid the single strands of the cable from being over-extended on the outside of the bend to be compressed on the inside. For high speed or applications with small bend radius, we recommend using extra-fine stranding for these applications, coupled with correct pitch and core support to prevent kinking.
Stranding Pitch (Lay Length) and Its Impact on Flexibility and Strength
Stranding pitch (lay length) is the distance from one full turn of the conductor to another. The shorter the lay length, the more flexible the cable, as the wires will be able to move around more, but the higher the amount of steel or thickness of cable.
When it comes to continuous-flex cables in cable carriers, the pitch is carefully considered, tight enough for movement, but optimized to ensure the tensile strength and keep costs under control. Smooth pitch direction ensures no unwanted torsion can twist an entire chain of the cable.
Bundled vs Layered Core Construction in Continuous-Flex Cables
Core arrangement is a distinction between basic flexible cables and cable carriers’ cable built designs.
Layered Stranding – Advantages, Limitations, and When It Fails in Motion
Layered construction: cores are stacked in layers, concentric layers around the center. Cost effective and adequate for occasional flexing or fixed wiring. However, during continuous motion, outer layers do travel further during bending than the inner ones. This causes unequal pulling and compression that can cause drag chains to corkscrew and wear out too early.
This is a method employed by many general purpose “flexible cables” that aren’t suitable for heavy duty carrier applications.
Bundle Stranding Around a Strain-Relieving Center Element
A bundled construction is a construction in which conductors are grouped together into smaller sub-bundles, which are then twisted symmetrically around a central element. When bending, each bundle alternates from an inner and outer position, counteracting the forces naturally.
This design ensures the stability of the cable for millions of cycles, which is essential for electrical stability in cable carriers for the servos, sensors and Ethernet lines.
Pitch Direction and Symmetry Across Bundled Cores
Opposing pitches are used between layers or bundles to eliminate torsional forces. A coordinated lay length provides predictable bending of the cable, with no twist. Poor symmetry will cause the cable to bend in the carrier which will lead to abrasion and signal problems.
The Role of the Strain-Relieving Center Core and Inner Jacket
Internal support elements turn flexible bundles into robust assemblies.
High-Tensile Center Elements as Mechanical Backbones
A high-tensile fiber or cord at the center absorbs bending forces and prevents inner conductors from collapsing inward. Without it, cores migrate over time, creating voids and uneven stress distribution that shorten flex life in cable carriers.
Extruded Inner Jackets vs Loose Fillers and Wraps
An extruded inner jacket fills gaps between bundles, maintains roundness, and creates a stable base for shielding. Unlike loose fleece wraps, it reduces internal micro-movements and keeps the structure intact during high-acceleration cycles. In continuous-flex cable construction for cable carriers, this layer often proves essential for long-term performance.
Shielding and Layered Construction for Continuous Motion
Shielding serves both electromagnetic and mechanical roles.
Braided Shield Design and Braid Angle in Flexing Cables
High-coverage braided shields (85-95%) are able to repeatedly bend without splitting. The braid angle has an impact on EMI protection as well as the interaction between the shield and the inner jacket in motion. Good shielding design is important in noisy industrial applications powered by VFD drives.
Layer Stack – From Conductors to Shield to Outer Jacket
The layers function together: Stranded and bundled cores in the inner jacket, shield, outer jacket. The integrated continuous-flex cable design offers mechanical stability and excellent power and data transfer in cable carriers.
Outer Jacket and Contact Surface with the Cable Carrier
The outer jacket is in direct contact with the chain.
Jacket Materials and Interaction with Chain Surfaces
Low friction, low abrasion and chemical resistance is provided by PUR, TPE or special compounds. The jacket should move easily in long travel applications and be resistant to the oils and coolants found in machine tools.
Matching Outer Jacket Stiffness to Stranding and Application
The jacket should match the stiffness of its inner cord and stranding structure. If it’s too stiff, it will strain the conductors, and if it’s too soft, it won’t hold up the core. Tuned according to stroke length, speed and environment to achieve optimum drag chain operation.
How Poor Internal Construction Shows Up as Field Failures
Construction shortcuts directly relate to real-world problems.

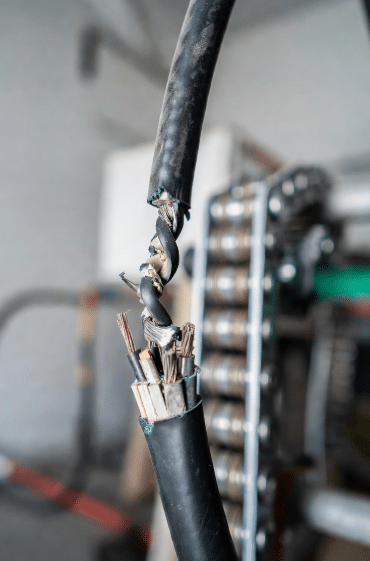

Corkscrewing, Core Migration, and Ovalization
The cables used for layering solutions are frequently twisted and flattened in carriers when they lack center support. You’ll experience uneven wear, stretching and binding.
Conductor and Shield Breakage in Continuous Motion
Coarse stranding, unbalanced pitch or missing inner jackets causes broken strands and shield wires after less cycles than expected. Those failures cause loss of production and necessitate complete cable replacement.
Practical Design Checklist for OEM Engineers and Cable Specifiers
When considering the datasheets or RFQs use these questions:
Questions to Ask About Stranding, Pitch, and Core Construction
- What type and how many strands are on the conductor?
- Is the cable made of layers or bundled cores inside of it?
- Do you have a documented high tensile strain-relieving center?
- Does it have an inner jacket that has been extruded?
- How to design lay lengths and pitch direction for continuous flex?
Aligning Construction Choices with Motion Profile and Environment
Select the entire construction depending on the actual travel distance, bend radius, speed and exposure to oils or temperature. Use this knowledge in conjunction with application-specific testing for optimum performance.
Final Guidance – Design the Inside of the Cable for the Motion You Expect
The type of cables that make it through the cable carriers on your hands depend on your internal construction selections, such as stranding, pitch, bundling, center elements, and jackets. Consider these specifications as primary and not an afterthought. Collaborate with manufacturers that provide cross-section information, test data and custom options specific to your equipment.
Our continuous-flex cables are based on these principles in our servo, motor, robot and industrial Ethernet cables. Provide your motion parameters and we’ll help you determine or design the most appropriate construction for long-life, reliable performance.
