Drag chain cable (also called energy chain or cable carrier cable) can withstand millions of times of bending in severe environment of industrial automation and robotics. Chain cable failures can lead to production delays, unexpected shutdowns, safety hazards and expensive repairs. For over 20 years, at Hulk Electric, we have seen many failures in the field with high-flex cables used for continuous motion. This guide assists maintenance engineers, reliability teams, and OEMs in learning about frequent symptoms, working deep into the root causes, and finding permanent solutions.
By grasping these patterns, the cable life is extended and overall system reliability is boosted in drag chain systems because reactive problems become preventive.
In continuous flex applications, drift is the primary reason drag chain cables fail.In continuous flex applications it is drift that causes the failure of drag chain cables.
Why Drag Chain Cables Fail in Continuous Flex Applications
Drag chains are used in linear motion systems for cable protection, but have the potential to amplify motion stresses when the cable, carrier or installation are not optimised. Even high flex cables from manufactures like Hulk have been built for millions of cycles, and failures happen because of mismatches between the manufactured specimens and the real world.
The most general causalities are:
- Failure to use dynamic or flexible cables in dynamic applications
- Not complying with minimum bend radius specifications
- Too much twist, misalignment or overloading the chain
- Incompatibility of material with oils, coolants, temperatures, and chemicals
- Inappropriate strain relief and installation methods
There are usually three types of failure: cable, carrier or system. Proper diagnosis begins with seeing the symptoms, and correlating them with the motion patterns.
Symptom-Based Diagnosis – Start with What You Can See and Measure
Troubleshooting starts with a systematic observation and not replacing the item immediately. In operation, walk the cable path, and note:
- At what point in the journey does the difficulty occur (at the bend zones, at the fixed ends, or in the middle)?
- Is it related to high speed, direction change or particular positions?
- Is there any visible damage, deformation, discoloration or odd noises?
Basic tools are a multimeter for checking continuity and insulation resistance, a flashlight to check in detail, and your machine’s alarm log for checking the encoder or fieldbus. Take photos of all work done for future reference.
Let’s consider the top common failure modes.

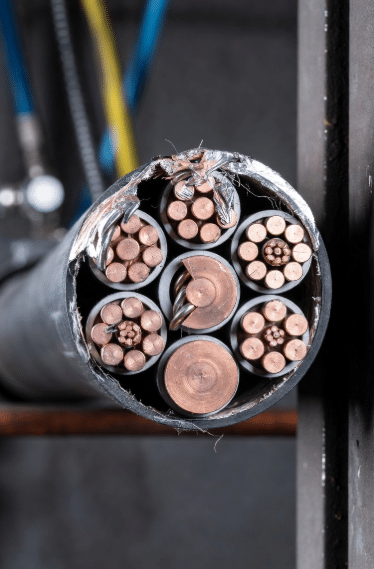

Failure Mode 1 – Loss of Continuity (Broken Conductors)
How It Looks in the Field
Intermittent signal loss, random PLC resets, encoder faults, or complete open circuits that worsen with movement. The outer jacket may appear undamaged, but internal conductors have fatigued and broken.
Underlying Mechanism and Root Causes
Repeated bending causes conductor fatigue, especially in coarse-stranded or non-optimized constructions. Root causes often include:
- Static-rated cables in continuous flex service
- Bend radius too tight for the cable design
- Insufficient center support or poor stranding
- Excessive pulling force or torsion
Diagnostic Steps
- Perform continuity testing while manually flexing suspect sections.
- Dissect the cable at high-stress points to inspect strand breaks.
- Verify the cable’s datasheet against actual cycle count, bend radius, and travel distance.
Hulk’s high-flex drag chain cables use finely stranded conductors with optimized lay to resist this fatigue.
Failure Mode 2 – Insulation Damage and Short Circuits
How It Looks in the Field
Nuisance trips, cross-talk, or shorts between conductors. Look for cracked, abraded, or discolored insulation when the jacket is opened.
Underlying Mechanism and Root Causes
Constant flexing leads to material fatigue, while internal abrasion occurs in overfilled or poorly segregated chains. External rubbing against chain components accelerates damage.
Root causes: Incompatible insulation for the environment, mixed cable diameters without separators, or mechanical pinching.
Diagnostic Steps
- Carefully strip the jacket in affected areas and examine core insulation.
- Compare high-motion vs. static sections of the cable.
- Audit chain fill percentage (typically ≤80% capacity with proper separation).

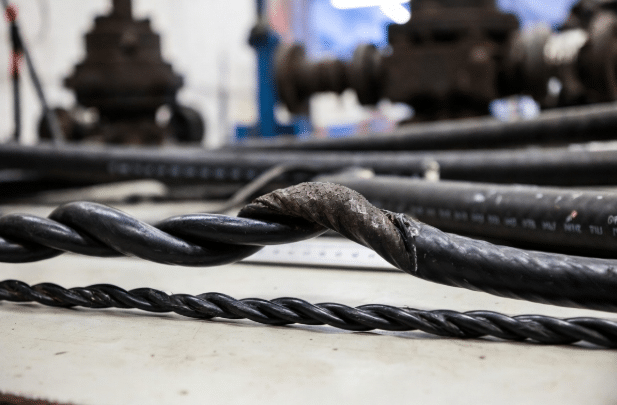

Failure Mode 3 – Corkscrewing and Cable Deformation
How It Looks in the Field
The cable develops a permanent spiral or “pigtail” shape, increasing drag, noise, and eventual jamming in the carrier.
Underlying Mechanism and Root Causes
Torsional imbalance from layered (vs. bundled) constructions, incorrect lay directions, or applications introducing twist beyond pure bending.
Diagnostic Steps
- Place the cable on the ground that has been pulled out (if it spirals there is torsion).
- Check cable construction specifications (bundled cores around center core are best).
- Determine whether the machine motion has rotational components.
Failure Mode 4 – Jacket Abrasion and Wear-Through
How It Looks in the Field
Smooth spots, thinning or total failure of outer jacket, revealing shields or cores.
Underlying Mechanism and Root Causes
Grasping of chain crossbars, guides or debris. It is aggravated by soft jackets or overfilled/misaligned carriers.
Diagnostic Steps
- Check for buildup, sharp edges or burrs on the interior of the chain.
- Take measurements of actual bend radius and compare to recommendations.
- Thinking about replacing with abrasion resistant PUR or TPE jackets.
Failure Mode 5 – Jacket Swelling, Cracking and Environmental Damage
How It Looks in the Field
Swelling makes for soft and enlarged jackets, brittle cracks at bend points.
Underlying Mechanism and Root Causes
Oils/coolants, or temperatures, other than the material rating. Specialized compounds are likely to outperform PVC in extreme conditions.
Diagnostic Steps
- Know which chemicals are used for exposure and refer to cross-referencing compatibility charts.
- Record actual operating temperatures (peak temperatures).
- Take tests samples from various zones.
Hulk’s high temperature + halogen free versions are excellent for these high demand applications.
Failure Mode 6 – Shielding Losses and EMC Problems
How It Looks in the Field
There may be more electrical noise, more communication problems or EMI problems that coincide with machine movement. Physically: frayed braids or poor terminations.
Underlying Mechanism and Root Causes
Thermal fatigue due to high flex service, foil-only or poor grounding.
Diagnostic Steps
- Test continuity of the shield along its length.
- Discuss termination for secure, low impedance connections.
- Make connections between problems and adjacent large power equipment or VFDs.
System-Level Failures – Cable, Carrier or Both?
The full system is responsible for many problems. Even high-end cables are ruined by pinching or overstressing with an improperly sized or positioned drag chain. Check the carrier for wear, gliding support and installation (supported/gliding). The tendency to overfill is common to many of the failure modes.
Root Cause Patterns – Mapping Failures Back to Design and Installation
The majority of failures are due to:
- The selection of the cables (Static vs Continuous-flex rated)
- Know the geometry and size of chains.
- Installation practices (strain relief, segregation, torsion control)
- Environmental mismatches
Practical Diagnostic Checklist for Maintenance and Design Teams
Apply this on each set:
- Take a picture of the cable in position and out of position.
- Calculate the failure location on a motion profile.
- Reconfirm flex rating, bend radius and expectations for cycling.
- Inspect for chain fill, separation and alignment.
- Evaluate site suitability for materials.
- Record for future ordering.
Final Guidance – Turn Every Failure into a Better Drag Chain Design
Cable problems that keep happening are seldom random, and they are a clue to change selections, layouts and practices. Teams using structured diagnosis minimise downtime and total ownership costs. Our drag chain cables, robot cables and servo cables manufactured at Hulk Electric are customised, extensively tested and designed to meet real life requirements of motion.
Tell us about your application (how far you are traveling, how many cycles, where you are going, and any obstacles you are facing), and we’ll be able to suggest the best, reliable solutions for your needs. Talk to us about your next project.
